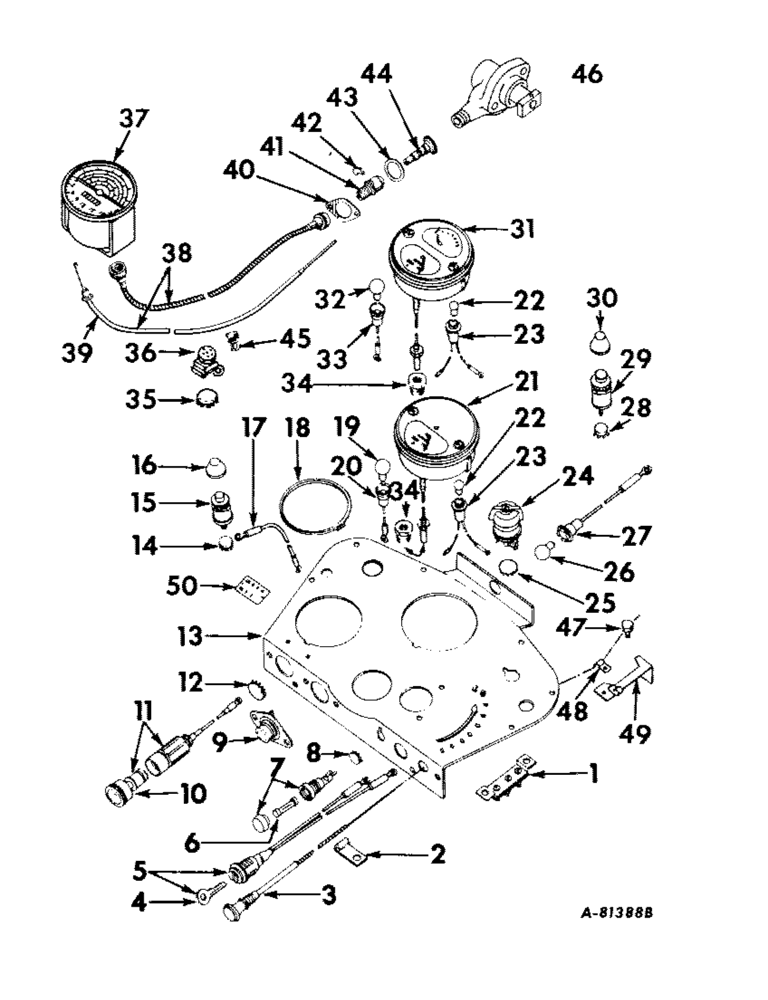

Запчасти Case IH 2424 (160) - ENGINE CONTROLS INSTRUMENTS AND PANEL, ENGINE CONTROLS AND INSTRUMENTS Engine Controls

1

378336R91

BLOCK

ASSY, junction

1шт.

109084

NUT,1/4"-20, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

2

350740R1

CLIP

choke control, gasoline engine tractors

2шт.

3

371796R91

CONTROL

ASSY, choke, gasoline engine tractors

1шт.

3

381047R91

CONTROL

ASSY, shut-off, diesel engine tractors

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

4

382458R1

KEY

switch

1шт.

5

379594R92

SWITCH

ASSY, ignition key

1шт.

365502R1

NUT

switch mounting

1шт.

375431R1

LOCK WASHER

switch mounting nut

1шт.

6

9426333

FUSE,15 Amp, Type 3AG

cartridge type AGC 15, tractors w/electric lighting

1шт.

7

376852R91

HOUSING

ASSY, fuse, tractors w/electric lighting

1шт.

8

432466

BEVEL PINION

PLUG, 17/32 cr-pltd button, tractors w/o electric lighting

1шт.

9

366317R91

IGNITION SWITCH

SWITCH ASSY, push button

1шт.

120611

NUT,#10 - 32

10-32 C-Z sq

2шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 C-Z rd-hd slt mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

10

378781R91

PACKAGE

UNIT, pop-out

1шт.

11

378338R91

CIGAR LIGHTER

CIGARETTE LIGHTER PARTS ACCESSORY

1шт.

12

432281

HOLE PLUG BUTTON,29/32"

PLUG, 29-32 cr-pltd button, tractors w/o cigarette lighter

1шт.

13

388815R11

PANEL ASSY, instrument

1шт.

369916R2

SCREW,Hex Wshr Hd, #10 - 24 x 7/16"

instrument panel mounting

10шт.

14

374342R1

PLUG

horn switch hole, tractors w/o electric horn

1шт.

15

373611R91

IGNITION SWITCH

SWITCH, horn, less cap

1шт.

16

371487R1

CYLINDER END CAP

CAP, horn switch dust, gray

1шт.

17

359380R91

CABLE

ASSY, horn switch to junction block

1шт.

18

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

19

A14553

BULB

LAMP, no. 57 12-volt, instrument light, tractors w/electric lighting

1шт.

20

376853R91

SOCKET

ASSY, instrument light, tractors w/electric lighting

1шт.

21

376862R93

CLUSTER

ASSY, gauge, gasoline engine tractors w/o electric fuel gauge

1шт.

21

378459R93

METER

CLUSTER ASSY, gauge, disel engine tractors w/o electric fuel gauge

1шт.

22

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12-volt, oil & amp tellite

2шт.

23

376856R91

SOCKET

ASSY, oil & amp tellite

2шт.

24

376851R91

LIGHT SWITCH

SWITCH ASSY, lighting, tractors w/electric lighting

1шт.

25

432600

PLUG, 23/32 cr-pltd button, tractors w/o electric lighting

1шт.

26

A14553

BULB

LAMP, no. 57 12-volt, instrument light, tractors w/electric lighting

1шт.

27

376853R91

SOCKET

ASSY, instrument light, tractors w/electric lighting

1шт.

28

374342R1

PLUG

glow plug switch hole

1шт.

29

393209R91

SWITCH

glow plug, less cap

1шт.

30

373612R1

CAP

glow plug switch dust, red

1шт.

31

376854R93

CLUSTER

ASSY, gauge, gasoline engine tractors w/electric fuel gauge

1шт.

31

377106R93

CLEANER

CLUSTER ASSY, gauge, diesel engine tractors w/electric fuel gauge

1шт.

32

A14553

BULB

LAMP, no. 57 12-volt, tractors w/electric fuel gauge

2шт.

33

376853R91

SOCKET

ASSY, instrument light, tractors w/electric fuel gauge

2шт.

34

51510D

BUSHING

capillary tube lamp installation

1шт.

35

454181

PLUG, 1-3/64 cr-pltd button, glow plug indicator hole

1шт.

36

703557R92

RESISTOR

ASSY, glow plug indicator, diesel engine tractors, composed of (1) coil, (1) nut 3043500R1, (2) nut 3043504R1, (3) screw 3043505R1, (2) washer 3043502R1, (2) washer 3043503R1, (1) washer 3043501R1

1шт.

37

388893R91

SPEEDOMETER

TACHOMETER ASSY, gasoline engine tractors

1шт.

37

388893R91GV

TACHOMETER

Value, Speedometer

1шт.

37

388894R91

TACHOMETER

SPEEDOMETER TACHOMETER ASSY, diesel engine tractors

1шт.

38

388524R91

CABLE

SHAFT ASSY, flexible drive, diesel engine tractors

1шт.

38

150938R91

CABLE PULLING GRIP

SHAFT ASSY, flexible drive, gasoline engine tractors

1шт.

39

150936R91

CORE

ASSY, flexible drive, gasoline engine tractors

1шт.

40

363817R1

RETAINER

PLATE, connection housing, gasoline engine tractors

1шт.

435429

SCREW, 10-32 x 9/16 slt-rd-hd mach Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

41

369692R1

HOUSING

connection, gasoline engine tractors

1шт.

42

369693R1

SUPPORT

RETAINER, drive gear, gasoline engine tractors

1шт.

43

363814R1

GASKET

connection housing, gasoline engine tractors

1шт.

44

369695R91

GEAR

ASSY, drive, gasoline engine tractors

1шт.

45

361774R1

CLIP, flexible drive shaft

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

46

3042474R91

ANGLE

BOX ASSY, drive gear, diesel engine tractors

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

47

388622R1

SWIVEL, fuel shut-off cable, diesel engine tractors

1шт.

363881R1

RETAINER

swivel

1шт.

32592D

WASHER

WASHER, swivel

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

8-32 x 3/8 slt-hd mach

1шт.

48

275965R1

CLAMP

shut-off cable

1шт.

436570

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 slt-pan-hd mach

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

49

388623R11

BRACKET, shut-off control

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

50

2752614R1

PRODUCT GRAPHIC, gear shift

1шт.

50

2753113R1

PRODUCT GRAPHIC, gear shift, tractors w/forward and reverse transmission

1шт.

9402597

RIVET, 1/16 x 3/16 mushroom-hd

2шт.

61813D

CLIP

capillary tube

2шт.
