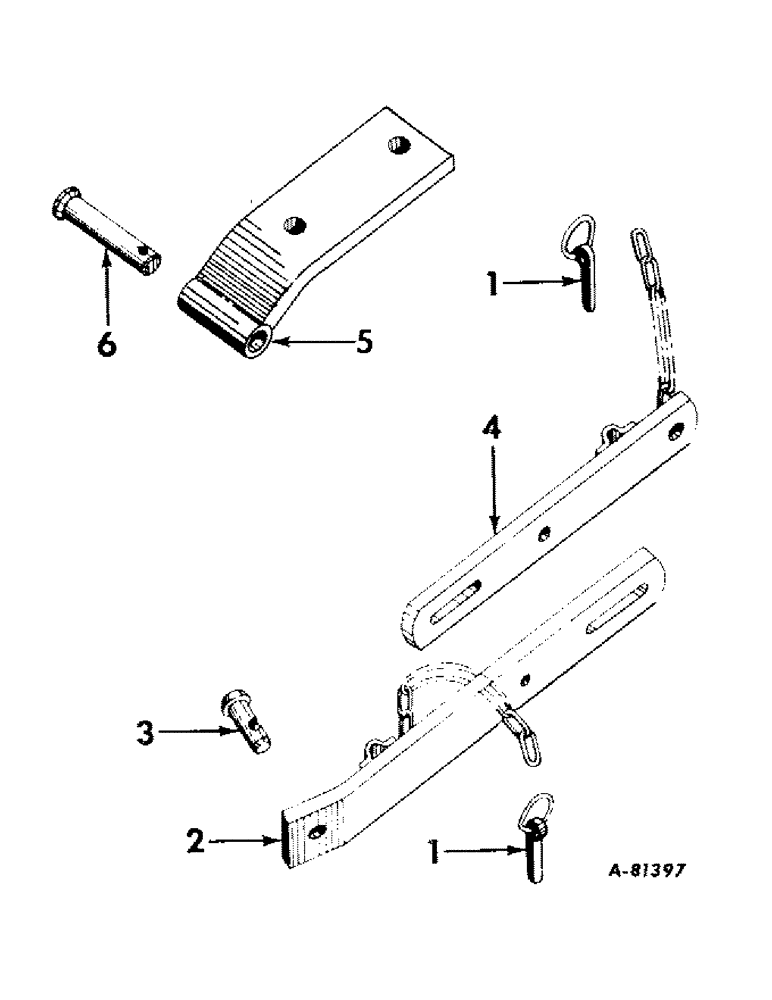

Запчасти Case IH 2424 (155) - DRAWBARS AND HITCHES, ADJUSTABLE CHECK LINK, TRACTORS WITH THREE POINT HITCH Drawbar & Hitches

NSS

NOT SOLD SEPARAT

ATTACHMENT, adjustable check link, 3070382R91

1шт.

1

517758R91

SPLIT PIN/SAFETY PIN

PIN ASSY, implement

4шт.

2

707069R12

ADJUSTER

ASSY, check link outer

2шт.

102637

NUT,1/2"-13, G5

4шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

SCREW, 1/2-13 x 1-1/2 hex-hd cap

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

4шт.

3

707072R1

PIN

check link attaching

2шт.

4

707068R12

ADJUSTER

ASSY, check link inner

2шт.

5

3044312R91

BRACKET

ASSY, check link

2шт.

17956R1

BOLT,Hex, 5/8" - 11 x 7 3/4"

SCREW, 5/8-11 x 7-3/4 hex-hd cap

4шт.

6

3044315R1

PIN

check link bracket

2шт.
