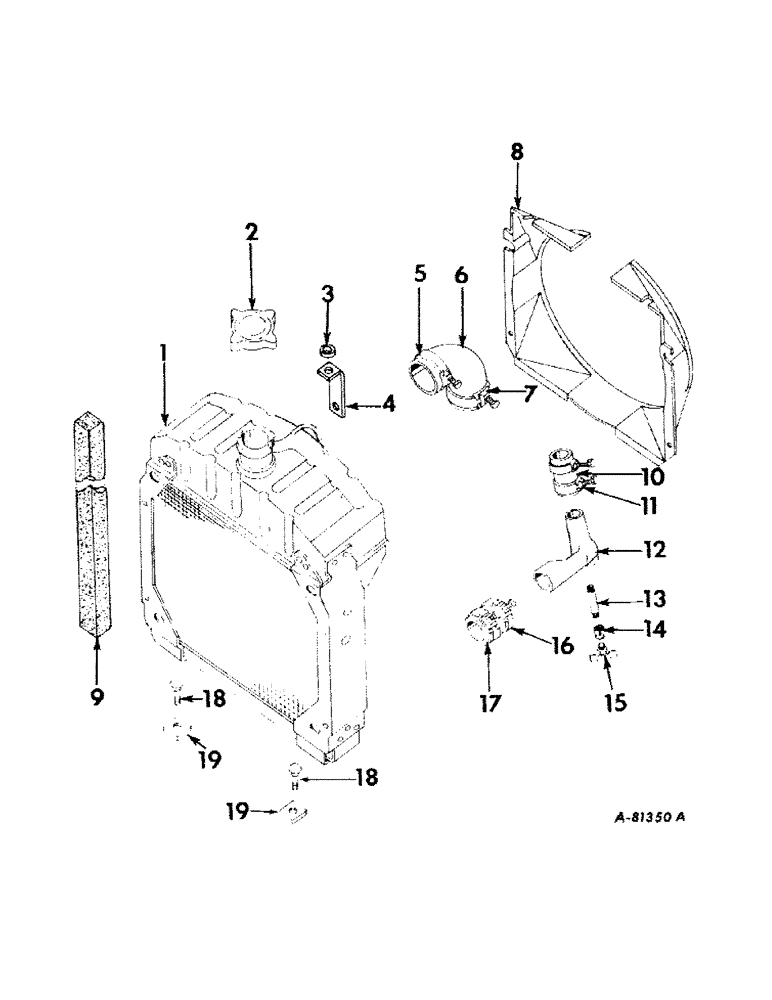

Запчасти Case IH 2424 (043) - COOLING SYSTEM, RADIATOR AND CONNECTIONS, CARBURETED ENGINE TRACTORS COOLING SYSTEM

1

388458R91

RADIATOR ASSY

1шт.

2

393229R91

CAP

ASSY, radiator filler, will work for 378289R92

1шт.

3

132469R1

RUBBER WASHER

BUSHING, radiator support rubber

1шт.

4

388461R1

BRACKET, radiator support

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

Q1500

WASHER

11/32 x 1-1/4 x 16 ga

1шт.

231-1435

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 ESNA stop

1шт.

5

39226H

CLAMP

radiator inlet hose upper

1шт.

6

369397R1

HOSE,2.38" ID, 2.50" ID x 4.00", SAE 20R4 Class R Grade -1

radiator inlet elbow

1шт.

6

369397R1GV

RADIATOR HOSE

Value, Elbow, Radiator Inlet

1шт.

7

39233H

CLAMP

radiator inlet hose lower

1шт.

8

369399R1

SHROUD

HOUSING, fan

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 1/4-28 x 1/2 hex-hd cap

2шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, 1/4-28 x 3/4 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

384210R1

GASKET, radiator side baffle

2шт.

10

387721R1

HOSE,1.38" ID x 4.00", SAE 20R1

Water Pump Inlet 1.38" ID x 4.00", SAE 20R1

1шт.

11

39142H

COLLAR CLAMP

CLAMP, water pump inlet hose

2шт.

12

369396R1

ELBOW

radiator outlet

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8 sq-soc-hd pipe

1шт.

13

12469R1

HYD CONNECTOR

NIPPLE, 3/8 x 4-1/4 pipe, radiator drain pipe

1шт.

14

111644

COUPLING

3/8 x 1/4 reducing pipe

1шт.

15

144569

COCK, DRAIN

COCK, 1/4 type C drain

1шт.

16

29970D

CLAMP

radiator outlet hose

2шт.

17

20075DB

RADIATOR HOSE,50.80 mm ID x 57.20 mm, SAE 20R4 Class R

50.80 mm ID x 57.20 mm, SAE 20R4 Class R

1шт.

18

352632R1

BOLT,Sq Nk, 7/16" - 20 x 1 1/8"

radiator mounting

2шт.

446220

WASHER

1/2 x 1-1/8 x .083

2шт.

18601R1

NUT,7/16"-20, GC

7/16-20 ESNA stop

2шт.

19

47240D

PAD

radiator

2шт.
