Запчасти Case IH 2424 (124) - WHEELS, POWER ADJUSTED REAR WHEELS (11) - WHEELS

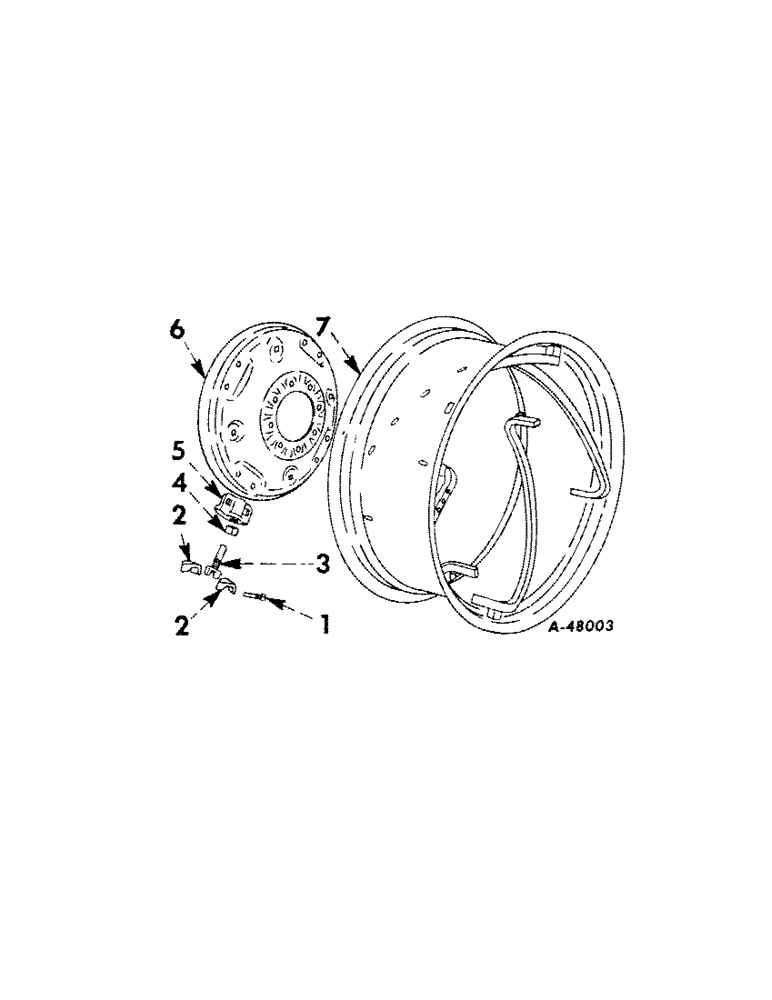

Схема запчастей Case IH 2424 - (124) - WHEELS, POWER ADJUSTED REAR WHEELS (11) - WHEELS
2
5
1
2
3
4
6
7

Артикул

Название

Примечание

Количество

373299R91

WHEEL ASSY, W11-28 power adjusted rear

2шт.

365323R92

WHEEL ASSY, W12-28 power adjusted rear

2шт.

1

365326R1

SCREW

power adjusted rear wheel stop

4шт.

2

365327R2

STOP

BODY, power adjusted rear wheel stop

4шт.

3

365329R1

JACK SCREW

power adjusted rear wheel jack

8шт.

4

365328R1

NUT

power adjusted rear wheel jack screw

8шт.

5

365330R1

BODY

power adjusted rear wheel jack screw

8шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8-11 x 1-1/2 cd-pltd crg

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd-pltd hex

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

6

365325R1

DISC, power adjusted rear wheel

1шт.

364451R1

BOLT,9/16" - 18 x 1 7/32"

rear wheel mounting

16шт.

7

373300R91

RIM ASSY, power adjusted rear wheel, W11-28 rim for 12.4/11-28 tire

2шт.

7

365324R92

RIM

ASSY, power adjusted rear wheel, W12-28 rim for 13.6/12-28 or 14.9/13-28 tire

2шт.

365331R1

WRENCH, jackscrew, 1-1/2 in.

1шт.

Выбрано товаров: 15
