Запчасти Case IH 2424 (121) - WHEELS, FRONT WHEELS (11) - WHEELS

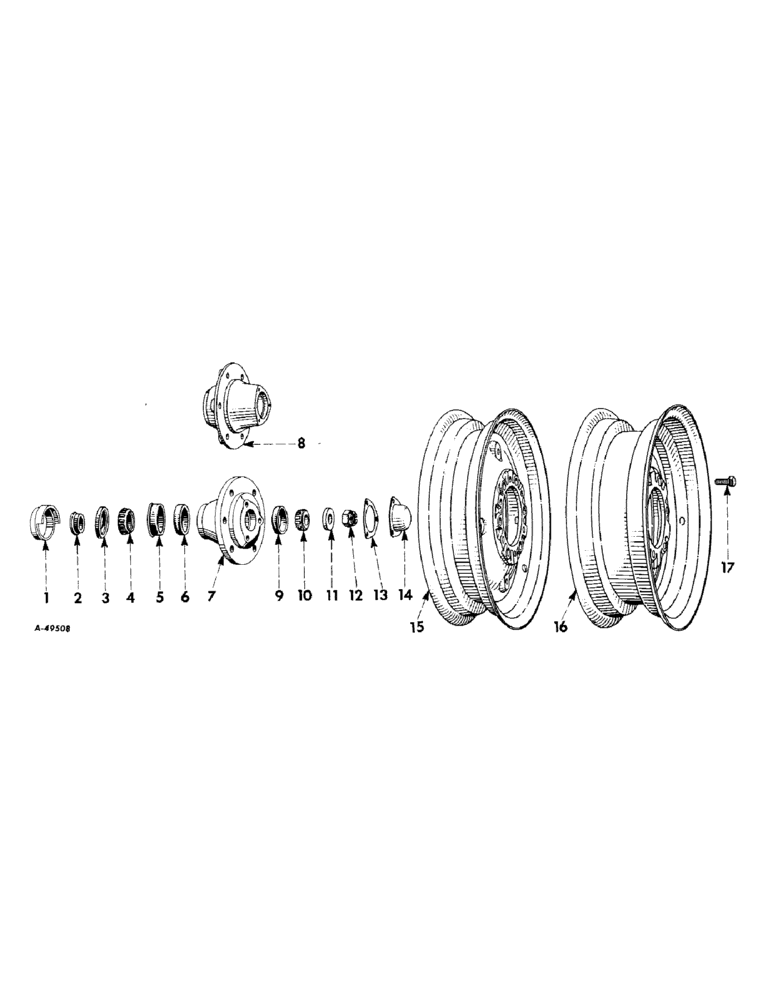

Схема запчастей Case IH 2424 - (121) - WHEELS, FRONT WHEELS (11) - WHEELS
3
9
13
12
5
11
6
14
10
1
17
8
16
2
7
4
15

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

Service parts for tractors equipped with standard front axle, consists of all unmarked parts and those marked unit A

1шт.

NSS

NOT SOLD SEPARAT

Service parts for tractors equipped with heavy duty front axle, consists of all unmarked parts and those marked unit B

1шт.

1

43462D

DEFLECTOR

steering knuckle dust, 2 for unit A

1шт.

1

48541D

SHIELD

DEFLECTOR, steering knuckle dust, 2 for unit B

1шт.

2

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

3

368629R91

SEAL

front wheel dust oil, 2 for unit A

1шт.

3

48539DA

PACKING RING

SEAL, front wheel dust oil, 2 for unit B

1шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, front wheel inner cone, 2 for unit A

1шт.

4

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, front wheel inner cone, 2 for unit B

1шт.

5

49117D

CUP ASSY.

RING, front wheel oil seal wear, 2 for unit A

1шт.

5

48548D

WASHER

front wheel oil seal, 2 for unit B

1шт.

6

651817R1

BEARING CUP

BEARING, front wheel inner cup, 2 for unit A

1шт.

6

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

6

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel inner, 2 for unit B

1шт.

7

368626R11

HUB

ASSY, front wheel, 2 for unit A

1шт.

8

397092R11

HUB

ASSY, front wheel, 2 for unit B

1шт.

19700R91

FITTING

3/8 45 deg angle drive lub

2шт.

9

651814R1

BEARING CUP

BEARING, front wheel outer cup, 2 for unit A

1шт.

9

371883R1

BEARING CUP

Front wheel outer, 2 for unit B

1шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, front wheel outer cone, 2 for unit A

1шт.

10

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

10

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Front wheel outer, 2 for unit B

1шт.

11

369936R1

WASHER

front wheel outer bag retainer, 2 for unit A

1шт.

11

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

front wheel outer brg retainer, 2 for unit B

1шт.

12

102649

SLOTTED NUT,5/8"-18, G5

NUT, , 2 for unit A 5/8"-18, G5

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

12

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3-1/4-16 slt hex, 2 for unit B

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

13

49116D

GASKET,0.79mm Thk

front wheel hub cap, 2 for unit A

1шт.

13

369860R1

GASKET,0.79mm Thk

front wheel hub cap, 2 for unit B

1шт.

14

49115D

CYLINDER END CAP

CAP, front wheel hub, 2 for unit A

1шт.

14

369859R1

CAP

front wheel hub, 2 for unit B

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

15

622192R91

WHEEL

ASSY, front 5KB x 15DC rim for 5.90-15 tire

2шт.

16

380065R91

WHEEL

ASSY, front w/4.25KA x 16DC rim for 5.50-16 or 6.00-16 tire

2шт.

16

364343R92

WHEEL

ASSY, front w/5. 50F x 16DC rim for 7.50-16 tire

2шт.

17

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting

12шт.

Выбрано товаров: 38
