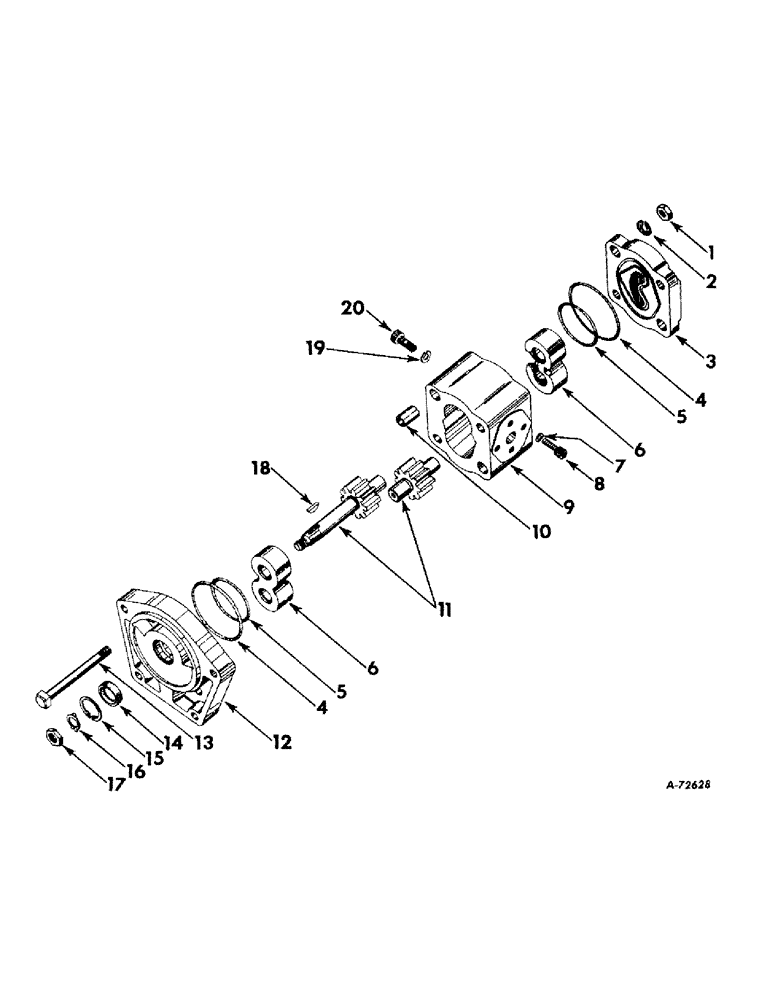

Запчасти Case IH 2424 (133) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, DIESEL ENGINE TRACTORS (07) - HYDRAULIC SYSTEM

704330R95

PUMP

ASSY, hydraulic, 7.6 GPM, order pump assy, 3072694R91, consists of all unmarked parts & those marked unit A

1шт.

3043981R94

PUMP

ASSY, hydraulic, 10 GPM, order pump assy, 3072695R91, consists of all unmarked parts & those marked unit B

1шт.

3072694R91

PUMP

ASSY, hydraulic, 7.6 GPM, consists of all unmarked parts & those marked unit C

1шт.

3072695R91

PUMP

ASSY, hydraulic, 10 GPM, consists of all unmarked parts & those marked unit D

1шт.

1

214441

NUT

3/8-24 hex, 4 for units A & B

1шт.

2

103321

LOCK WASHER,3/8"

WASHER, LOCK, , 4 for units A & B 3/8"

1шт.

3

3044628R1

COVER

pump, units A & B

1шт.

3

NSS

NOT SOLD SEPARAT

COVER, pump, units C & D, not serviced separately, order pump assy

1шт.

4

3044623R1

GASKET

O-RING, flange sealing

2шт.

5

3044624R1

GASKET

O-RING, pressure relief

2шт.

6

3066762R91

BEARING

2 for unit A

1шт.

6

3049628R1

BEARING, 2 for unit B

1шт.

6

3073623R91

BEARING, 2 for unit C

1шт.

6

3073624R91

BEARING, 2 for unit D

1шт.

7

706053R1

SPRING WASHER

spring, 2 for units A & B

1шт.

8

3044642R1

SCREW

1/4 x 3/4 Allen, 2 for units A & B

1шт.

9

3044633R1

BODY

pump, unit A

1шт.

9

3049626R1

BODY

pump, unit B

1шт.

9

NSS

NOT SOLD SEPARAT

BODY, pump, units C & D, not serviced separately , order pump assy

1шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

manifold

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

manifold

1шт.

10

3064276R1

PIN

DOWEL, hollow, 4 for unit A

1шт.

10

3044631R1

DOWEL

hollow, 4 for unit B

1шт.

11

3044627R91

GEAR

SET, pump drive, units A & C, also includes ref nos. 16, 17 & 18

1шт.

11

3049627R91

GEAR

SET, pump drive, unit B, also includes ref no. 16, 17 & 18

1шт.

11

3073625R91

GEAR SET, pump drive, unit D, also includes ref no. 16,17 & 18

1шт.

12

708395R1

FLANGE

pump

1шт.

12

NSS

NOT SOLD SEPARAT

FLANGE, pump, units C & D, not furnished separately, order pump assy

1шт.

13

3072021R1

BOLT

4 for unit A

1шт.

13

396403R1

BOLT, 4 for unit B

1шт.

14

708422R91

OIL SEAL

oil

1шт.

15

706066R1

RETAINER

CIRCLIP

1шт.

16

3044636R1

WASHER

lock

1шт.

17

3044638R1

NUT

lock

1шт.

18

3044637R1

KEY

Woodruff

1шт.

19

706072R1

WASHER

spring, 2 for units A & B

1шт.

20

706075R1

SCREW

Allen, 2 for units A & B

1шт.

3044645R91

SEAL

PACKAGE, seal, consists of ref. nos. 4, 5, 14, o-ring, 352221R1 & o-ring, 364879R1

1шт.
