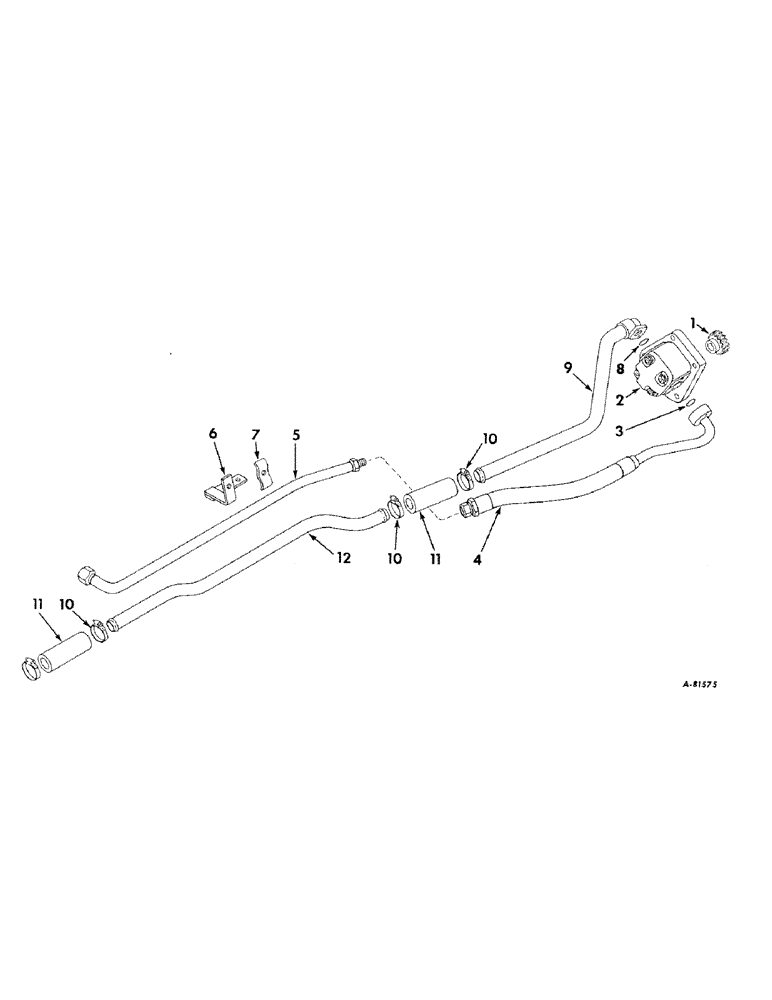

Запчасти Case IH 2424 (130) - HYDRAULIC SYSTEM, HYDRAULIC POWER SUPPLY, DIESEL ENGINE TRACTORS (07) - HYDRAULIC SYSTEM

1

3064087R1

GEAR, hyd pump drive

1шт.

2

704330R95

PUMP

ASSY, hyd, 7.6 GPM, order pump, 3072694R91, for components see list of parts under details of hyd pump, tractors w/o power steering

1шт.

2

3072694R91

PUMP

ASSY, hyd, 7.6 GPM, for components see list of parts under details of hyd pump, tractors w/o power steering

1шт.

2

3043981R94

PUMP

ASSY, hyd, 10 GPM, order pump, 3072695R91, for components see list of parts under details of hyd pump, tractors with power steering

1шт.

2

3072695R91

PUMP

ASSY, hyd, 10 GPM, for components see list of parts under details of hyd pump, tractors with power steering

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

3шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

3

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, pressure pipe

1шт.

4

388851R91

HYDRAULIC HOSE,19.05mm ID x 641.35mm L, SAE 100R2

PIPE ASSY, pressure

1шт.

20743R1

SCREW, 1/4-20 x 1-1/8 hex-soc-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

388850R11

PIPE ASSY, pressure

1шт.

6

388858R11

SUPPORT ASSY, pipe

1шт.

179852

BOLT

SCREW, 7/16-14 x 1/2 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

7

388857R1

CLAMP, pipe

1шт.

109084

NUT,1/4"-20, G5

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, suction pipe

1шт.

9

388834R11

PIPE ASSY, suction 16.2, 5.1" Length

1шт.

21019R1

SCREW,Hex Soc Hd, 5/16"-18 x 3/4"

5/16-18 x 3/4 hex-soc-hd cap

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

274086R91

HOSE CLAMP,0.94/1.63 Type F Worm

CLAMP, suction hose

4шт.

11

389250R1

HOSE,1.13" ID x 5.00", SAE 100R5

Suction 1.13" ID x 5.00", SAE 100R5

2шт.

12

388833R1

PIPE, suction 1.062" OD, 32, 2.5" Length

1шт.
