Запчасти Case IH 2424 (066) - ELECTRICAL SYSTEM, BATTERY AND SUPPORTS, 2424 DIESEL TRACTORS WITH BACKHOE (06) - ELECTRICAL SYSTEMS

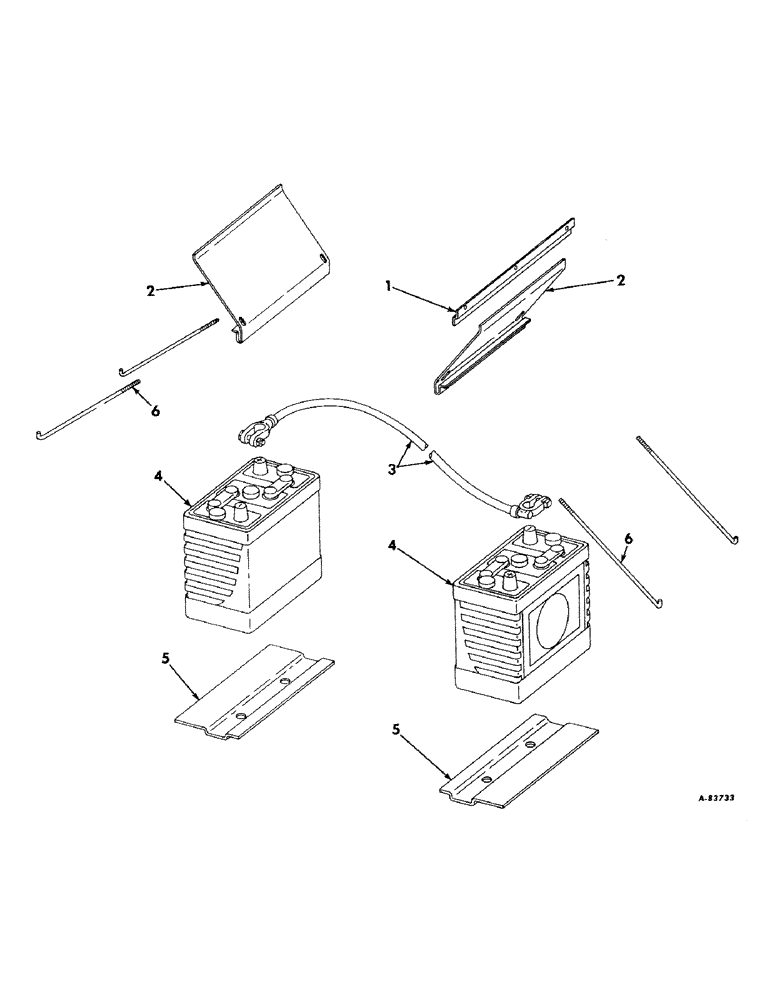

Схема запчастей Case IH 2424 - (066) - ELECTRICAL SYSTEM, BATTERY AND SUPPORTS, 2424 DIESEL TRACTORS WITH BACKHOE (06) - ELECTRICAL SYSTEMS
3
5
2
6
6
4
5
2
4
1

Артикул

Название

Примечание

Количество

1

391880R1

STRIP, battery-RH

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

2

388738R2

SUPPORT

COVER, battery

2шт.

3

384974R91

CABLE ASSY, Serial Range: battery-battery

1шт.

356062R91

BOLT

ASSY, terminal

2шт.

4

391882R91

BATTERY, Prestolite H2N 6 volt

2шт.

5

392288R1

SUPPORT, battery

2шт.

6

377677R1

BOLT,1/4" - 20 x 9"

ROD, battery hold down

2шт.

376137R1

WING NUT

NUT, 1/4-20 wing

2шт.

147577

WASHER,#12

1/4 x 9/32 x .065 ga

2шт.

Выбрано товаров: 12
