(032[A]) - FUEL SYSTEM, PRE-SCREENER

Запчасти Case IH 2424 (032[A]) - FUEL SYSTEM, PRE-SCREENER (02) - FUEL SYSTEM

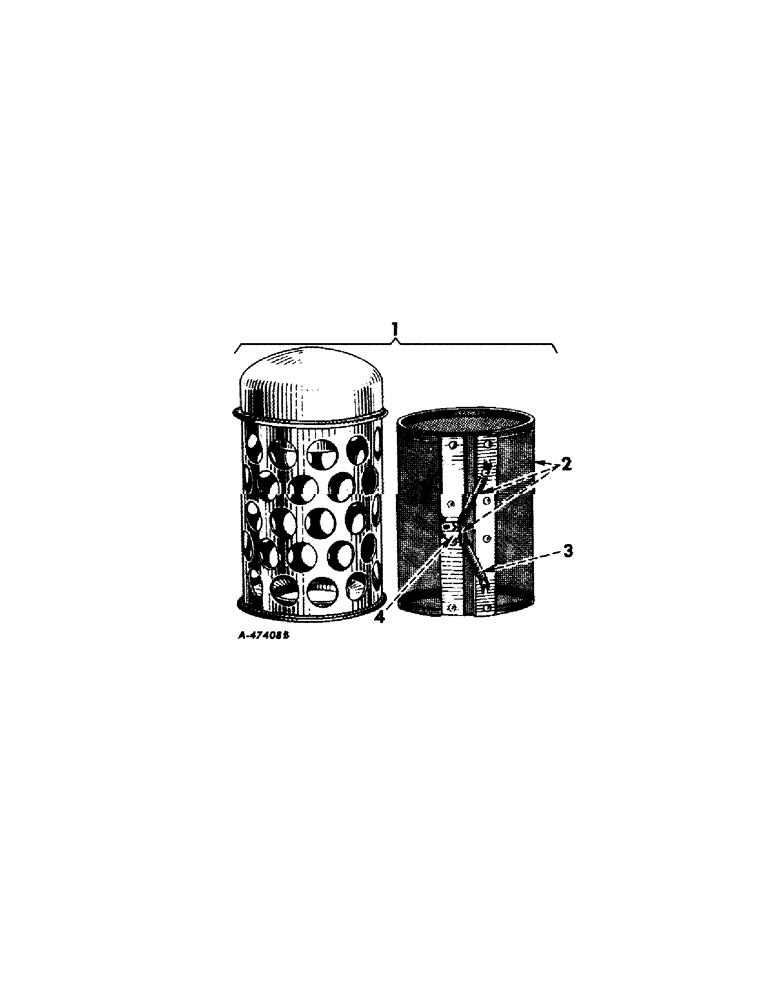

Схема запчастей Case IH 2424 - (032[A]) - FUEL SYSTEM, PRE-SCREENER (02) - FUEL SYSTEM
1
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

371281R91

PARTS ACCESSORY, pre-screener

1шт.

1

353411R92

FILTER ASSY

PRE-SCREENER, air cleaner

1шт.

2

353637R91

SCREEN

W/CLIP, 353758R1 & 2 springs, 353639R1, pre-screener

1шт.

3

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.

4

353758R1

CLIP

screen lock tension

1шт.

371282R1

EXTENSION, air pipe

1шт.
