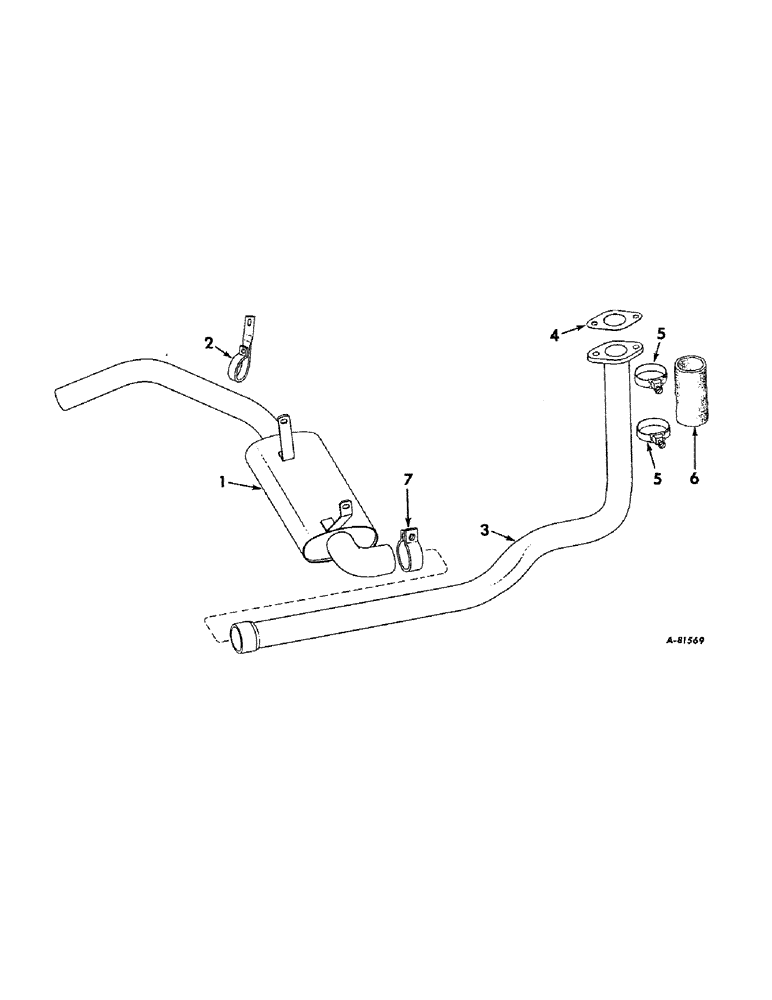

Запчасти Case IH 2424 (028) - DIESEL ENGINE, EXHAUST SYSTEM, TRACTORS WITH UNDERSLUNG EXHAUST (01) - ENGINE

1

3047572R92

MUFFLER

exhaust

1шт.

2

705449R1

CLAMP

muffler outer pipe support

1шт.

102635

NUT,3/8"-16, G5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

388828R11

PIPE

ASSY, exhaust

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

388980R1

GASKET

exhaust pipe flange

1шт.

5

29979D

CLAMP

exhaust pipe asbestos tape

2шт.

6

370639R1

TAPE

exhaust pipe asbestos

1шт.

7

48889DA

CLAMP

exhaust muffler front

1шт.

102635

NUT,3/8"-16, G5

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
