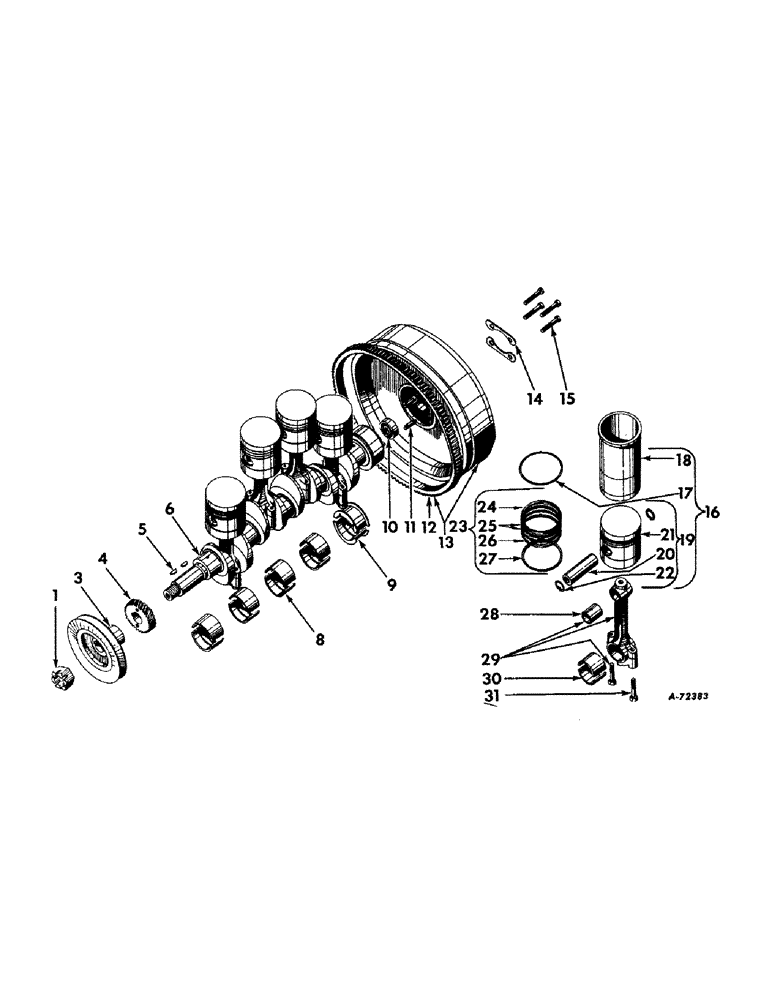

Запчасти Case IH 2424 (026) - DIESEL ENGINE CRANKSHAFT, FLYWHEEL, CONNECTING RODS AND PISTONS (01) - ENGINE

1

NLS

NO LONGER SERVICED

NUT, 1-14 hex. type LLJ lock, fan drive pulley

1шт.

2

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

3

3048133R2

PULLEY

fan drive

1шт.

4

3064088R1

GEAR

PINION, crankshaft, 33 teeth

1шт.

5

218211

DRIVING SPROCKET

1/4 x 3/4 Woodruff 91

2шт.

6

384599R91

PACKAGE

CRANKSHAFT ASSY, standard, composed of (1) bearing ST553, (4) bearing assy 3064523R11, (1) bearing assy 708910R91, (1) bearing set 710768R91, (1) crankshaft 751303R5 (NSS), (2) pin 24550D

1шт.

384600R91

CRANKSHAFT W/BEARINGS FIELD PACKAGE, undersize, consists of four connecting rod bearings, five crankshaft bearings and crankshaft

1шт.

7

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

8

3064523R11

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front and center, 2 halves, standard

4шт.

8

3064524R11

BEARING LINER

BEARING ASSY, crankshaft front and center, 2 halves, .030 undersize

4шт.

8

3064525R11

BEARING LINER

BEARING ASSY, crankshaft front and center, 2 halves, .015 undersize

4шт.

9

708910R91

BEARING ASSY

crankshaft rear, 2 halves, standard size

1шт.

9

708911R91

BEARING ASSY

crankshaft rear, 2 halves, .030 undersize

1шт.

9

708915R91

BEARING ASSY

crankshaft rear, 2 halves, .015 undersize

1шт.

10

ST553

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING, clutch pilot

1шт.

11

24550D

PIN

flywheel dowel

2шт.

12

704436R1

SPROCKET

GEAR, flywheel ring

1шт.

13

3044003R11

FLYWHEEL

W/GEAR, 704436R1, all dual clutch tractors, single clutch tractors, single clutch tractors for 424 w/serial no. 10240 & below or 2424 w/serial no. 2519 & below

1шт.

13

3046388R11

FLYWHEEL

W/GEAR, 704436R1 & two pins, 141223, single clutch tractors for 424 w/serial no. 10241 & above or 2424 w/serial no. 2520 & above

1шт.

Includes ref. 14

1шт.

141223

DOWEL,5/16" x 1"

PIN, dowel 5/16 x 1 dowel

2шт.

14

3069518R1

LOCK, flywheel bolt

2шт.

3069518r1 lock, s/b 3069118r2 lock.

1шт.

15

709515R1

BOLT,Hex, 7/16" - 20 x 1 1/4"

flywheel, dual clutch

4шт.

15

709517R1

BOLT,Hex, 7/16" - 20 x 1 3/4"

flywheel, single clutch

4шт.

16

3044478R92

SLEEVE CYLINDER

SLEEVE SET, crankcase, consists of four sleeves, 3044479R92

1шт.

16

3044479R92

SLEEVE CYLINDER

SLEEVE W/PISTON ASSY, cylinder, composed of (1) piston 3044480R92, (1) ring 704100R1, (1) sleeve 3044481R3

1шт.

17

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING, cylinder sleeve packing

4шт.

704100R1 SLEEVE ORING IS NOT INCLUDED IN THIS SLEEVE AND PISTON KIT.

1шт.

18

3044481R3

LINER, ENGINE CYLIND

SLEEVE, cylinder

4шт.

19

3044480R92

PISTON

W/RINGS ASSY, composed of, (1) pin 3044476R1, (1) piston 3044486R2, (2) retainer 704095R1, (1) ring 3070101R1, (2) ring 3070102R1, (2) ring 3070103R1

1шт.

20

3044476R1

PIN

piston, standard

4шт.

20

3044477R1

PIN, piston, .005 oversize, as required

1шт.

21

3044486R2

PISTON

4шт.

22

704095R1

SNAP RING,M28, Int

RETAINER, piston pin

8шт.

23

3044487R92

SET OF RINGS

RING SET, piston, composed of (4) ring 3070101R1, (8) ring 3070102R1, (8) ring 3070103R1

1шт.

24

3044482R1

RING, compression piston, top groove, engines w/serial no. 57677

1шт.

24

3070101R1

PISTON RING

RING, compression piston, top groove, engines w/serial no. 57678

1шт.

25

3044483R1

RING, compression piston, second and third groove, engines with

1шт.

25

3070102R1

PISTON RING

RING, compression piston, second and third groove, engines with

1шт.

26

3044484R91

SEGMENT

RING, oil control piston, upper, fourth groove, engines w/serial

1шт.

26

3070103R1

PISTON RING

RING, oil control piston, upper, fourth groove, engines w/serial

1шт.

27

3044485R1

RING, oil control piston, lower, fifth or bottom groove, engines

1шт.

27

3070103R1

PISTON RING

RING, oil control piston, lower, fifth or bottom groove, engines

1шт.

28

3043611R1

BUSHING

piston pin

4шт.

29

3061214R91

PITMAN ASSY.

ROD ASSY, connecting

4шт.

30

3070536R11

BEARING

ASSY, connecting rod, 2 halves, standard size, will work

4шт.

30

3070538R11

JOURNAL

BEARING ASSY, connecting rod, 2 halves, .015 undersize

4шт.

30

3070537R11

BEARING

ASSY, CONNECTING ROD, 2 halves, .030 undersize, will work for 710737R11

4шт.

31

3043216R1

BOLT,3/8" - 24 x 2"

connecting rod

8шт.
