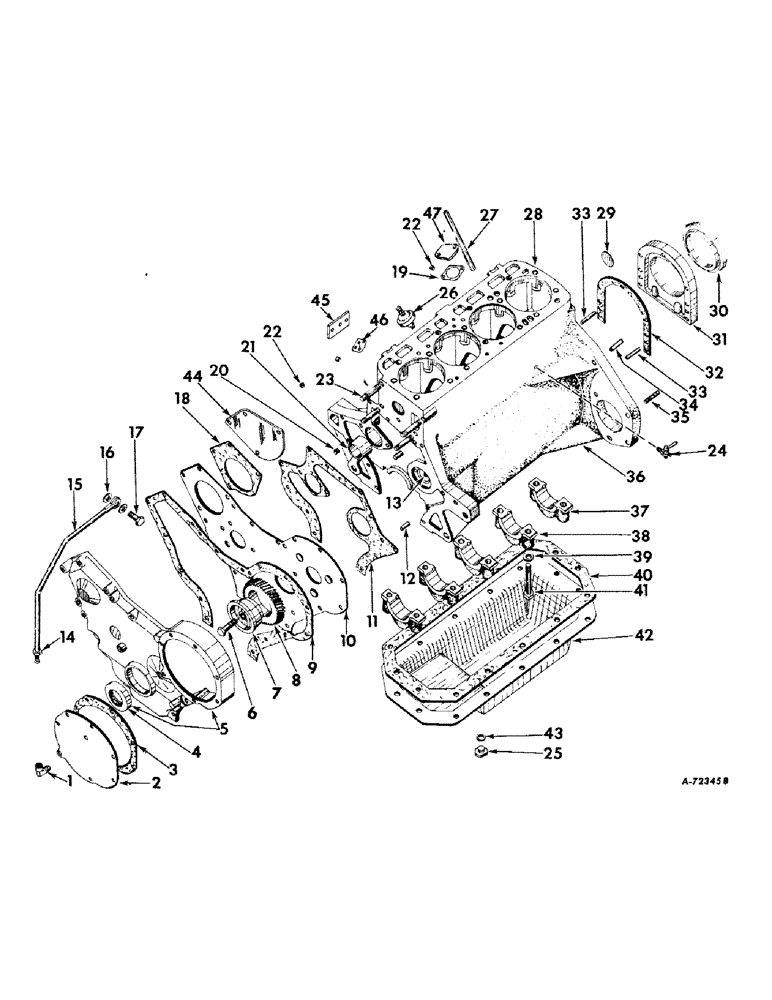

Запчасти Case IH 2424 (024) - DIESEL ENGINE, CRANKCASE, FRONT COVER AND OIL PAN (01) - ENGINE

1

3063558R1

CONNECTOR, ELEC

ELBOW, breather pipe, injection pump gear cover end

1шт.

2

3040337R1

COVER, injection pump gear

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

4шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3

703849R1

GASKET

injection pump gear cover

1шт.

4

703844R91

OIL RESERVOIR

SEAL, crankshaft front oil

1шт.

5

3042069R21

COVER

W/OIL SEAL, 703844R91, crankcase front

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

SCREW, 1/2-20 x 1-7/8 hex-hd cap

1шт.

7

703853R11

SHAFT

W/PIN, 932039R1, idler gear

1шт.

932039R1

LOCK PIN,M3 x 16, Slotted

PIN, roll 3 mm x 16 mm

1шт.

8

703852R1

GEAR

idler

1шт.

9

708285R1

GASKET

crankcase front cover

1шт.

10

709901R11

PLATE

ASSY, crankcase front

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

3047230R1

SCREW

crankcase front plate

2шт.

703636R1

WASHER

crankcase front plate screw tab

1шт.

11

709903R1

GASKET

crankcase front plate

1шт.

12

37-1616

DOWEL,3/8" x 1"

PIN, 3/8 x 1 dowel, crankshaft front

2шт.

13

751610R1

INSERT

lock idler gear bolt screw

1шт.

14

222-504

TUBE NUT,9/16"-20

NUT, crankcase breather pipe connector

1шт.

15

3043654R92

HOSE

PIPE ASSY, crankcase breather

1шт.

16

708297R1

GASKET

WASHER, breather pipe banjo bolt

2шт.

17

708296R1

CONNECTOR, ELEC

BOLT, banjo, breather pipe

1шт.

18

703851R1

GASKET

hycraulic pump, tractors w/o hyd power supply

1шт.

19

3042467R1

GASKET

tachometer drive opening cover

1шт.

20

444691

PLUG

1/4 slotted headless pipe

2шт.

21

703827R1

CAMSHAFT BEARING

BUSHING, camshaft front

1шт.

21

703828R1

CAMSHAFT BEARING

BUSHING, camshaft center

1шт.

21

703829R1

CAMSHAFT BEARING

BUSHING, camshaft rear

1шт.

22

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

23

703832R1

STUD

water pump

4шт.

24

106794

VALVE

COCK, 1/4 type A water drain

1шт.

25

359875R1

PLUG

crankcase pan drain

1шт.

26

392249R92

SWITCH

oil pressure

1шт.

27

751826R1

TUBE,0.375" OD, 5.75" Length

dipstick

1шт.

28

751834R1

INSERT

7-16 heli-coil thread

16шт.

29

172578

PLUG,Exp, 1 3/4"

1-3/4 dia expansion, type 1

1шт.

30

3072092R91

OIL SEAL

crankshaft rear oil, will work for 708903R91

1шт.

31

708904R1

RETAINER

crankshaft rear oil seal

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

crankshaft rear oil seal

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

32

708907R1

GASKET

crankshaft rear oil seal retainer

1шт.

33

141223

DOWEL,5/16" x 1"

PIN, 5/16 x 1 dowel, crankshaft rear oil seal retainer

2шт.

34

141287

DOWEL,1/2" x 1 1/2"

PIN, 1/2 x 1-1/2 dowel

2шт.

35

703877R1

STUD

cranking motor

1шт.

36

3040912R41

CRANKCASE

1шт.

CRANKCASE ASSY, composed of (10) bolt 3061211R1, (1) bushing 703827R1, (1) bushing 703828R1, (1) bushing 703829R1, (4) cap 703834R2 (NSS), (1) cap 708901R2 (NSS), (1) insert 751610R1, (16) insert 751834R1, (2) pin 141287, (2) pin 141244, (2) pin 141223, (3) plug 103883, (2) plug 444691, (1) plug 172578, (4) stud 703832R1, (1) stud 703877R1, (1) tube 751826R1, (10) washer 3061325R1

1шт.

37

NSS

NOT SOLD SEPARAT

CAP, crankshaft bearing, rear, not serviced separately, order crankcase assy

1шт.

38

NSS

NOT SOLD SEPARAT

CAP, crankshaft bearing, not serviced separately, order crankcase assy

4шт.

39

3061325R1

WASHER

crankshaft bearing cap bolt

10шт.

40

703840R1

GASKET

crankcase pan

1шт.

41

3061211R11

BOLT, crankshaft bearing cap

10шт.

42

3064063R11

SUMP

PAN ASSY, crankcase oil

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

14шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

43

3405H

GASKET

crankcase pan drain plug

1шт.

44

703850R1

COVER

hydraulic pump opening, tractors w/o hyd power supply

1шт.

13-534

BOLT,Hex, 5/16" - 18 x 2-1/8", Gr 5

SCREW, 5/16-18 x 2-1/8 hex-hd cap

1шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q397

WASHER

3/4 x 11/32 x 16 ga flat

1шт.

45

3069249R1

COVER, fuel filter mounting and feed pump

1шт.

46

3043370R1

GASKET

fuel feed pump

1шт.

3063872R1

BOLT

SCREW, cover

2шт.

47

3042468R1

COVER

drive opening

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
