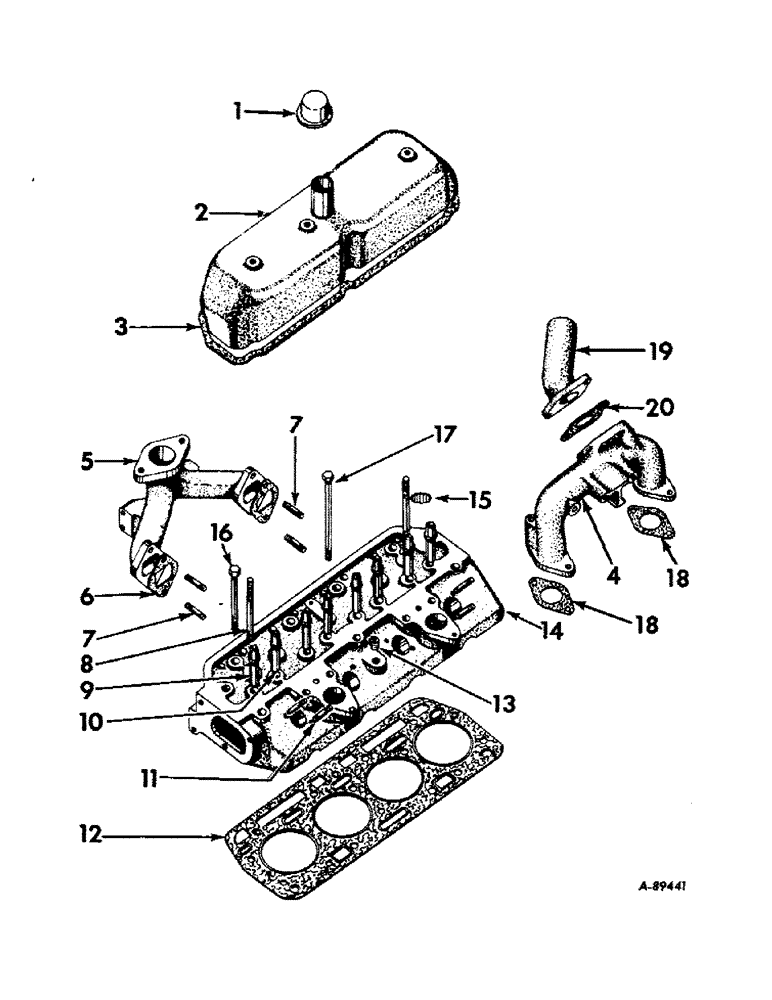

Запчасти Case IH 2424 (020) - DIESEL ENGINE, CYLINDER HEAD AND MANIFOLDS (01) - ENGINE

1

364899R91

BREATHER

ASSY, replaces 364901R91

1шт.

2

3069250R91

COVER ASSY, valve housing

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

1шт.

3

3069767R1

GASKET

valve cover

1шт.

4

3063371R1

MANIFOLD

air intake

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

186279

BOLT,Hex, 3/8" - 16 x 3 1/8", Gr 5

SCREW, 3/8-16 x 3-18 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

3045354R11

MANIFOLD

ASSY, exhaust

1шт.

706164R1

STUD, exhaust manifold

2шт.

6

704165R2

MANIFOLD GASKET

exhaust manifold

2шт.

7

703874R1

STUD

manifold to cylinder head

4шт.

280136

NUT,3/8"-16, G8

Exhaust manifold stud 3/8"-16, G8

4шт.

8

3062528R1

STUD

rocker shaft end bracket

2шт.

9

3044493R2

VALVE GUIDE

GUIDE, exhaust valve

4шт.

10

3044492R1

VALVE GUIDE

GUIDE, intake valve

4шт.

11

703876R2

STUD

injection nozzle holder

8шт.

12

703883R6

GASKET

cylinder head

1шт.

3049382R1

GROMMET

cylinder head gasket

1шт.

13

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

14

3062555R91

CYLINDER HEAD

HEAD W/VALVES ASSY, cylinder, composed of (8) cup 3044176R1, (8) cup 3044491R1, (1) head 3062526R91, (16) lock 704443R1, (8) spring 3044239R1, (8) spring 3044240R1, (4) valve 3040361R1, (4) valve 3043826R1

1шт.

14

3062526R91

CYLINDER HEAD

HEAD ASSY, cylinder, composed of (4) guide 3044492R1, (4) guide 3044493R2, (1) head 3043824R1 (NSS), (2) plug 172558, (4) stud 703874R1, (8) stud 703876R2, (2) stud 3062528R1

1шт.

15

172558

PLUG,Exp, 1 1/4"

1-1/4 dia expansion

1шт.

16

708331R1

BOLT

BOLT, cylinder head, short

15шт.

63116D

WASHER

cylinder head bolt

15шт.

17

708332R1

BOLT,Cyl Hd

cylinder head, long

1шт.

63116D

WASHER

cylinder head bolt

1шт.

18

704162R1

MANIFOLD GASKET

intake manifold

2шт.

19

3069245R1

PIPE, air intake manifold

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

3063373R1

GASKET

air intake manifold pipe

1шт.
