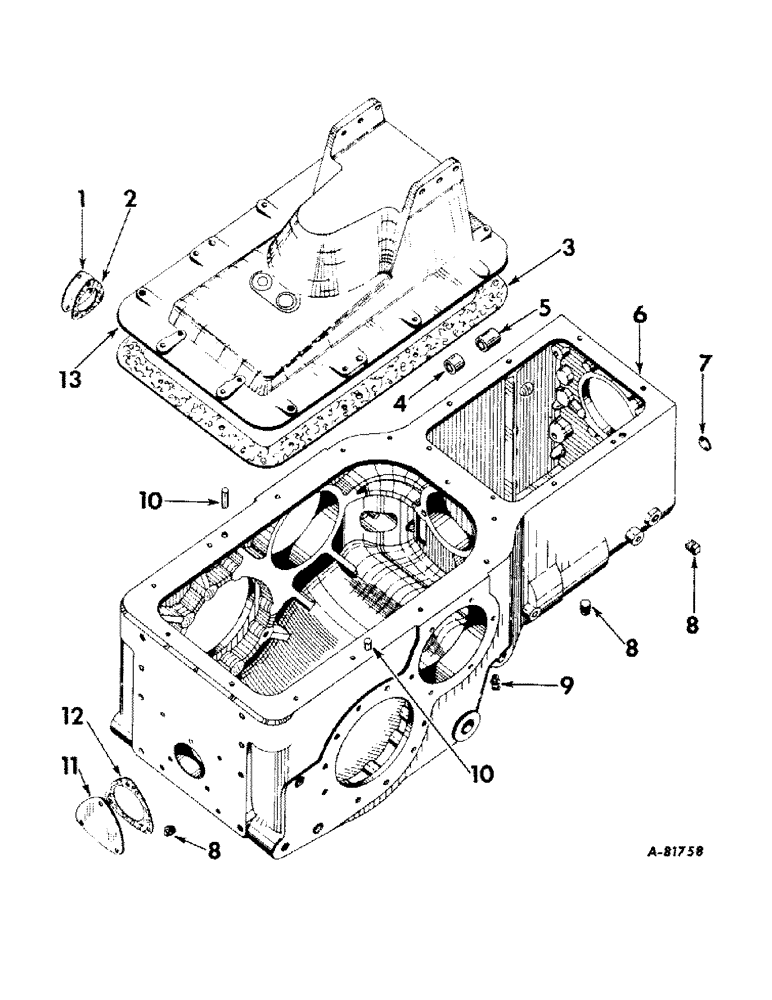

Запчасти Case IH 2424 (085) - REAR FRAME AND DRIVING MECHANISMS, TRANSMISSION CASE AND COVER Rear Frame & Driving Mechanisms

1

711466R1

PLATE

PTO shifter shaft hole cover

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

2

711312R1

GASKET

PTO shifter shaft hole cover plate

1шт.

3

703967R2

GASKET

rear frame rear cover

1шт.

4

711272R2

BUSHING

reverse idler gear, rear

1шт.

5

703966R1

BUSHING

reverse idler gear, front, power train no. 16649 & below

1шт.

5

3072136R1

BUSHING

reverse idler gear, front, power train no. 16650 & above

1шт.

6

3071415R91

HOUSING

1шт.

PACKAGE, transmission case service, power train no. 15326 & below, consists of (10) bolt 3071403R1, (2) bolt 3071405R1, (1) cage 3071401R11, (1) cage 3071402R11, (1) case 3064228R31, (2) pin 3071404R1, (6) shim 3071408R2, (6) shim 3071409R2, (6) shim 3071410R2, (6) shim 3071411R2, (10) washer 3070558R1, (2) washer 3071406R1

1шт.

6

3064228R31

BOX

CASE ASSY, transmission, power train nos 15327 to 16649, composed of (1) bushing 703966R1, (1) bushing 711272R2, (1) case 3064228R3 (NSS), (2) fitting 109462, (2) pin 141284, (3) plug 103868, (1) plug 172575

1шт.

6

3072135R91

BOX

CASE ASSY, transmission, power train no. 16650 & above, composed of (1) bushing 711272R2, (1) bushing 3072136R1, (1) case 3064228R3 (NSS), (2) fitting 109462, (2) pin 141284, (3) plug 103868, (1) plug 172575

1шт.

7

172575

PLUG,Exp, 1 9/16"

1-9/16 in. expansion

1шт.

8

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

3шт.

9

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 x 45 deg. elbow lub

2шт.

10

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

11

703972R1

PLATE

PTO shaft opening cover

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

12

703971R1

GASKET

PTO shaft opening cover plate

1шт.

13

3069942R11

COVER W/TWO PLUGS, 172599, rear frame

1шт.

172599

PLUG,Exp, 2 3/8"

2-3/8 in. expansion

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.
