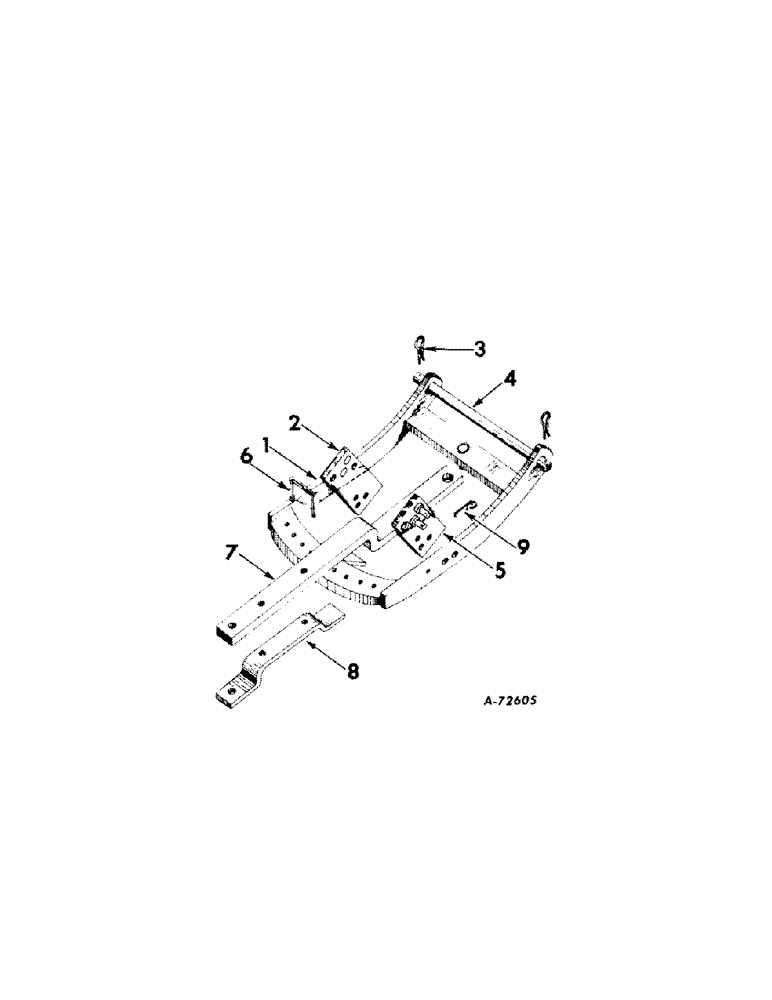

Запчасти Case IH 2424 (152) - DRAWBARS AND HITCHES Drawbar & Hitches

NSS

NOT SOLD SEPARAT

ATTACHMENT, swinging drawbar, 3048871R91, power train serial no. 2842 and below

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, swinging drawbar, 3069904R92, power train serial no. 2843 and above

1шт.

1

704022R94

FRAME ASSY, drawbar, power train serial no. 2842 and below

1шт.

1

3043143R93

FRAME ASSY, drawbar, power train serial no., Serial Range: 2843-17614

1шт.

1

3071327R91

FRAME

ASSY, drawbar, power train serial no. 17615 and above

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

2

3044334R91

PLATE ASSY, LH drawbar support, power train serial no. 2842 and below

1шт.

2

3048869R91

PLATE

ASSY, LH drawbar support, power train serial no. 2843 and above

1шт.

271606

BOLT,Hex, 3/4" - 10 x 1 3/8", Gr 5

SCREW, 3/4-10 x 1-3/8 hex-hd cap

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

3

3067210R1

CLIP

spring

2шт.

4

704058R1

PIN

drawbar frame

1шт.

5

3044335R91

PLATE ASSY, RH drawbar support, power train serial no. 2842 and below

1шт.

5

3048870R91

PLATE

ASSY, RH drawbar support, power train serial no. 2843 and above

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-3/8 hex-hd cap

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

6

3071789R1

NO LONGER SERVICED

PIN, swinging drawbar stop, will work for 704061R5

1шт.

720631R1

LINCH PIN

PIN, cot.

1шт.

7

704059R2

SPARE PART

DRAWBAR, swinging, power train serial no. 17614 and below

1шт.

7

3071321R1

SWINGING DRAWBAR

DRAWBAR, swinging, power train serial no. 17615 and above

1шт.

102639

NUT,5/8"-11, G5

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 2-1/2 hex-hd cap

2шт.

8

704060R3

CLEVIS

drawbar

1шт.

9

517758R91

SPLIT PIN/SAFETY PIN

PIN ASSY, implement

1шт.
