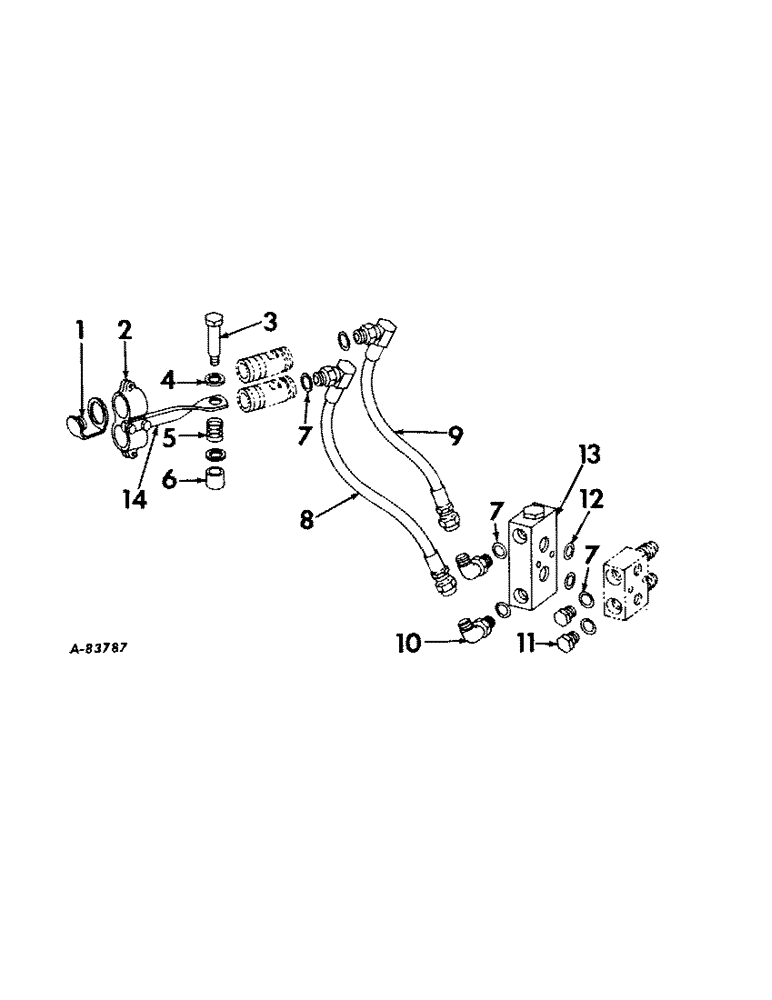

Запчасти Case IH 2424 (150) - HYDRAULIC SYSTEM, HYDRAULIC REMOTE CONTROL, FOR TRACTORS WITH REAR HYDRAULIC MANIFOLD (07) - HYDRAULIC SYSTEM

391551R91

PARTS ACCESSORY, hyd remote control

1шт.

1

373220R1

PLUG

CAP, hydraulic self-sealing coupling dust, not included in parts accessory

2шт.

2

379030R91

FUNNEL

FRAME ASSY, self-sealing coupling

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

391552R1

BOLT, shoulder

1шт.

4

446229

WASHER,1/2" x 1 1/4" x .109"

9/16 x 1-1/4 x .086

2шт.

5

353213R2

SPRING

self-sealing coupling frame

1шт.

6

391553R1

SPACER,1/2" Pipe x 7/8"

self-sealing coupling frame

1шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 5/16 x 3/32

6шт.

8

392412R91

HOSE ASSY, hydraulic, lower, 1/2 ID x 19 in. long

1шт.

9

392411R91

HOSE ASSY, hydraulic, upper, 1/2 ID x 17 in. long

1шт.

10

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thd 90 deg

2шт.

11

9410360

PLUG

7/8-14 str thd o-ring boss, junction block port

2шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32, check valve seal

2шт.

13

374083R92

VALVE

ASSY, double acting check, for components see list of parts under details of double acting check valve

1шт.

103026

NUT,3/8"-24, G5

2шт.

186311

LOCK SCREW

SCREW, 3/8-24 x 3-3/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

379031R1

BRACKET

self-sealing coupling frame

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 C-Z hex-hd cap

2шт.
