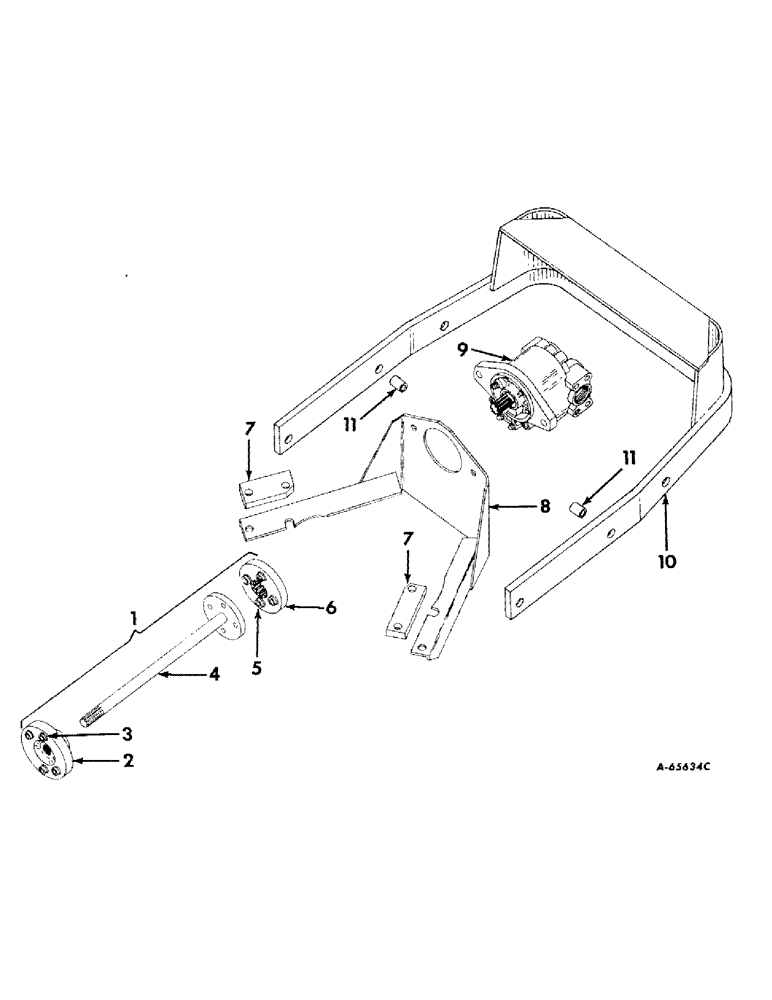

Запчасти Case IH 2424 (142) - HYDRAULIC SYSTEM, FRONT POWER TAKE OFF, INTERNATIONAL 2424 TRACTORS (07) - HYDRAULIC SYSTEM

1

379341R91

SHAFT

COUPLING ASSY, front PTO driven pump, gasoline engine tractors, used w/keyed pump shaft, order coupling, 488163R91 and pump, 383514R92

1шт.

1

488163R91

SHAFT

COUPLING ASSY, front PTO driven pump, gasoline engine tractors, used with splined pump shaft

1шт.

1

480765R91

COUPLING ASSY, front PTO driven pump, diesel engine tractors, used w/keyed pump shaft, order coupling, 448165R91 and pump, 383514R92

1шт.

1

488165R91

COUPLING

ASSY, front PTO driven pump, diesel engine tractors, used with splined pump shaft

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 C-Z hex-hd cap

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 ga. C-Z

4шт.

2

378870R91

HUB

ASSY, splined

1шт.

3

380809R1

BLOCK

& BUSHING ASSY

4шт.

4

379342R1

FLANGE AND SHAFT ASSY, gasoline engine tractors, used w/keyed pump shaft, order flange & shaft, 388164R1, hub, 488161R91 and pump, 383514R92

1шт.

4

488164R1

SHAFT ASSY.

FLANGE AND SHAFT ASSY, gasoline engine tractors, used with splined pump shaft

1шт.

4

480766R1

FLANGE & SHAFT ASSY, diesel engine tractors, used w/keyed pump shaft, order flange & shaft, 388166R1, 383514R92

1шт.

4

488166R1

SHAFT

FLANGE & SHAFT ASSY, diesel engine tractors, used with splined pump shaft

1шт.

5

380810R1

BLOCK

& BUSHING ASSY

4шт.

6

379346R91

HUB

ASSY, used with keyed pump shaft, gasoline engine tractors order flange & shaft, 388164R1, hub, 488161R91 & pump, 383514R92, diesel engine tractors order flange & shaft, 388166R1, hub, 488161R91 & pump, 383514R92

1шт.

6

488161R91

HUB

ASSY, used with splined pump shaft

1шт.

442825

NUT, 5/16-18 C-Z hex, lock

4шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 C-Z hex-hd cap

4шт.

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

1шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8-16 x 3/4 x .065 ga C-Z

4шт.

7

379340R1

SPACER, pump bracket, tractors w/o heavy duty grille

2шт.

8

379337R11

BRACKET ASSY, front PTO driven pump

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 C-Z hex-hd cap

4шт.

446221

WASHER,7/16"

1/2 x 1-1/8 x .083 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

378872R91

PUMP ASSY, front PTO driven, Cessna, has keyed shaft, for components see list of parts under details of front PTO pump, optional with 353513R92, gasoline engine tractors order flange & shaft, 388164R1, hub, 488161R91 & pump, 383514R92

1шт.

9

383513R92

PUMP ASSY, front PTO driven, Thompson, has keyed shaft, for components see list of parts under details of front PTO pump, optional with 378872R91, gasoline engine tractors order flange & shaft, 388164R1, hub, 488161R91 & pump, 383514R92

1шт.

9

381151R91

PUMP

ASSY, front PTO driven, Cessna, has splined shaft, for components see list of parts under details of front PTO pump, optional with 383514R92

1шт.

9

383514R92

PUMP

ASSY, front PTO driven, Thompson, has splined shaft, for components see list of parts under details of front PTO pump, optional with 381151R91

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

469338R91

GUARD ASSY, pump

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

495-11081

WASHER,3/4", SAE

13/16 x 1-1/2 x .108 C-Z

2шт.

11

PO15162

SPACER, pump guard

2шт.
