Запчасти Case IH 2404 (052) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING, INTERNATIONAL SERIES (06) - ELECTRICAL SYSTEMS

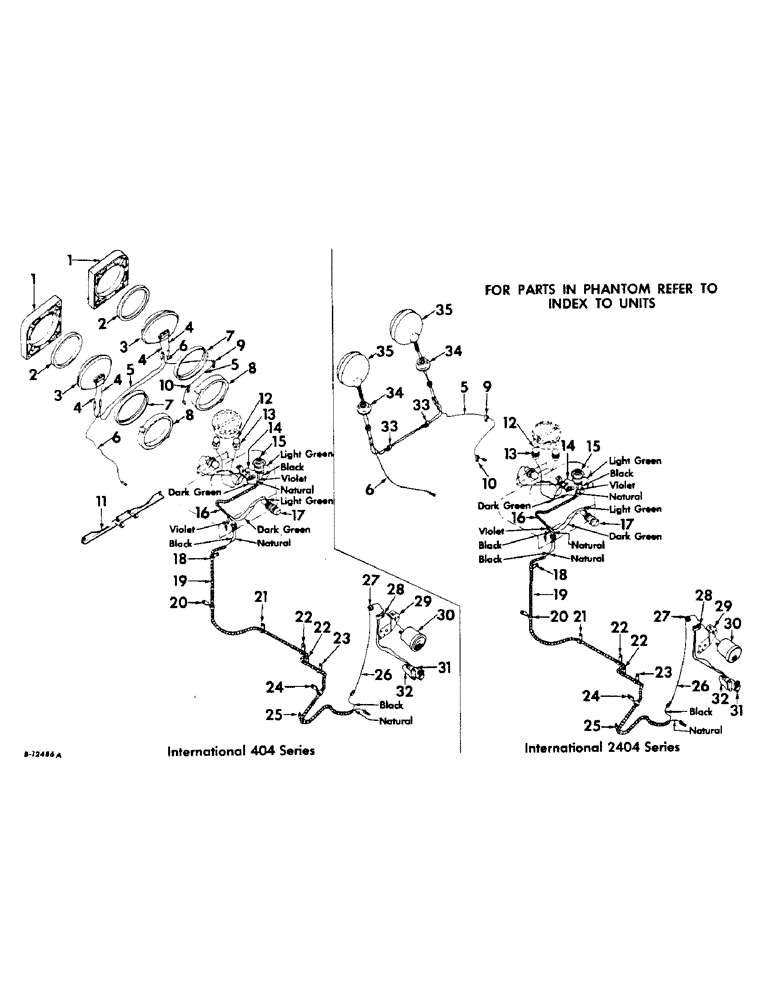

Схема запчастей Case IH 2404 - (052) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING, INTERNATIONAL SERIES (06) - ELECTRICAL SYSTEMS
29
4
5
5
20
12
13
33
17
28
33
24
9
26
5
21
4
30
16
3
25
10
35
8
26
11
34
34
8
22
35
13
21
3
14
2
2
18
30
6
31
20
7
6
32
4
7
29
15
27
25
24
19
18
27
14
15
22
23
9
22
17
28
4
6
32
19
12
23
1
10
1
32
16

Артикул

Название

Примечание

Количество

1

377302R1

HOUSING, headlight (2 for Unit A)

1шт.

153797

SCREW, 1/4 x 1" cr-rec-fil-hd. mach.

6шт.

153326

SCREW,Cross Fil Hd, #10 - 24 x 1 1/2"

no. 10 x 1-1/2" cr-rec-fil-hd. mach.

4шт.

2

377303R1

RING

headlight retaining-front (2 for Unit A)

1шт.

3

373662R91

LAMP

HEADLIGHT ASSEMBLY, sealed beam (2 for Unit A)

1шт.

4

377300R91

CABLE ASSEMBLY, headlight junction (4 for Unit A)

1шт.

5

377299R91

CABLE ASSEMBLY, harness to headlight junction

1шт.

6

377301R91

CABLE ASSEMBLY, headlight, Serial Range: junction-ground

1шт.

7

377304R1

SPECIAL RING

RING, headlight retaining-rear (2 for Unit A)

1шт.

8

377305R1

RING

headlight clamping (2 for Unit A)

1шт.

9

366460R1

CABLE CLIP

CLIP, headlight cable (on hood grill housing support lower mounting bolt)

1шт.

10

366460R1

CABLE CLIP

CLIP, headlight cable (on radiator brace RH side)

1шт.

11

377535R11

BRACE ASSEMBLY, headlight mounting (Unit A)

1шт.

377536R1

NUT, 1/4"-20 floating cage

2шт.

12

A14553

BULB

instrument light no. 57 (12 volt) (2 used on tractors without fuel gauge)

3шт.

13

376853R91

SOCKET

ASSEMBLY, instrument light bulb (2 used on tractors without fuel gauge)

3шт.

110633

NUT,#10-24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

14

376869R91

CABLE

ASSEMBLY, lighting switch to junction block

1шт.

15

376851R91

LIGHT SWITCH

SWITCH ASSEMBLY, lighting

1шт.

16

377298R91

HARNESS ASSEMBLY, lighting cable

1шт.

17

376852R91

HOUSING

ASSEMBLY, fuse

1шт.

10815V

FUSE

10 amp

1шт.

18

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable (on rear fuel tank and cowl support upper LH mounting bolt)

1шт.

19

376871R91

HARNESS ASSEMBLY, rear light cable

1шт.

20

370820R1

CLIP

rear light cable (on lower rear steering shaft support LH mounting bolt)

1шт.

21

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable (on battery housing LH rear mounting bolt)

1шт.

22

362123R1

CLIP

rear light cable (on rear frame cover LH side)

2шт.

23

362123R1

CLIP

rear light cable (on hydraulic housing LH side)

1шт.

24

370820R1

CLIP

rear light cable (on brake housing LH side lower rear mounting bolt)

1шт.

61252H

WASHER

15/32 x 3/4" x 11 ga.

1шт.

25

358986R1

CABLE CLIP

CLIP, rear light cable (on LH fender front U-bolt)

1шт.

26

377116R91

CABLE ASSEMBLY, breakaway connector socket junction

1шт.

27

363846R1

GROMMET

breakaway connector socket junction cable

1шт.

28

366460R1

CABLE CLIP

CLIP, tail light cable (on tail light LH front mounting bolt)

1шт.

29

395517R1

BRACKET, tail light, 3/8" nut (3), 3/8 x 3/4" cap screw (3)

1шт.

30

379789R91

LAMP

LIGHT ASSEMBLY, tail (only serviceable items BULB 142450) (GASKET, 81714R1 and LENS, 157729R1)

1шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

31

362002R92

SOCKET

ASSEMBLY, electric breakaway connector

1шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-f-hd. mach.

2шт.

32

377119R91

CABLE ASSEMBLY, breakaway connector, Serial Range: socket-ground

1шт.

33

370383R1

CLIP

cable harness (on headlight mounting bracket bolts) (2 for Unit B)

1шт.

34

370307R1

SEAT

headlight mounting ball (2 for Unit B)

1шт.

35

377866R91

LIGHT

HEADLIGHT ASSEMBLY, sealed beam (only serviceable item is sealed beam UNIT, 371443R91) (optional with 379729R91) (2 for Unit B)

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 NF

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

377533R11

GRILLE ASSEMBLY, radiator (UNIT A) (illustrated with "HOOD and RADIATOR GRILL")

1шт.
