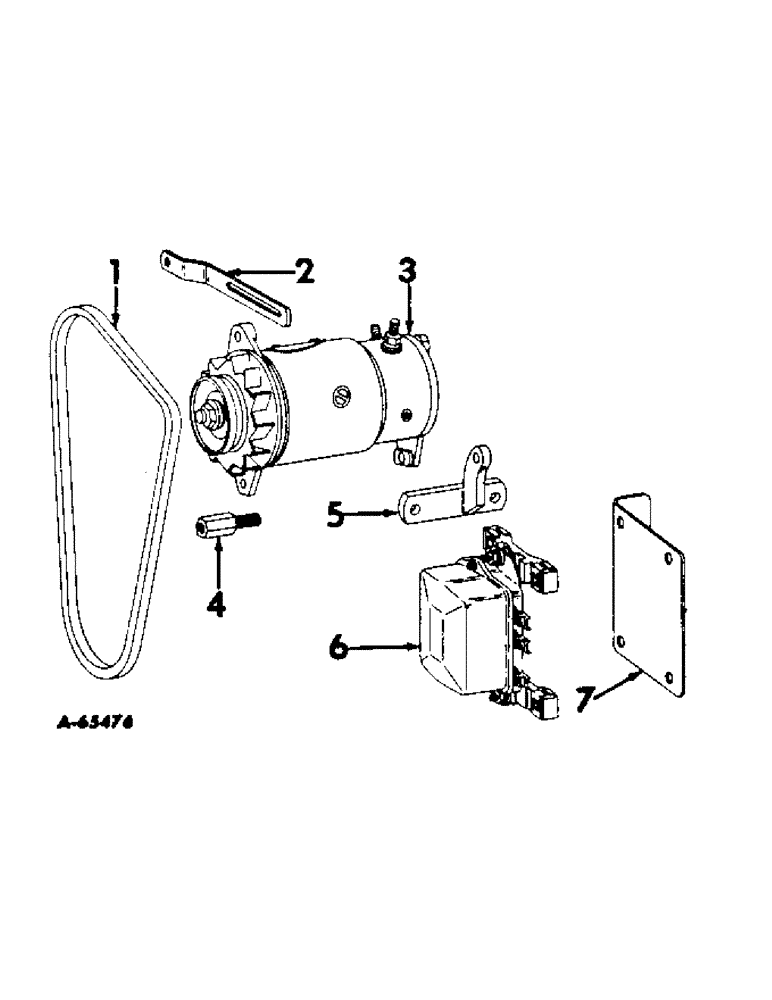

Запчасти Case IH 2404 (041) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

387920R1

BELT

BELT, fan and generator

1шт.

2

368574R3

BRACE

BRACE, generator

1шт.

179214

TROUGH

SCREW, 5/16-18 x 5/8" cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

280185R1

SPACER

WASHER, generator brace

1шт.

3

1100409

SPARE PART GENERATOR ASSEMBLY (12 volt) (for components see list of parts under details of "Generator") (376842R91)

1шт.

3

104019A1R

REMAN-GENERATOR

Remanufactured, 12 volt 25 ampere

1шт.

3

104019A1C

CORE-GENERATOR

Return Number, 12 volt 25 ampere

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

375673R1

SPARE PART STUD, generator mounting front

1шт.

5

375664R91

SPARE PART BRACKET ASSEMBLY, generator rear

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8" cap

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8" external-tooth lock

2шт.

6

1119270E

REGULATOR ASSEMBLY, voltage (12 volt) (for components see list of parts under details of "Voltage Regulator")

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

BOLT, Hex, 1/4"-20 x 1 1/4", G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

7

378041R11

SPARE PART BRACKET ASSEMBLY, voltage regulator mounting

1шт.

102635

NUT,3/8"-16, G5

NUT, 3/8"-16, G5

2шт.

NLS

NO LONGER SERVICED

2шт.
