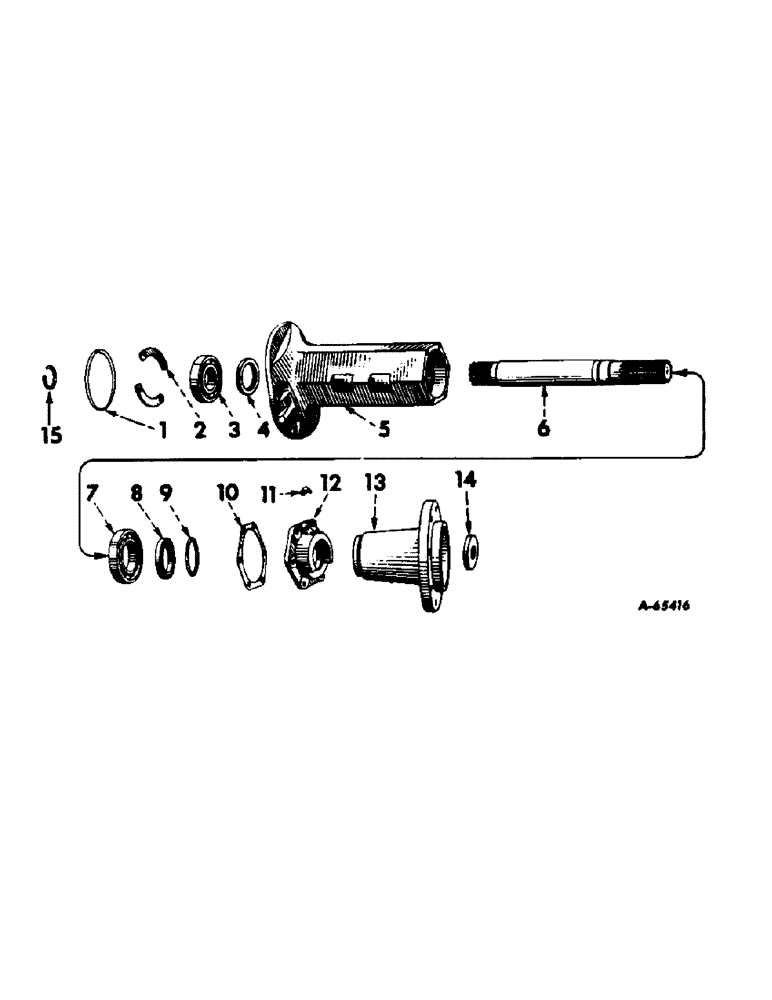

Запчасти Case IH 2404 (092) - REAR AXLE, INTERNATIONAL SERIES (05) - REAR AXLE

1

380595R1

O-RING

rear axle carrier (5-5/8 x 5-7/8 x 1/8")

2шт.

2

351114R2

RETAINER, rear axle inner bearing

4шт.

192278

BOLT, 3/8 x 3/4" type A lock

8шт.

3

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

rear axle inner

2шт.

4

380768R91

OIL SEAL

OIL SEAL, rear axle carrier inner

2шт.

5

375696R2

CARRIER, rear axle LH

1шт.

5

375697R2

CARRIER, rear axle RH

1шт.

425-1110

NUT,5/8"-18, G5

5/8-16 NF

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

6

375738R1

SHAFT

AXLE, rear

2шт.

7

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

rear axle outer

2шт.

8

380770R91

OIL SEAL

rear axle

2шт.

9

369389R1

RING

SNAP RING, rear wheel hub retainer

2шт.

10

351117R1

GASKET

rear axle carrier cap

2шт.

11

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8" x 90 deg. lubrication

2шт.

12

351116R1

CYLINDER END CAP

CAP, rear axle

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

13

369388R1

HUB

rear wheel

2шт.

14

380489R1

WASHER, rear wheel hub retaining

2шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-16 NF x 1-1/4" cap (PN 271628)

2шт.

15

358236R1

RING

SNAP RING, rear axle

2шт.
