Запчасти Case IH 2404 (088) - FRONT AXLE, STEERING KNUCKLES, ADJUSTABLE FRONT AXLE AND SUPPORTS, INTERNATIONAL SERIES (04) - FRONT AXLE

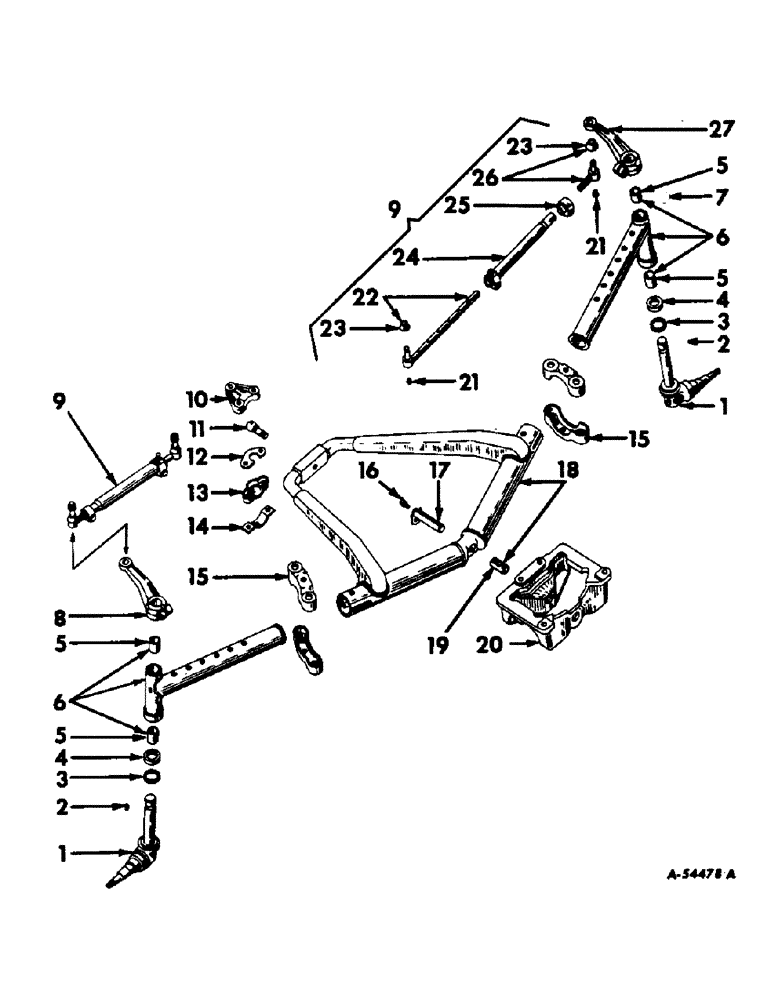

Схема запчастей Case IH 2404 - (088) - FRONT AXLE, STEERING KNUCKLES, ADJUSTABLE FRONT AXLE AND SUPPORTS, INTERNATIONAL SERIES (04) - FRONT AXLE
6
10
11
21
23
25
9
2
14
3
4
26
1
27
23
2
5
5
15
12
24
15
16
20
19
13
18
5
3
17
7
6
5
9
22
4
8
1
1

Артикул

Название

Примечание

Количество

1

371705R91

KNUCKLE

ASSEMBLY, steering (Composed of (1) deflector 43462D, (1) key 117997, (1) knuckle 368624R1 (NSS), (1) post 369005R1 (NSS), (1) seal 368629R91)

2шт.

1

373890R91

KNUCKLE ASSY, steering (Tractors with Increased Clearance Front Axle) (Composed of (1) deflector 43462D, (1) key 117997, (1) knuckle 368624R1 (NSS), (1) post 373891R1 (NSS), (1) seal 368629R91)

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

PIN, 5/32 x 1-3/8" cotter

2шт.

2

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

3

368627R1

WASHER

steering knuckle felt

2шт.

4

365317R91

THRUST BEARING,36.51mm ID x 2.48mm OD x 16.51mm W

steering knuckle thrust

2шт.

5

368621R1

BUSHING,36.2mm ID x 39.47mm OD x 38.35mm L

steering knuckle post

4шт.

6

379201R11

EXTENSION ASSEMBLY, front axle

2шт.

6

379223R91

EXTENSION ASSEMBLY, front axle (Tractors with increased clearance front axle)

2шт.

7

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16" straight drive type lubrication

2шт.

8

376348R1

ARM

steering knuckle RH

1шт.

8

379226R1

ARM, steering knuckle RH (tractors with increased clearance front axle)

1шт.

102637

NUT,1/2"-13, G5

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3" cap

1шт.

9

379202R91

ROD

TIE ROD ASSEMBLY, adjustable

2шт.

10

368997R1

SOCKET

stay rod ball

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2 x 1-5/8" cap

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4" cap

2шт.

11

369136R1

BALL

stay rod

1шт.

19441R1

LOCK NUT,5/8"-11, GB

NUT, 5/8 NF Esna

1шт.

12

368999R1

SHIM

stay rod ball socket cap

1шт.

13

368998R1

SOCKET

CAP, stay rod ball socket

1шт.

14

369000R1

PLATE, stay rod ball socket cap lock

1шт.

15

368615R1

CLAMP, front axle extension

4шт.

102639

NUT,5/8"-11, G5

6шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-1/2" cap

4шт.

271574

BEARING ASSY

SCREW, 5/8-11 x 5" cap

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

6шт.

16

19628R91

NIPPLE, LUBE

FITTING, 1/8-27 taper drive thread lubrication (Tractors with front end weights for backhoe)

1шт.

16

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8" x 45 deg. lubrication

1шт.

17

368604R11

PIN ASSY.,31.55mm OD x 116.84mm L

PIN ASSEMBLY, front axle pivot

1шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1шт.

18

379199R91

AXLE ASSEMBLY, front

1шт.

18

377186R91

AXLE ASSEMBLY, front (tractors with power steering)

1шт.

19

368608R1

BUSHING,31.76mm ID x 34.95mm OD x 53.34mm L

front axle pivot

1шт.

20

369008R5

BOLSTER

lower

1шт.

271561

PANEL

5/8-11 x 1-7/8" cap

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight 1/4"-28 NPT x .54" lg

1шт.

22

379204R11

ROD

TIE ROD

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

4шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

23

358209R1

COVER

tie rod end dust

4шт.

24

379203R11

TUBE ASSEMBLY, tie rod

2шт.

102635

NUT,3/8"-16, G5

2шт.

102445

SCREW, 3/8-16 x 3/4" oval-pt. sq-hd. set

2шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4" cap

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8" external tooth lock

2шт.

25

356543R1

CLAMP

tie rod

2шт.

102635

NUT,3/8"-16, G5

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8" external tooth lock

2шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8" cap

2шт.

26

356540R91

END

ASSEMBLY, tie rod (RH thread)

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

27

379225R1

ARM, steering knuckle LH (tractors with increased clearance front axle)

1шт.

27

376347R1

ARM

steering knuckle LH

1шт.

102637

NUT,1/2"-13, G5

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3" cap

1шт.

379222R91

PARTS ACCESSORY, increased clearance front axle (Consists of (1) arm 379225R1, (1) arm 379226R1, (2) extension 379223R91, (2) fitting 125617, (2) knuckle 373890R91, (2) nut 102637, (2) nut 102649, (2) pin 103386, (2) screw 179893, (2) washer 369936R1)

1шт.

Выбрано товаров: 61
