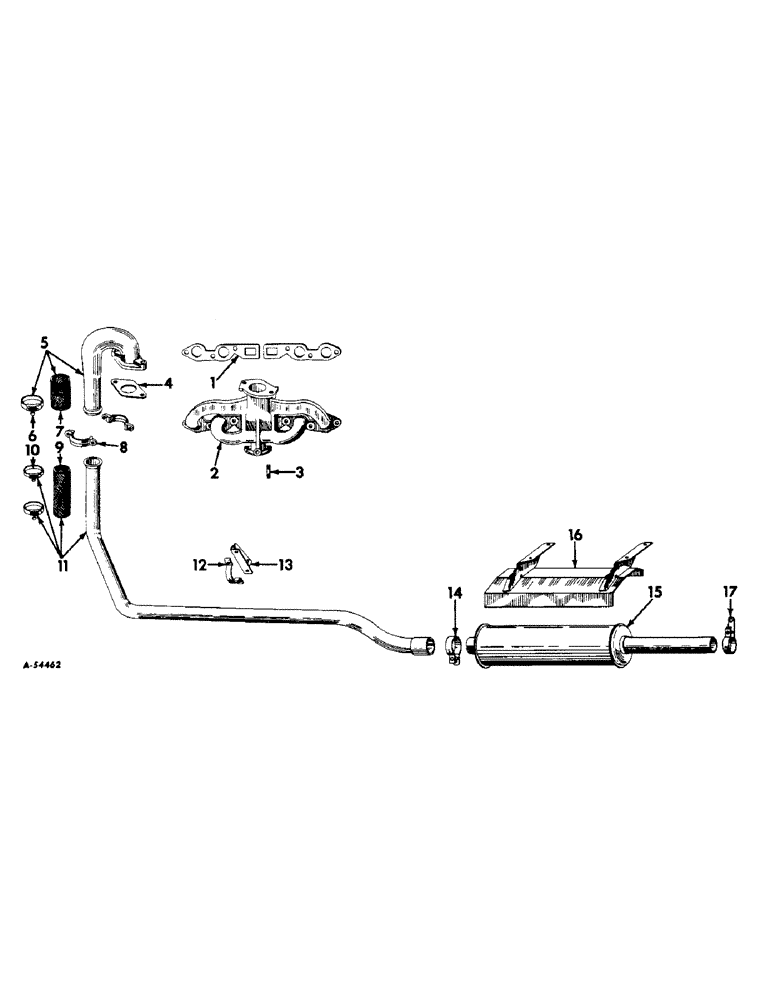

Запчасти Case IH 2404 (018) - CARBURETED ENGINE, EXHAUST SYSTEM, FOR INTERNATIONAL TRACTORS EQUIPPED W/UNDERSLUNG EXHAUST MUFFLER (01) - ENGINE

1

352014R3

GASKET

intake and exhaust manifold

2шт.

2

369645R12

MANIFOLD

W/PLUG ASSEMBLY, intake and exhaust (gasoline Engines)

1шт.

2

372262R11

MANIFOLD W/PLUG ASSEMBLY, intake and exhaust (LP Gas Engines)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto sq. hd. pipe

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8" CI sq-hd pipe (optional with 445684) (replaces 103865)

1шт.

445684

PLUG

1/8" sq-hd. stl pipe (optional with 445671) (replaces 103877)

1шт.

107317

GROOVED PIN,3/16" x 1/2", Type A

PLUG, 3/16 x 1/2 drainhole

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto sq hd. pipe

1шт.

3

50705D

STUD

, Serial Range: carburetor-manifold

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

4

368482R1

GASKET

exhaust pipe elbow

1шт.

5

372836R91

ELBOW

ASSEMBLY, exhaust pipe

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8" cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

46364H

CLAMP

exhaust pipe elbow tape

1шт.

7

372835R1

TAPE, exhaust pipe elbow

1шт.

8

362300R1

CLAMP

exhaust pipe elbow

2шт.

120376

NUT,5/16"-18, G5

2шт.

180084

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

SCREW, 5/16-18 x 1-5/8" cd-pltd. cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

370639R1

TAPE

exhaust pipe

1шт.

10

29979D

CLAMP

exhaust pipe tape

2шт.

11

375605R11

PIPE

ASSEMBLY, exhaust

1шт.

12

369838R1

CLAMP

exhaust pipe support

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

369837R11

BRACKET ASSEMBLY, exhaust pipe support

1шт.

14

48889DA

CLAMP

exhaust muffler front support

1шт.

102635

NUT,3/8"-16, G5

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

360720R91

MUFFLER

exhaust

1шт.

16

369842R11

SHIELD ASSEMBLY, muffler NUT, 1/4"

4шт.

157715

SCREW, 1/4 x 1/2" cr-rec-truss-hd-mach.

4шт.

17

369839R1

CLAMP

exhaust muffler rear support

1шт.

102635

NUT,3/8"-16, G5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

61252H

WASHER

15/32 x 3/4" x 11 ga.

1шт.
