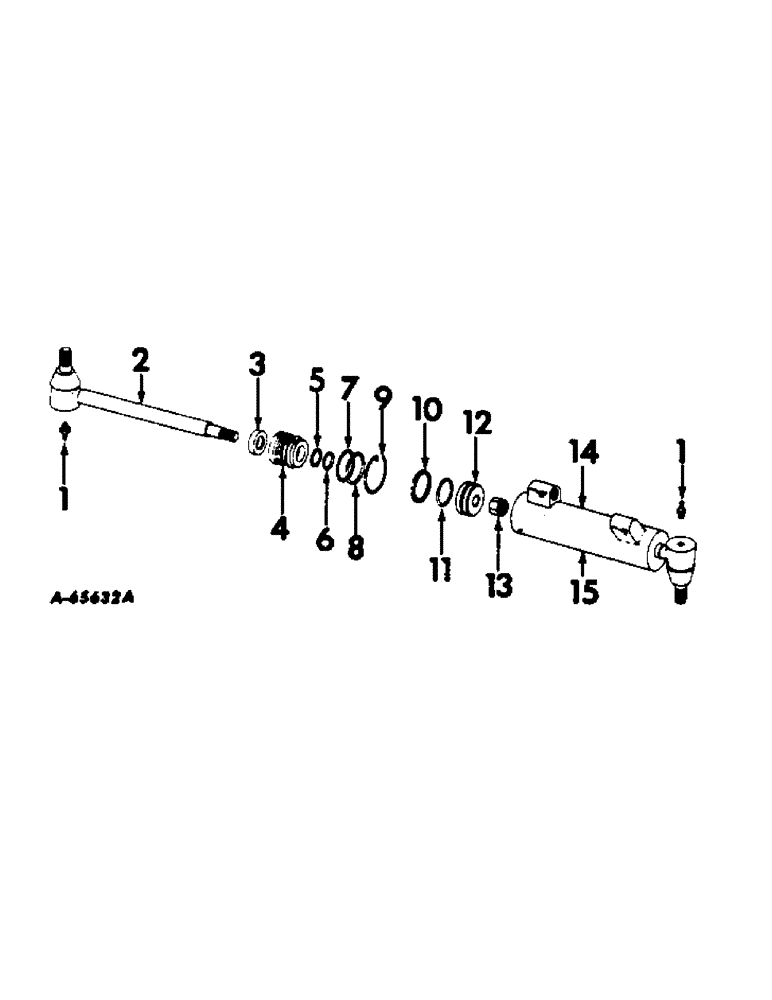

Запчасти Case IH 2404 (084) - STEERING MECHANISM, HYDRAULIC POWER STEERING CYLINDER, INTERNATIONAL SERIES Steering Mechanism

377210R91

CYLINDER ASSEMBLY, power steering (order package 383131R91) (UNIT A), Serial Range: 501-3392

1шт.

383096R91

CYLINDER ASSEMBLY, power steering (UNIT B) 3393 up

1шт.

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight 1/4"-28 NPT x .54" lg

2шт.

2

377216R11

ROD ASSEMBLY, piston

1шт.

3

377218R91

WIPER SEAL

SEAL, piston rod wiper

1шт.

4

377221R1

HEAD, power steering cylinder

1шт.

380940R1

WIRE cylinder head locking

1шт.

5

377231R1

BACK-UP RING

WASHER, piston rod o-ring back-up

1шт.

6

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

piston rod (7/8 x 1-1/8 x 1/8")

1шт.

7

377230R1

BACK-UP RING

WASHER, cylinder head o-ring back-up

1шт.

8

290987R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

cylinder head (1-3/4 x 2 x 1/8")

1шт.

9

377232R1

RETAINER, cylinder head

1шт.

10

377220R1

RING

piston

1шт.

11

252482R1

O-RING

piston (1-1/2 x 1-3/4 x 1/8")

1шт.

12

377219R1

PISTON, power steering cylinder

1шт.

13

18453R1

NUT,5/8"-18

piston lock

1шт.

14

377211R11

TUBE ASSEMBLY, hydraulic power steering cylinder (order package 383132R91) (UNIT A)

1шт.

383097R11

TUBE ASSEMBLY, hydraulic power steering cylinder (UNIT B) 10.3" Length

1шт.

15

381060R1

INSULATOR

COVER, dust

2шт.

386696R91

KIT

CYLINDER SERVICE (Consists of ref. nos. 3, 5, 6, 7, 8, 10 and 11)

1шт.

383131R91

PACKAGE, power steering cylinder service (UNIT A) (Consists of (1) cylinder 383096R91, (2) connector 9410202, (1) hose and tube 383099R91, (1) hose and tube 383100R91, (2) o-ring 364839R1)

1шт.

383132R91

PACKAGE, power steering cylinder tube service (UNIT A) (Consists of (2) connector 9410202, (1) hose and tube 383099R91, (1) hose and tube 383100R91, (2) o-ring 364839R1, (1) tube 383097R11)

1шт.
