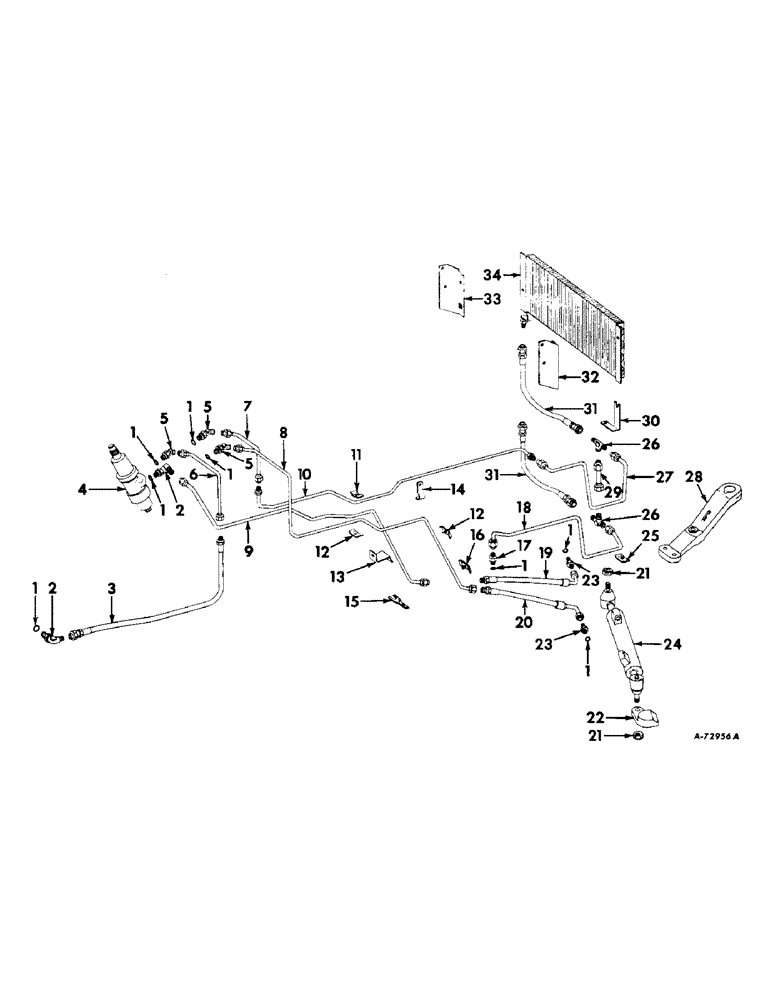

Запчасти Case IH 2404 (079) - STEERING MECHANISM, POWER STEERING, INTERNATIONAL SERIES WITH 1/2 INCH O.D. TUBING, 3676 UP Steering Mechanism

1

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

8шт.

2

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

w/NUT and WASHER ASSEMBLY, 3/8" tube 90 deg. (O-RING type)

2шт.

3

469779R91

HOSE ASSEMBLY, power steering pressure

1шт.

4

382924R91

UNIT ASSEMBLY, power steering (for components see list of parts under details of "POWER STEERING UNIT")

1шт.

373090R1

SCREW, 5/16 x 1" twelve pt. cap

3шт.

5

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

w/NUT and WASHER ASSEMBLY, 3/8" tube 45 deg. (O-RING type)

3шт.

6

381882R11

TUBE ASSEMBLY, power steering pressure

1шт.

7

381067R11

TUBE ASSEMBLY, power steering return

1шт.

8

378772R11

TUBE ASSEMBLY, power steering cylinder, piston end

1шт.

9

378771R11

TUBE ASSEMBLY, power steering cylinder, rod end

1шт.

10

382450R11

TUBE ASSEMBLY, power steering to oil cooler-rear

1шт.

11

378775R1

BRACKET, power steering cylinder tubes

1шт.

12

378776R1

CLAMP, power steering cylinder tubes

2шт.

25-114

NUT,1/4"-28, G5

1/4 NF

2шт.

181315

BOLT,Hex, 1/4" - 28 x 1", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

181314

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5

SCREW, 1/4-28 x 7/8" hex-hd.

1шт.

13

378773R1

BRACKET, power steering cylinder tubes

1шт.

14

380733R1

BRACKET, power steering to oil cooler tube

1шт.

15

384220R1

BRACKET, power steering cylinder tube

1шт.

16

369758R11

CLAMP, power steering cylinder tube SCREW, 1/4 x 3/4" cap

1шт.

17

382449R1

CONNECTOR, ELEC

CONNECTOR, flow divider reducer

1шт.

18

382446R11

TUBE ASSEMBLY, oil cooler return

1шт.

19

383099R91

HOSE

and TUBE ASSEMBLY, power steering cylinder-rod end

1шт.

20

383100R91

HOSE and TUBE ASSEMBLY, power steering cylinder-piston end

1шт.

21

374548R1

SLOTTED NUT

power steering cylinder

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

PIN, split (Cotter), 1/8" x 1-3/8"

2шт.

22

378452R1

BRACKET, power steering cylinder (UNIT A)

1шт.

23

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, power steering cylinder hose

2шт.

24

383096R91

CYLINDER ASSEMBLY, power steering (for components see list of parts under details of "POWER STEERING CYLINDER")

1шт.

25

369758R11

CLAMP ASSEMBLY, oil cooler tubes

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4" hex-hd.

1шт.

26

9402982

TEE,3/4"-16, 37 Degree

oil cooler relief valve

2шт.

27

382447R11

TUBE ASSEMBLY, power steering to oil cooler-front

1шт.

28

377188R2

ARM, steering gear

1шт.

29

383887R92

PIPE FITTING

VALVE ASSEMBLY, oil cooler relief

1шт.

30

382448R1

BRACKET, oil cooler tubes SCREW, 1/4 x 1" cap

1шт.

31

382445R91

HOSE ASSEMBLY, oil cooler inlet and outlet

2шт.

32

380619R11

BRACKET ASSEMBLY, oil cooler RH

1шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 3/8", G5, Full Thd

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065 ga.

1шт.

33

380618R11

BRACKET ASSEMBLY, oil cooler LH

1шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 3/8", G5, Full Thd

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16" x .065 ga.

1шт.

34

380486R91

COOLER ASSEMBLY, oil

1шт.

380487R91

BLADE ASSEMBLY, fan (illustrated with "FAN, THERMOSTAT and WATER PUMP")

1шт.

181315

BOLT,Hex, 1/4" - 28 x 1", Gr 5

4шт.

318168R1

SPACER, fan blade

1шт.

378395R1

CAP

steering wheel monogramed

1шт.

350708R1

GASKET

hydraulic pump (illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

373070R91

JOINT ASSEMBLY, center and rear universal

1шт.

21070R1

NUT,3/8"-16, G8

3/8-16

1шт.

374831R1

SCREW,3/8" - 16 x 1 3/4", Gr 8

3/8-16 x 1-3/4" cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

124552

SCREW

no. 13 Woodruff

1шт.

377002R91

MANIFOLD ASSEMBLY, hydraulic pump (Illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4" cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

313579R1

SNAP RING

O-RING, flow control valve and manifold flange (15/16 x 1-3/16 x 1/8") (Illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

372764R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

flow control valve and manifold flange (1-1/8 x 1-5/16 x 3/32") (Illustrated with "HYDRAULIC POWER SUPPLY")

2шт.

21249D

PIN

rear steering shaft universal joint

1шт.

368633R92

PUMP

ASSEMBLY, hydraulic (Illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4" cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

373085R1

SHAFT, center steering

1шт.

377029R92

VALVE ASSEMBLY, flow control (Illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

377142R1

WHEEL, steering worm

1шт.

377163R1

WORM, steering

1шт.

373087R1

YOKE

front steering shaft rear universal joint

1шт.
