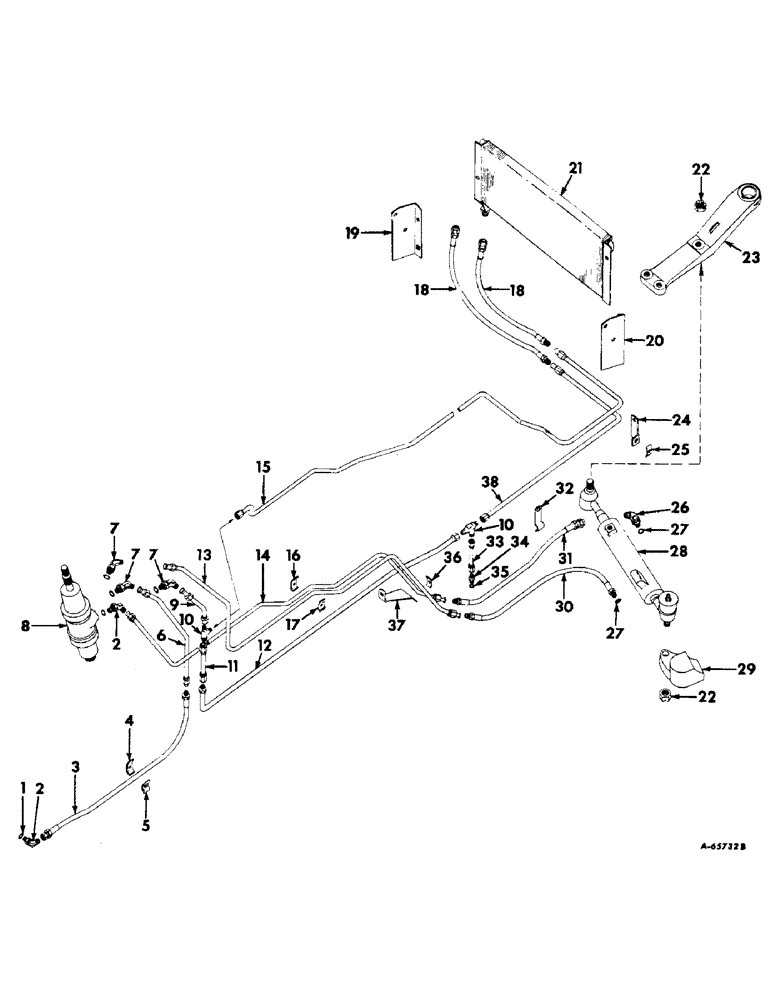

Запчасти Case IH 2404 (077) - STEERING MECHANISM, POWER STEERING, INTERNATIONAL SERIES TRACTORS WITH 3/8" O.D. TUBING, 501 TO 3675 Steering Mechanism

1

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tube elbow

5шт.

2

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

w/NUT and WASHER ASSEMBLY, 3/8" TUBE 90deg. (O-RING type)

2шт.

3

469779R91

HOSE ASSEMBLY, power steering pressure 1863 up

1шт.

4

380732R1

CLAMP, power steering tube, Serial Range: 501-1862

1шт.

5

378775R1

BRACKET, power steering tube, Serial Range: 501-1862

1шт.

272495

SCREW, 1/4 x 1" ov-hd.

1шт.

6

378769R11

TUBE ASSEMBLY, hydraulic power steering (order TUBE ASSEMBLY, 381882R11 and HOSE, 469779R91), Serial Range: 501-1862

1шт.

6

381882R11

TUBE ASSEMBLY, hydraulic power steering 1863 up

1шт.

7

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

w/NUT and WASHER ASSEMBLY, 3/8" TUBE 45 deg. (O-RING type)

3шт.

8

382924R91

UNIT, hydraulic power steering (for components see list of parts under details of "Power Steering Unit")

1шт.

9

381067R11

TUBE ASSEMBLY, power steering return

1шт.

10

380782R1

TEE, power steering tube

2шт.

11

383887R92

PIPE FITTING

VALVE ASSEMBLY, oil cooler relief

1шт.

12

381069R21

TUBE ASSEMBLY, relief, Serial Range: valve-filter

1шт.

13

378772R11

TUBE ASSEMBLY, hydraulic power steering cylinder, piston end

1шт.

14

378771R11

TUBE ASSEMBLY, hydraulic power steering cylinder, rod end

1шт.

15

378770R11

TUBE ASSEMBLY, power steering to oil cooler

1шт.

16

378776R1

CLAMP, power steering cylinder tubes

1шт.

25-114

NUT,1/4"-28, G5

1/4 NF

2шт.

181315

BOLT,Hex, 1/4" - 28 x 1", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

181314

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5

SCREW, 1/4-28 x 7/8" hex-hd.

1шт.

17

378775R1

BRACKET, power steering cylinder tubes

1шт.

18

380791R91

HOSE, oil cooler (3/8" ID x 21" long)

2шт.

19

380618R11

BRACKET ASSEMBLY, oil cooler, LH

1шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 3/8", G5, Full Thd

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga.

1шт.

20

380619R11

BRACKET ASSEMBLY, oil cooler, RH

1шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 3/8", G5, Full Thd

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga.

1шт.

21

380486R91

COOLER ASSEMBLY, oil

1шт.

22

374548R1

SLOTTED NUT

power steering cylinder

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

PIN, split (Cotter), 1/8" x 1-3/8"

2шт.

23

377188R2

ARM, steering gear

1шт.

24

380734R1

BRACKET, oil cooler tube

1шт.

25

381394R1

CLAMP

power steering return tube NUT, 1/4" cd-pltd. SCREW, 1/4 x 7/8" cap WASHER, 1/4" lock

1шт.

26

381567R91

ELBOW, power steering cylinder

1шт.

381566R1

PLUG, cylinder elbow orifice

1шт.

27

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose

2шт.

28

NSS

NOT SOLD SEPARAT

CYLINDER ASSEMBLY, power steering (for components see list of parts under details of "Power Steering Cylinder")

1шт.

29

378452R1

BRACKET, power steering cylinder (tractors without heavy duty front axle)

1шт.

30

379146R91

HOSE ASSEMBLY, power steering cylinder tube (1/4" ID x 18" long)

1шт.

31

381208R91

HOSE ASSEMBLY, power steering cylinder tube (1/4" ID x 13-1/2" long)

1шт.

32

380733R1

BRACKET, power steering to oil cooler tube

1шт.

33

381068R11

TUBE ASSEMBLY, Serial Range: tee-filter

1шт.

34

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, filter tube

1шт.

35

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, filter tube connector

1шт.

36

378776R1

CLAMP, power steering cylinder tube

1шт.

109084

NUT,1/4"-20, G5

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 NF x 1" cap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

378773R1

BRACKET, power steering cylinder tube

1шт.

38

380736R11

TUBE ASSY, tee to oil cooler

1шт.

380487R91

BLADE ASSEMBLY, fan (illustrated with "FAN, THERMOSTAT and WATER PUMP")

1шт.

181315

BOLT,Hex, 1/4" - 28 x 1", Gr 5

4шт.

318168R1

SPACER, fan blade

1шт.

378395R1

CAP

steering wheel monogramed

1шт.

350708R1

GASKET

hydraulic pump (illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

373070R91

JOINT ASSEMBLY, center and rear universal

1шт.

21070R1

NUT,3/8"-16, G8

3/8-16 NF

1шт.

374831R1

SCREW,3/8" - 16 x 1 3/4", Gr 8

3/8-16 x 1-3/4" cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

no. 13 Woodruff

1шт.

377002R91

MANIFOLD ASSEMBLY, hydraulic pump (Illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4" cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

313579R1

SNAP RING

O-RING, flow control valve and manifold flange (15/16 x 1-3/16 x 1/8") (Illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

372764R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

flow control valve and manifold flange (1-1/8 x 1-5/16 x 3/32") (Illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

21249D

PIN

rear steering shaft universal joint

1шт.

368633R92

PUMP

ASSEMBLY, hydraulic (Illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8 x 3-1/4" cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

373085R1

SHAFT, center steering

1шт.

377029R92

VALVE ASSEMBLY, flow control (Illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

377142R1

WHEEL, steering worm

1шт.

377163R1

WORM, steering

1шт.

373087R1

YOKE

front steering shaft rear universal joint

1шт.
