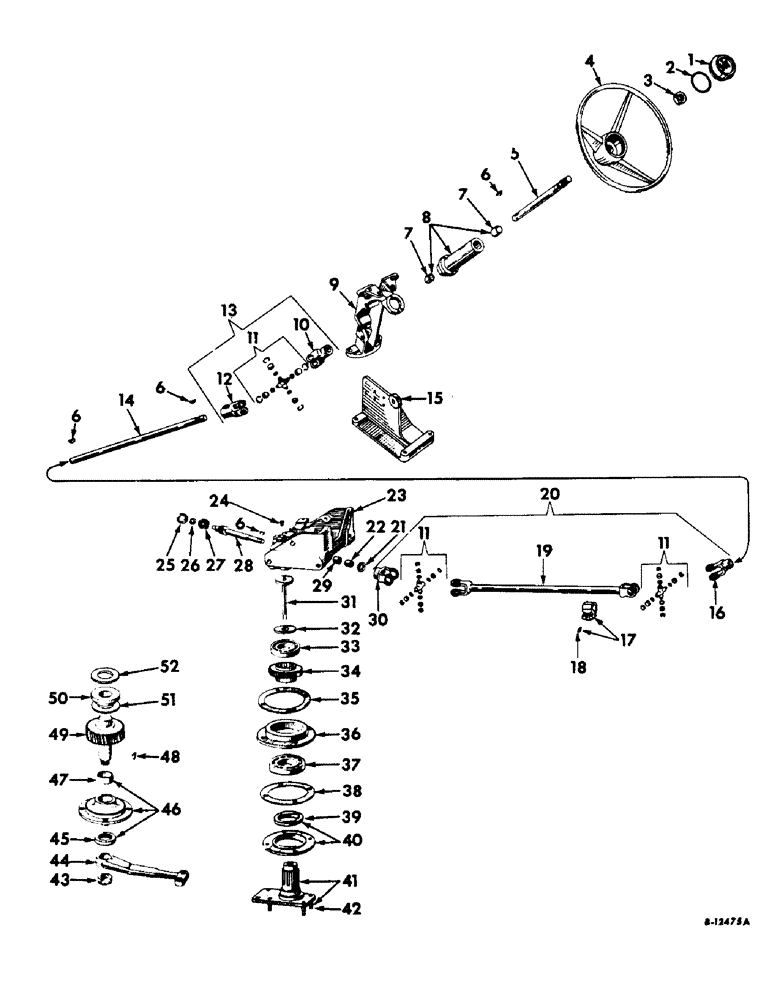

Запчасти Case IH 2404 (070) - STEERING MECHANISM Steering Mechanism

1

68837C3

CAP

Steering wheel monogrammed (tractors without power steering) (Replaces 378394R1)

1шт.

1

68837C3

CAP

Steering wheel monogrammed (tractors with power steering) (Replaces 378395R1)

1шт.

2

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

RETAINER, steering wheel cap

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

Steering wheel

1шт.

4

366557R2

STEERING WHEEL

(18" dia)

1шт.

5

369710R1

SPARE PART Rear steering (tractors w/o power steering)

1шт.

557270R1

WASHER

29/32 x 1-1/4" x .119 ga.

1шт.

6

103462

KEY

No. 13 Woodruff (one used on tractors with power steering)

4шт.

6

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

No. 13 Woodruff (tractors with power steering)

1шт.

7

378699R1

BUSHING,22.25mm ID x 25.43mm OD x 22.35mm L

BEARING, rear steering shaft upper support (tractors without power steering)

2шт.

8

378698R91

SPARE PART ASSEMBLY, rear steering shaft upper

1шт.

9

369704R1

SPARE PART Rear steering shaft lower

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

(Tractors without power steering)

3шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

(Tractors without power steering)

3шт.

103323

LOCK WASHER,1/2"

1шт.

10

350256R1

YOKE

UNIVERSAL JOINT YOKE Rear steering shaft universal (tractors without power steering)

1шт.

17348R1

LOCK PIN,3/16" x 1 3/8", Slotted

1шт.

10

373071R1

SPARE PART Rear steering shaft universal (tractors with power steering)

1шт.

21249D

PIN

SPARE PART 3/16 x 1-3/8" groove

1шт.

11

150635R92

SPIDER

BEARING and SPIDER ASSEMBLY

3шт.

12

369657R1

YOKE

SPARE PART Rear steering shaft universal adjusting

1шт.

21070

NUT, 3/8-16

1шт.

374831R1

SCREW,3/8" - 16 x 1 3/4", Gr 8

3/8-16 x 1-3/4" cap

1шт.

103321

LOCK WASHER,3/8"

1шт.

13

369709R91

SPARE PART ASSY, universal (tractors without power steering)

1шт.

13

373070R91

SPARE PART ASSY, universal (tractors with power steering)

1шт.

14

369708R1

SPARE PART Center steering (tractors without power steering)

1шт.

14

373085R1

SPARE PART Center steering (tractors with power steering)

1шт.

15

376108R1

SPARE PART Rear steering shaft lower support

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 x 2-1/2" cap

2шт.

16

350256R1

YOKE

UNIVERSAL JOINT YOKE Front without steering shaft rear universal (tractors without power steering)

1шт.

17348R1

LOCK PIN,3/16" x 1 3/8", Slotted

1шт.

16

373087R1

YOKE

UNIVERSAL JOINT YOKE Front steering shaft rear universal (tractors with power steering)

1шт.

17

351126R12

BEARING CARRIER

ASSY, front steering shaft support

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

18

66584D

FITTING

3/16" straight drive type lubrication

1шт.

19

369707R91

SPARE PART SHAFT ASSEMBLY, front steering

1шт.

20

369706R91

SPARE PART SHAFT ASSEMBLY, front steering and universal joint (tractors without power steering)

1шт.

20

373086R91

SPARE PART SHAFT ASSEMBLY, front steering and universal joint (tractors with power steering)

1шт.

21

381721R91

OIL SEAL

OIL, steering worm shaft

1шт.

22

375592R1

BUSHING

Steering worm

1шт.

23

375590R11

SPARE PART ASSY, front (Composed of (1) bearing 375705R91, (1) bushing 375592R1, (1) housing 375590R1 (NSS), (1) oil seal 381721R91, (1) plug 356568R1, (1) plug 444576, (1) plug 444660)

1шт.

23

378563R11

SPARE PART ASSY, front (International tractors with Heavy Duty Grille) (Composed of (1) bearing 375705R91, (1) bushing 375592R1, (1) housing 378563R1 (NSS), (1) oil seal 381721R91, (1) plug 444574, (1) plug 444660, (1) plug 356568R1)

1шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

Pipe

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

Pipe

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2" cap

3шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8-11 x 2-3/4" cap

3шт.

446220

WASHER

1/2 x 1-1/8" x .083 ga.

1шт.

24

356568R1

SPARE PART VENT, steering gear housing

1шт.

25

6660DA

BEARING CAP

Steering worm bearing

1шт.

26

69442D

NUT

Steering worm

1шт.

27

ST678

BALL BEARING,25mm ID x 52mm OD x 15mm W

Steering worm

1шт.

28

379149R1

SPARE PART WORM, steering (International Series without Power Steering)

1шт.

28

377163R1

SPARE PART WORM, steering (Farmall Series) (International Series w/Power Steering)

1шт.

103385

COTTER PIN,1/8" x 1"

1шт.

29

375705R91

NEEDLE BEARING

Steering worm shaft

1шт.

30

350256R1

YOKE

UNIVERSAL JOINT YOKE Front steering shaft front universal

1шт.

17348R1

LOCK PIN,3/16" x 1 3/8", Slotted

1шт.

31

52953DX

SHAFT

SPARE PART WASHER AND STUD ASSEMBLY, steering worm wheel upper bearing (Farmall Series)

1шт.

451018

NUT

1/2 NF type LL lock

1шт.

25-118

NUT,1/2"-20, G5

1шт.

103323

LOCK WASHER,1/2"

1шт.

32

352417R1

WASHER

SEAL, steering worm wheel shaft (Farmall Series)

1шт.

33

ST278

BEARING, BALL,49.99mm ID x 90mm OD x 20mm W

Steering worm wheel upper (Farmall Series)

1шт.

34

377143R1

GEAR

SPARE PART Steering worm wheel (20 teeth) (Farmall Series)

1шт.

35

52951D

GASKET

Steering worm wheel shaft lower bearing cage

1шт.

36

8324D

CAGE

Steering worm wheel shaft lower bearing (Farmall Series)

1шт.

37

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

Steering worm wheel shaft lower (Farmall Series)

1шт.

38

52952D

GASKET

Steering worm wheel lower bearing cage cover (Farmall Series)

1шт.

39

360457R91

SEAL

OIL SEAL, steering worm wheel shaft (used with COVER ASSEMBLY, 350009R12) (Farmall Series)

1шт.

39

383395R91

OIL SEAL

Steering worm wheel shaft (used with COVER, 383298R1) (Farmall Series)

1шт.

40

383298R1

BEARING COVER

COVER, steering worm wheel shaft lower bearing cage (Farmall Series)

1шт.

40

350009R12

COVER ASSEMBLY, steering worm wheel shaft lower bearing cage (order COVER, 383298R1 and OIL SEAL, 383395R91) (Farmall Series)

1шт.

376106R1

SPARE PART 7/16-14 x 1-1/2" cap (in hole on left side)

1шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

7/16-14 x 1-1/2" cap

3шт.

115550

LOCK WASHER,Int Tooth, 7/16"

4шт.

41

53001DAXA

SPARE PART ASSY, steering worm wheel (Farmall Series)

1шт.

42

53002DB

STUD

STUD, steering worm wheel shaft (Farmall Series)

4шт.

9411648

LOCK NUT,1/2"-20, GC

Stover lock

4шт.

43

70121D

NUT

Steering gear arm (International Series without Power Steering)

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

1шт.

43

219776

RING

Steering gear arm (International Series with Power Steering)

1шт.

44

376349R1

SPARE PART Steering gear (International Series without Power Steering)

1шт.

44

377188R2

SPARE PART Steering gear (International Series with Power Steering)

1шт.

45

372370R91

SEAL

OIL, steering worm gear cage (International Series)

1шт.

46

369699R11

SPARE PART ASSY, steering worm gear (International Series)

1шт.

376107R1

BOLT,Hex, 7/16" - 14 x 1 1/4", W/ Nylon Pellet

SCREW, 7/16-14 x 1-1/4" cap (in hole on left side)

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

3шт.

103322

LOCK WASHER,7/16"

4шт.

47

369700R1

BUSHING

Steering worm gear cage (International Series)

1шт.

48

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

No. A Woodruff (International Series without Power Steering)

1шт.

49

379150R1

SPARE PART Steering worm (International Series without Power Steering)

1шт.

49

377142R1

SPARE PART Steering worm (International Series with Power Steering)

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

1шт.

50

369702R1

BUSHING

SPARE PART ADAPTER, steering worm gear shaft upper bearing (International Series)

1шт.

51

393100R1

SHIM

Steering worm gear lower, .021 (International Tractors)

1шт.

51

393101R1

WASHER

SHIM, steering worm gear lower, .033 (International Tractors)

1шт.

52

393102R1

SHIM

Steering worm gear upper, .008 (International Tractors)

1шт.
