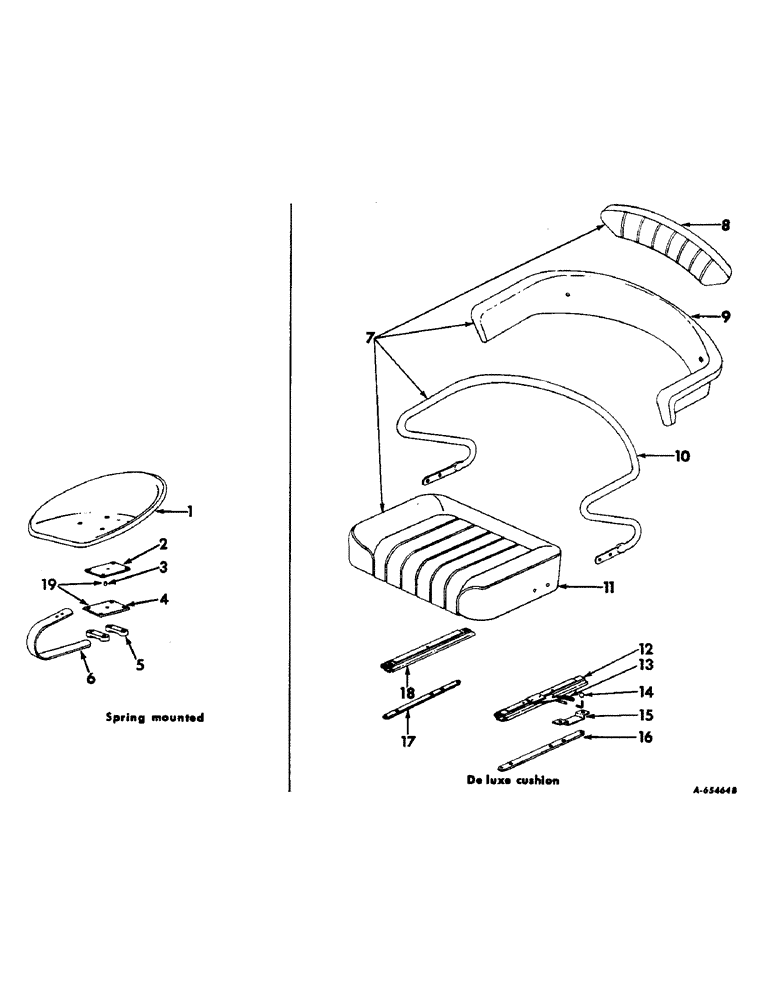

Запчасти Case IH 2404 (129) - SEAT AND SUPPORTS, SEAT Seat & Supports

1

351880R92

SEAT

ASSEMBLY (plain)

1шт.

1

357518R92

SEAT

ASSEMBLY (deluxe upholstered)

1шт.

2

373542R1

BRACKET, seat adjustment upper

1шт.

3

141236

DOWEL

PIN, 3/8 x 1/2" dowel (lower bracket)

1шт.

4

373542R1

BRACKET, seat adjustment lower

1шт.

181397

BOLT,Hex, 7/16" - 20 x 1 1/4", Gr 5

SCREW, 7/16-20 NF x 1-1/4" cap

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

5

375999R1

CLAMP, seat adjustment

2шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

Front clamp Hex, 5/16"-18 x 1 1/2", G5

2шт.

243119R1

BOLT

SCREW, 5/16 x 1" cap (rear clamp)

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

378103R1

SPRING, seat

1шт.

7

376903R92

SEAT ASSEMBLY, deluxe cushion

1шт.

8

380684R92

CUSHION

ASSEMBLY, back

1шт.

9

380682R1

SUPPORT

back

1шт.

19905R1

SCREW, 1/4-20 x 7/8" cd-pltd. cr-rec-truss-hd. mach.

5шт.

380683R1

WASHER, spring

5шт.

10

380681R1

SUPPORT

tubular back

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4" cd-pltd. cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

380680R92

CUSHION

ASSEMBLY, seat

1шт.

407040R1

COVER

Seat cushion cover

1шт.

12

379066R91

RAIL w/SPRING ASSEMBLY, LH

1шт.

154000

NET WRAP,Cross Fil Hd, 5/16" - 18 x 1 1/4"

SCREW, 5/16-18 x 1-1/4" cr-rec-fil-hd. cd-pltd. mach.

2шт.

217907

SUPPORT

SCREW, 5/16-18 x 5/8" soc-hd.

1шт.

138223

SUPPORT

5/16-18 x 1-1/4" soc-hd.

1шт.

380470R1

WASHER, 5/16" light lock

4шт.

13

96775R1

SPRING

adjuster

1шт.

14

148689R1

KNOB

seat adjuster

1шт.

15

371630R1

GUIDE, handle

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1" cd-pltd. cap

2шт.

180382

WASHER, 3/8" cd-pltd. lock

2шт.

16

379068R11

SUPPORT ASSEMBLY, LH seat

1шт.

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

5/16-18 x 1" fl-hd mach.

3шт.

17

379069R11

SUPPORT ASSEMBLY, RH seat

1шт.

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

5/16 x 1" fl-hd. mach.

3шт.

18

379067R91

RAIL ASSEMBLY, RH

1шт.

154000

NET WRAP,Cross Fil Hd, 5/16" - 18 x 1 1/4"

SCREW, 5/16-18 x 1-1/4" cr-rec-fil-hd. cd-pltd. mach.

2шт.

217907

SUPPORT

SCREW, 5/16-18 x 5/8" soc-hd.

1шт.

61-33120

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16-18 x 1-1/4" soc-hd.

1шт.

380470R1

WASHER, 5/16" light lock

4шт.

19

373542R11

BRACKET ASSY., seat adjustment lower

1шт.

376947R92

SEAT

PARTS ACCESSORY, deluxe cushion seat (consists of ref. nos. 7 thru 18, including attaching parts and (2) screw 376885R1, (2) screw 179816)

1шт.

351438R93

PAD

detachable seat (rubber)

1шт.

359483R91

PAD

detachable seat (jute)

1шт.
