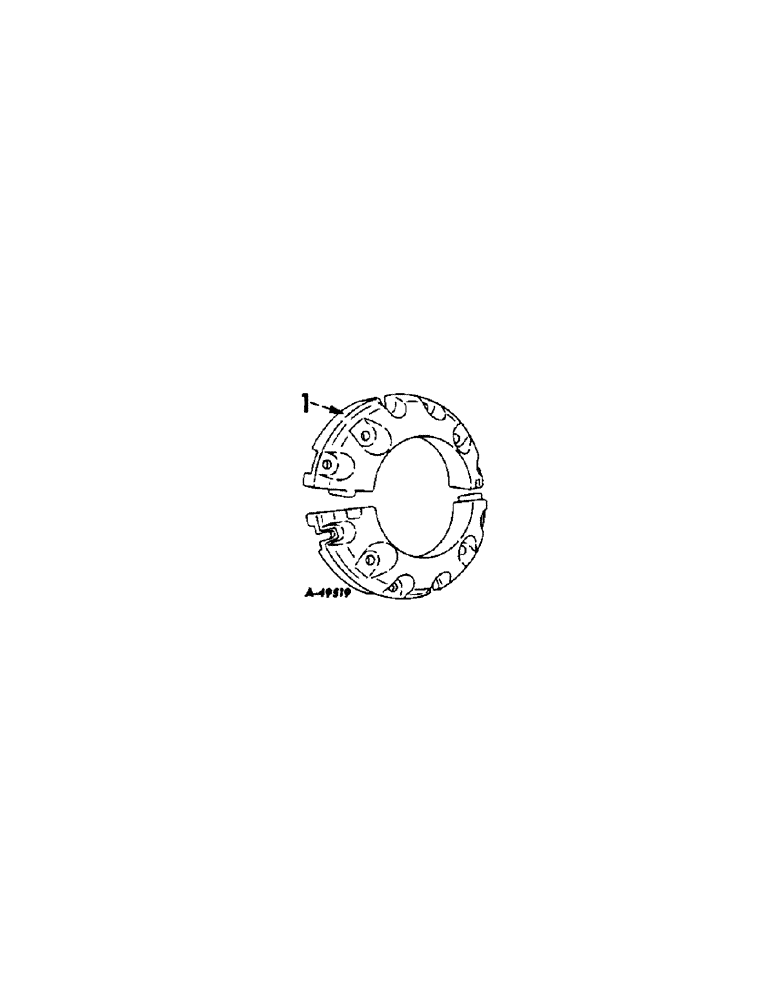

Запчасти Case IH 2404 (100[A]) - WHEELS, REAR WHEEL WEIGHTS, SPLIT TYPE, FOR USE ON TRACTORS W/24" REAR WHEELS INTERNATIONAL SERIES (11) - WHEELS

1

369509R1

WEIGHT

rear wheel-half (approx. 63 lbs.) (4 for Unit A)

1шт.

366646R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3 3/4", Gr 2

rear wheel weight

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"-11 cd-pltd.

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

1

369509R1

WEIGHT

rear wheel-half (approx. 63 lbs.) (4 for Unit B)

1шт.

369508R1

BOLT,5/8" - 11 x 5 3/4"

rear wheel weight

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"-11 cd-pltd.

8шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8" cd-pltd. jam

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
