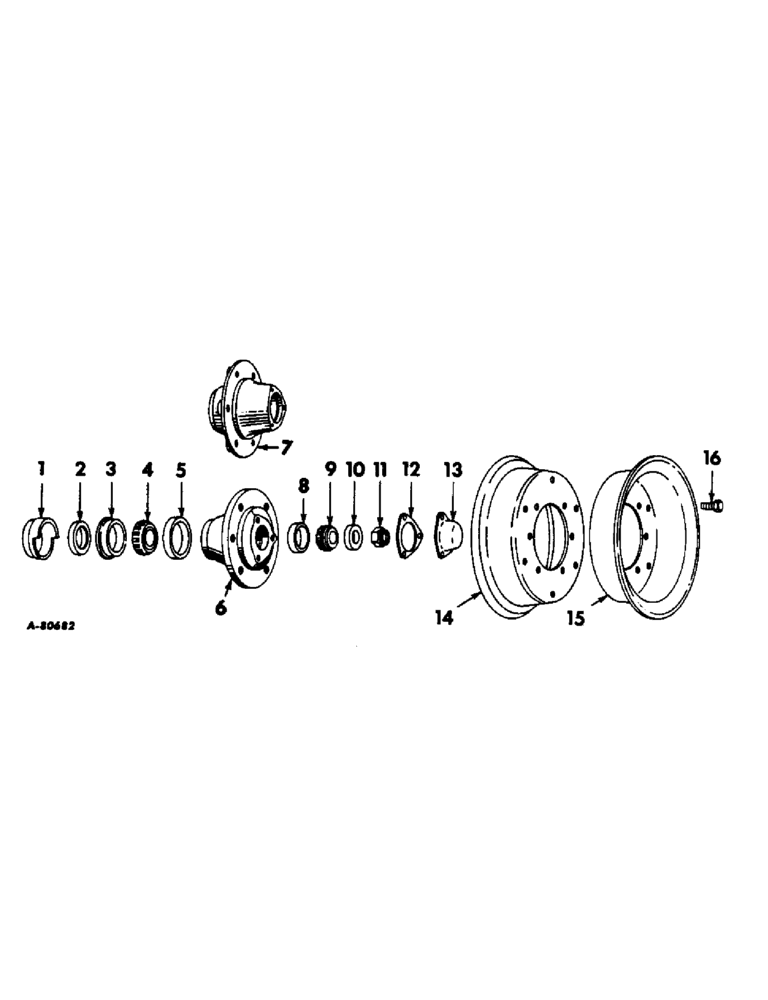

Запчасти Case IH 2404 (096) - WHEELS, FRONT WHEEL, INTERNATIONAL SERIES, FOR ORCHARD AND MOWING OPERATIONS (11) - WHEELS

1

43462D

DEFLECTOR

SHIELD, front wheel dust (2 for Unit A)

1шт.

1

48541D

SHIELD

front wheel dust (2 for Unit B)

1шт.

2

368629R91

SEAL

OIL SEAL, front wheel (2 for Unit A)

1шт.

2

48539DA

PACKING RING

OIL SEAL, front wheel (2 for Unit B)

1шт.

3

49117D

CUP ASSY.

RING, front wheel oil seal wear (2 for Unit A)

1шт.

3

48548D

WASHER

front wheel oil seal (2 for Unit B)

1шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, front wheel inner bearing (2 for Unit A)

1шт.

4

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, front wheel inner bearing (2 for Unit B)

1шт.

5

651817R1

BEARING CUP

CUP, front wheel inner bearing (2 for Unit A)

1шт.

5

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel inner (2 for unit B)

1шт.

6

386080R11

HUB ASSEMBLY, front wheel (2 for Unit A) (Lo-Boy Tractors 2404 w/serial no. 8640 and below) (Composed of (1) cup 651814R1, (1) cup 651817R1, (1) hub 386080R1 (NSS), (1) ring 49117D)

1шт.

6

393862R11

HUB ASSY, front wheel (Lo-Boy Tractors 2404 w/serial no. 8641 and above) (Composed of (1) cup 651817R1, (1) cup 651814R1, (1) hub 393862R1 (NSS), (1) ring 49117D)

1шт.

7

399468R11

HUB ASSEMBLY, front wheel (2 for Unit B) (Replaces 386088R11) (Composed of (1) cup 371883R1, (1) cup 618024R1, (1) hub 399468R1 (NSS), (1) retainer 48548D)

1шт.

8

651814R1

BEARING CUP

CUP, front wheel outer bearing (2 for Unit A)

1шт.

8

371883R1

BEARING CUP

Front wheel outer (2 for Unit B)

1шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, front wheel outer bearing (2 for Unit A)

1шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

9

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Front wheel outer (2 for Unit B)

1шт.

10

369936R1

WASHER

front wheel outer bearing retainer (2 for Unit A)

1шт.

10

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

front wheel outer bearing retainer (2 for Unit B)

1шт.

11

102649

SLOTTED NUT,5/8"-18, G5

NUT, , Front wheel outer bearing retainer, 2 for unit A 5/8"-18, G5

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

11

427639

SLOTTED NUT,3/4"-16, G5

NUT, front wheel outer bearing retainer (2 for Unit B)

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

12

49116D

GASKET,0.79mm Thk

front wheel hub cap (2 for Unit A)

1шт.

12

369860R1

GASKET,0.79mm Thk

front wheel hub cap (2 for Unit B)

1шт.

13

49115D

CYLINDER END CAP

CAP, front wheel hub (2 for Unit A)

1шт.

13

369859R1

CAP

front wheel hub (2 for Unit B)

1шт.

179814

SPACER

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

14

386081R1

WHEEL

front inner half (Double disc type 6.00F-10 for 9.00-10 tire)

2шт.

15

386082R1

WHEEL

front outer half (Double Disc Type 6.00F-10 for 9.00-10 tire)

2шт.

120371

NUT,1/2"-20, G5

12шт.

86837293

SHAFT

1/2-20 NF x 1 cd-pltd. cap

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

16

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting

12шт.

375128R91

KIT

PACKAGE, front wheel bearing overhaul (2 for Unit A) (Consists of (1) cone 651815R91, (1) cone 651818R91, (1) cup 651814R1, (1) cup 651817R1, (1) gasket 49116D, (1) ring 49117D, (1) seal 368629R91)

1шт.
