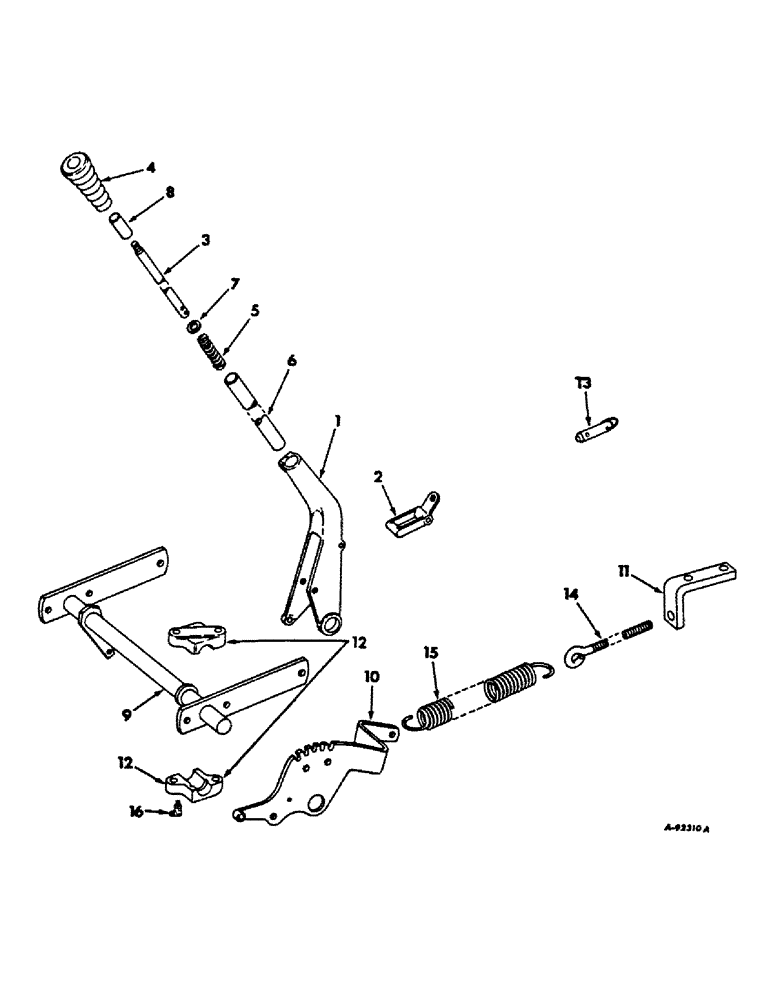

Запчасти Case IH 154 (09-07) - FRAME, MANUAL LIFT, CUB 154 LO-BOY TRACTORS WITH SERIAL NO. 11762 AND BELOW (12) - FRAME

1

405700R1

YOKE, lift handle

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

2

405704R1

LEVER, lift handle release rod

1шт.

179807

SCREW,Hex, 1/4" - 20 x 2 1/2"

1/4-20 x 2-1/2 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

3

405703R1

ROD, lift handle release

1шт.

20117R1

PIN, 1/8 x 1/2 C-Z slt spring

1шт.

4

405702R1

GRIP, lift handle

1шт.

5

359109R2

VALVE SPRING

SPRING, lift handle release rod

1шт.

6

405701R1

PIPE, lift handle

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

403356R1

RETAINER

handle release rod spring

1шт.

8

376307R2

END ASSY.

END, lift handle release rod

1шт.

9

405643R1

ROCKSHAFT ASSY, lift handle operating

1шт.

10

405692R1

SECTOR ASSY, lift handle

1шт.

21535R1

SCREW, 5/16-18 x 1-1/4 CDP hex-hd cap

1шт.

22539R1

SCREW

1/2-13 x 1 CDP hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

11

405695R1

BRACKET, helper spring

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8 hex-hd cap

2шт.

12

404908R1

BEARING

ASSY, rockshaft

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

13

517810R12

PIN,19.05mm OD x 104.39mm L

ASSY, quick attachable fast hitch

1шт.

14

405696R1

BOLT

EYEBOLT, helper spring

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

15

405697R1

SPRING

rockshaft helper

1шт.

16

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

2шт.
