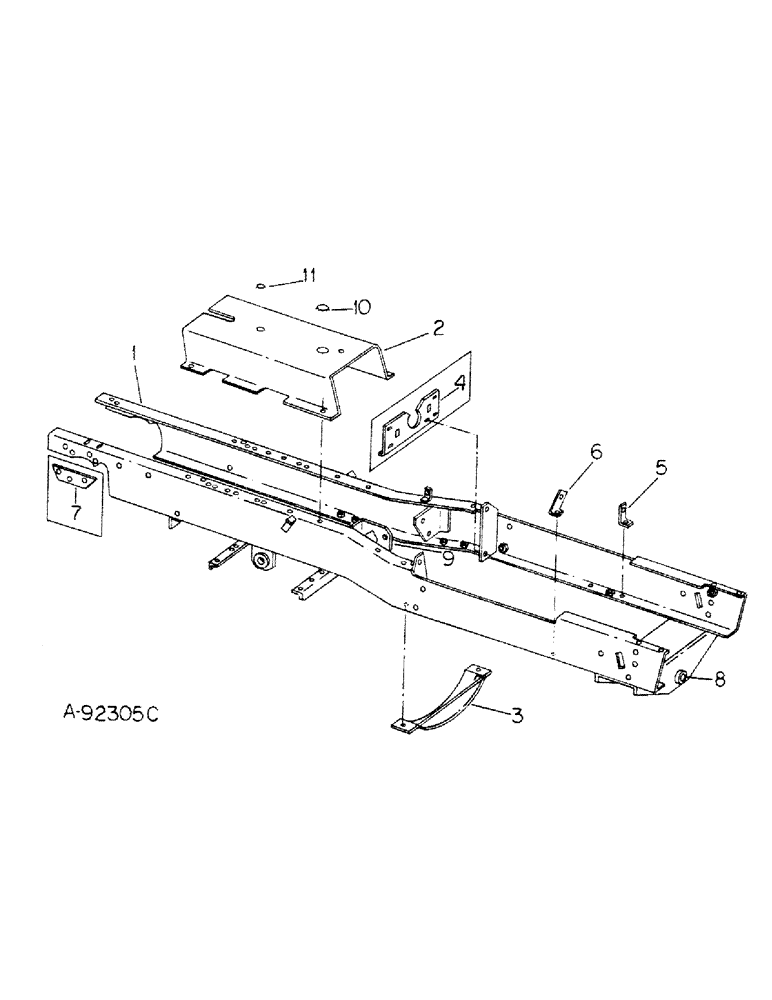

Запчасти Case IH 154 (09-01) - FRAME, MAIN FRAME AND SUPPORTS, CUB 154 LO-BOY TRACTORS WITH SERIAL NO. 21491 AND BELOW (12) - FRAME

1

530784R3

FRAME ASSY, replaces 404586R1

1шт.

519998R1

SPACER,1" XX-Strng Pipe x 2"

rear frame

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

SCREW, 3/8-16 x 2-3/4 znd hex-hd cap type 8

2шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 znd hex-hd cap

2шт.

58657C1

SCREW

1/2-13 x 3-1/4 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

390307C1

WASHER

17/32 x 1-1/16 x 3/32 znd

2шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 znd hex-hd cap, through RH rear engine flange into RH engine mounting support

2шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1-3/4 znd hex-hd cap, through LH rear engine flange and LH engine mounting support

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

404627R2

COVER

frame top

1шт.

276-1468

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

SCREW, 12-24 x 1/2 C-Z hex-hd tap

4шт.

3

404624R2

SHIELD ASSY, flywheel

1шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4-20 x 1/2 hex-hd cap

2шт.

4

404628R1

SUPPORT, front clutch main shaft brg, serial no. 18708 & below

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

4шт.

5

126293C1

ANGLE ASSY, engine bracket LH, replaces 404620R1

1шт.

404916R1

BOLT, cap front engine mounting

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

6

126294C1

ANGLE

ASSY, engine bracket RH, replaces 404622R1

1шт.

404916R1

BOLT, cap front engine mounting

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

7

527573R1

BLOCK, reinforcement, serial no. 18862 & below

1шт.

21176R1

SCREW, 1/2-13 x 3/4 hex-hd cap type 4

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

9416230

WASHER, 1/2 HV lock

1шт.

8

404618R1

HUB

front axle pivot pin front

1шт.

8

404619R1

HUB

front axle pivot pin rear

1шт.

9

404616R1

BRACKET

SUPPORT, steering gear

1шт.

10

192280

HOLE PLUG BUTTON,1 1/4"

PLUG, 1-1/4 in. button

1шт.

11

142126

DRIVEN SPROCKET

PLUG, 7/8 in. button

1шт.
