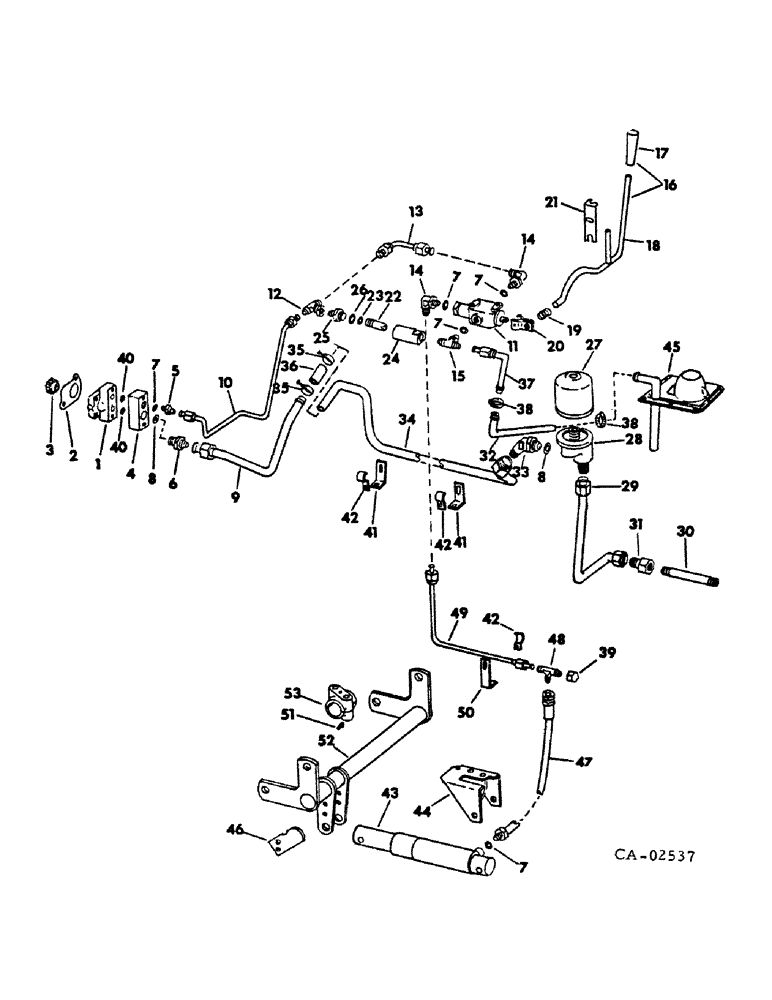

Запчасти Case IH 154 (10-04) - HYDRAULICS, HYDRAULIC LIFT, CUB LO-BOY TRACTORS WITH SERIAL NOS. 18709 TO 22331 (07) - HYDRAULICS

1

544017R91

PUMP

ASSY, hydraulic, (replaces 404870R91)

1шт.

see pg 7 - tubes will be to short - DLR will have to have new tubes madeusing old ones for pattern.

1шт.

23683R1

SCREW,Hex Soc Hd, 5/16" - 18 x 2 1/2"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

351677R1

GASKET

pump

1шт.

3

352038R1

GEAR

pump drive, 10T

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

4

404872R1

FLANGE, hyd pump

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 C-Z deg hyd flared tube short swivel

1шт.

6

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

UNION, 1-1/16-12 C-Z 37 deg hyd flared tube short swivel

1шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

5шт.

8

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

2шт.

9

544838R1

TUBE ASSY, suction short

1шт.

10

544839R1

TUBE ASSY, pressure long

1шт.

11

405812R91

VALVE ASSY, single acting control, for components see list of parts under details of single acting control valve

1шт.

179827

FRONT AXLE

2шт.

12

9410306

TEE,37 Degree, 9/16"-1 x 9/16"-18, Fem Sw Br

9/16-18 37 deg hyd flared tube 90 deg swivel

1шт.

13

404875R1

TUBE ASSY, pressure short

1шт.

14

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube ajd str thd 90 deg

2шт.

15

9411117

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Br

9/16-18 37 deg hyd flared tube adj str thd

1шт.

16

404876R91

HANDLE W/GRIP, valve

1шт.

17

391056R1

GRIP

1шт.

18

404877R1

HANDLE ASSY

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

1шт.

NLS

NO LONGER SERVICED

PIN, 7/64 x 3/4 cot.

2шт.

19

404880R1

SPRING

valve handle

1шт.

20

404881R1

BAR ASSY, hyd valve operating

1шт.

527417R1

PIN, valve operating bar

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot.

1шт.

21

404883R1

LOCATOR, valve handle

1шт.

22488R1

BOLT

SCREW, 1/4-20 x 5/8 CAD hex-hd cap

1шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

1шт.

22

384444R91

VALVE

ASSY, safety 1500PSI

1шт.

23

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32, safety valve

1шт.

24

404884R1

HOUSING, safety valve

1шт.

25

404885R1

CONNECTOR, hyd tube reducing

1шт.

26

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

27

404886R1

FILTER

ASSY, hyd oil-spin-on

1шт.

28

530875R

BASE, hyd oil filter

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

530876R1

TUBE ASSY, hyd filter suction

1шт.

30

219334

NIPPLE, LUBE,Nipple, 1/2" NPT x 5 1/2"

NIPPLE, 1/2 x 5-1/2 pipe

1шт.

31

530877R1

CONNECTOR, ELEC

CONNCTOR, hydraulic flared tube

1шт.

32

530511R1

HOSE, return

1шт.

33

9411107

ELBOW,45 Degree, 1 1/16"-12 x 1 1/16"-12, O-Ring

1-1/16-12 C-Z 37 deg hyd flared tube adj 45 deg

1шт.

34

544020R1

TUBE ASSY, suction long

1шт.

35

39107H

CLAMP, suction tube hose

2шт.

36

530879R1

HYDRAULIC HOSE,0.75" ID x 3.00", SAE 30R2 Type 3 Class 3

0.75" ID x 3.00", Suction Tube

1шт.

37

530507R1

TUBE ASSY, return

1шт.

38

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, return hose

2шт.

39

9403371

CAP,37 Degree, 9/16"-18

9/16-18 37 deg hyd flared tube, not used on tractors w/selector valve

1шт.

40

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32, hyd pump flange

2шт.

41

404895R1

SUPPORT, tube clamp

2шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4 x 5/8 sq-nk crg

2шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4-20 znp nylon insert

2шт.

42

547410R1

CLAMP, hydraulic tubes

3шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4-20 znp nylon insert

3шт.

413-422

BOLT,Hex, 1/4" - 20 x 1-3/8", Gr 5

SCREW, 1/4-20 x 1-3/8 znp hex-hd cap

3шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x .036 C-Z

3шт.

43

404897R91

CYLINDER

ASSY, hyd 1-3/4 x 5, optional with 405794R92, for components see list of parts under details of hydraulic cylinder

1шт.

43

405794R92

CYLINDER

ASSY, hyd 1-3/4 x 5 single acting, optional with 404897R91, for components see list of parts under details of hydraulic cylinder

1шт.

44

404898R1

BRACKET ASSY, cyl mtg

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

3шт.

Q3433

PIN, 5/8 x 4-1/4 std-hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

45

530512R1

HOUSING

ASY, gear shift lever

1шт.

46

404911R1

BAR, rockshaft stop

1шт.

102635

NUT,3/8"-16, G5

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

404912R1

SCREW, stop adj

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

1шт.

47

529348R1

HOSE

ASSY, hydraulic

1шт.

48

9402981

SHAFT

9/16-18 37 deg hyd flared tube three way, not used on tractors with selector valve

1шт.

49

404902R1

HYD TUBE

TUBE ASSY, hydraulic cylinder, not used on tractors w/selector valve

1шт.

50

531434R2

SUPPORT, tube clamp

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 type 1

1шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4-20 znp nylon insert

1шт.

51

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

2шт.

52

404904R2

ROCKSHAFT ASSY

1шт.

Q838

HEADED PIN,5/8" x 3 1/4"

PIN, 5/8 x 3-1/4 std-hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

53

404908R1

BEARING

ASSY, rockshaft

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
