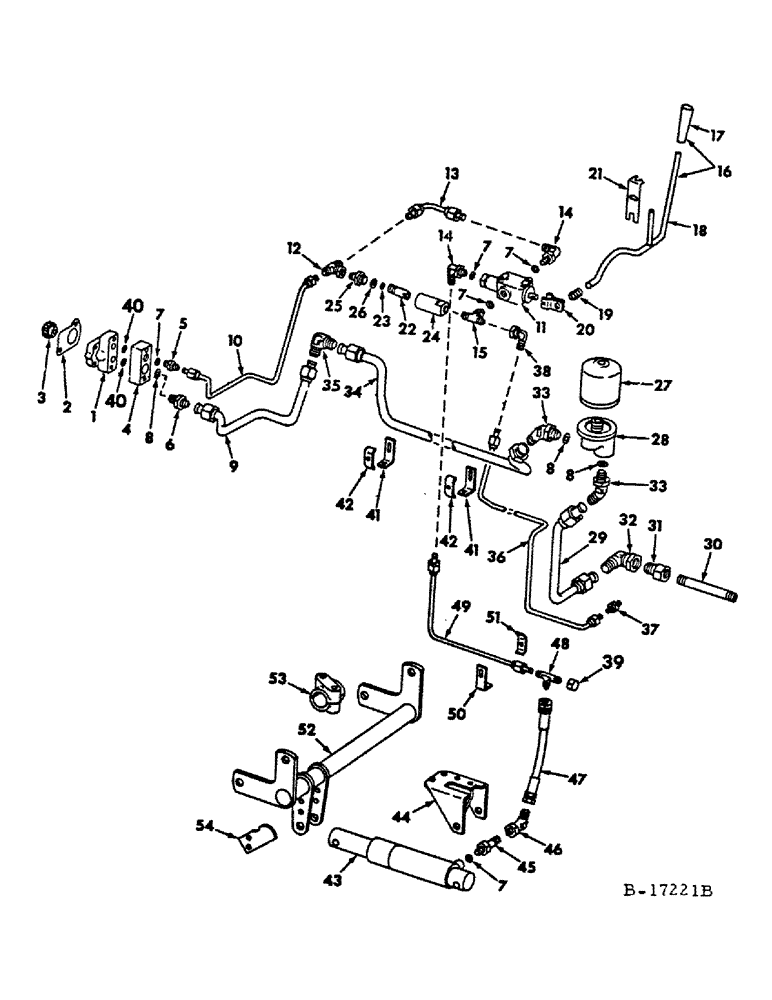

Запчасти Case IH 154 (10-01) - HYDRAULICS, HYDRAULIC LIFT, CUB 154 TRACTORS WITH SERIAL NO. 18708 AND BELOW (07) - HYDRAULICS

1

404870R91

PUMP

ASSY, hydraulic, Warner motive, for components see list of parts under details of hydraulic pump

1шт.

23683R1

SCREW,Hex Soc Hd, 5/16" - 18 x 2 1/2"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

351677R1

GASKET

pump

1шт.

3

352038R1

GEAR

pump drive, 10T

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

4

404872R1

FLANGE, hyd pump

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 C-Z 37 deg hyd flared tube short swivel

1шт.

6

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

UNION, 1-1/16-12 C-Z 37 deg hyd flared tube short swivel

1шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

5шт.

8

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

3шт.

9

404873R1

TUBE ASSY, suction short

1шт.

10

404874R1

TUBE ASSY, pressure long

1шт.

11

405812R91

VALVE ASSY, single acting control, for components see list of parts under details of single acting control valve

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

12

9410306

TEE,37 Degree, 9/16"-1 x 9/16"-18, Fem Sw Br

9/16-18 37 deg hyd flared tube 90 deg swivel

1шт.

13

404875R1

TUBE ASSY, pressure short

1шт.

14

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg

2шт.

15

9411117

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Br

9/16-18 37 deg hyd flared tube adj str thd

1шт.

16

404876R91

HANDLE W/GRIP, valve

1шт.

17

391056R1

GRIP

1шт.

18

404877R1

HANDLE ASSY

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

1шт.

141405

CHAIN

7/64 x 3/4 cot.

2шт.

19

404880R1

SPRING

handle

1шт.

20

404881R1

BAR ASSY, hyd valve operating

1шт.

527417R1

PIN, valve operating bar

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cot.

1шт.

21

404883R1

LOCATOR, valve handle

1шт.

22488R1

BOLT

SCREW, 1/4-20 x 5/8 CAD hex-hd cap

1шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

1шт.

22

384444R91

VALVE

ASSY, safety 1500PSI

1шт.

23

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32, safety valve

1шт.

24

404884R1

HOUSING, safety valve

1шт.

25

404885R1

CONNECTOR, hyd tube reducing

1шт.

26

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

27

404886R1

FILTER

ASSY, hyd oil-spin-on

1шт.

28

404887R1

BASE, hyd oil filter

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

404889R1

TUBE ASSY, hyd filter suction

1шт.

30

190716

NIPPLE, 1/2-14 x 6 pipe

1шт.

23174R1

BUSHING

3/4-14 x 1/2-14 automotive reducing pipe

1шт.

31

9402750

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-14, Fem Pipe

CONNECTOR, 3/-14 37 deg hyd flared tube int pipe thd

1шт.

32

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1-1/16-12 37 deg hyd flared tube 90 deg swivel

1шт.

33

9411107

ELBOW,45 Degree, 1 1/16"-12 x 1 1/16"-12, O-Ring

1-1/16 37 deg hyd flared tube 45 deg adj

2шт.

34

404890R1

TUBE ASSY, suction long

1шт.

35

9402945

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1-1/16-12 37 deg hyd flared tube 90 deg union

1шт.

36

404891R1

TUBE ASSY, return

1шт.

37

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR, 9/16-18 37 deg hyd flared tube

1шт.

38

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

9/16-18 37 deg hyd flared tube 90 deg swivel

1шт.

39

9403371

CAP,37 Degree, 9/16"-18

9/16-18 37 deg hyd flared tube, not used on tractors w/selector valve

1шт.

40

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32, hyd pump flange

2шт.

41

404895R1

SUPPORT, tube clamp

2шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4 x 5/8 sq-nk crg

2шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4-20 znp nylon insert

2шт.

42

384855R1

CLAMP

hyd tubes

2шт.

413-422

BOLT,Hex, 1/4" - 20 x 1-3/8", Gr 5

SCREW, 1/4-20 x 1-3/8 znd hex-hd cap

2шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x .036 C-Z

2шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4-20 znp nylon insert

2шт.

43

404897R91

CYLINDER

ASSY, hyd 1-3/4 x 5, optional with 405794R92, for components see list of parts under details of hydraulic cylinder

1шт.

43

405794R92

CYLINDER

ASSY, hyd 1-3/4 x 5 single acting, optional with 404897R91, for components see list of parts under details of hydraulic cylinder

1шт.

44

404898R1

BRACKET ASSY, cyl mtg

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

3шт.

Q3433

PIN, 5/8 x 4-1/4 std-hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

45

9410228

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, Pipe

UNION, 9/16-18 37 deg hyd flared tube long, used w/hose 404901R1

1шт.

46

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

9/16-18 37 deg hyd flared tube 45 deg swivel, used w/hose 404901R1

1шт.

47

404901R1

HOSE

ASSY, hydraulic, order hose assy 529348R1

1шт.

47

529348R1

HOSE

ASSY, hydraulic

1шт.

48

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

9/16-18 37 deg hyd flared tube three way, not used on tractors w/selector valve

1шт.

49

404902R1

HYD TUBE

TUBE ASSY, hydraulic cylinder, not used on tractors w/selector valve

1шт.

50

404895R1

SUPPORT, tube clamp

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4 x 5/8 sq-nk crg

1шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4-20 znp nylon insert

1шт.

51

384855R1

CLAMP

hyd tubes

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x .036 C-Z

1шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4-20 znp nylon insert

1шт.

52

404904R2

ROCKSHAFT ASSY

1шт.

Q838

HEADED PIN,5/8" x 3 1/4"

PIN, 5/8 x 3-1/4 std-hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

53

404908R1

BEARING

ASSY, rockshaft

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

2шт.

54

404911R1

BAR, rockshaft stop

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

404912R1

SCREW, stop adj

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

1шт.
