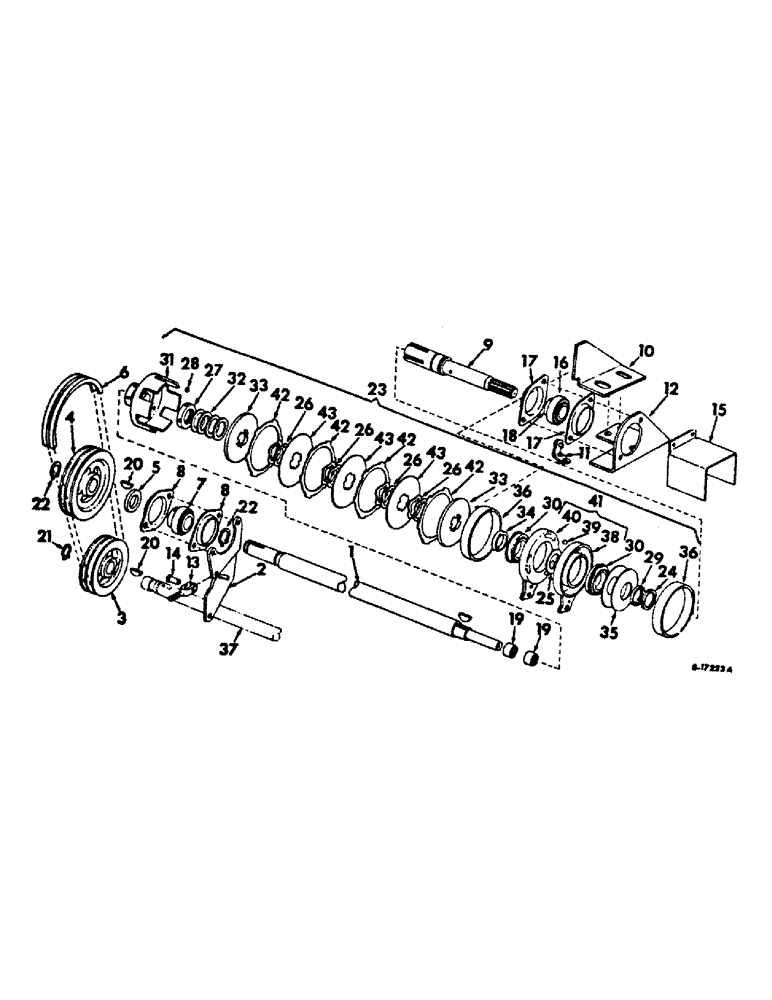

Запчасти Case IH 154 (07-12) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF, CUB 154 LO-BOY TRACTORS WITH SERIAL NO. 18708 AND BELOW (04) - Drive Train

1

404934R1

SHAFT

PTO drive

1шт.

2

404935R1

ADJUSTER, PTO shaft & pulley

1шт.

102635

NUT,3/8"-16, G5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

1шт.

3

404932R2

PULLEY

PTO drive

1шт.

4

543600R1

PULLEY

PTO driven, also order screw, 102572

1шт.

83-12510

SET SCREW,Hex Soc, 1/4"-20 x 5/8"

1шт.

5

404937R1

SPACER

SPACER, PTO shaft

1шт.

6

527382R91

SET OF BELTS

Matched set, PTO Drive V

1шт.

7

549165R91

BALL BEARING,28.57mm ID x 62mm OD x 18mm W

PTO shaft front ball, replaces 491590R91

1шт.

8

581469R1

FLANGE,Bearing

brg

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

404917R11

SHAFT

W/TWO BEARINGS, 276574R91, PTO clutch, order shaft, 546651R11 and snap ring, 406986R1

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub, PTO clutch shaft

1шт.

10

404921R1

SUPPORT

ASSY, independent PTO brake bracket

1шт.

180017

SCREW, 1/4-20 x 9/16 znd hex-hd cap

1шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 znd hex-hd cap

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

16558R1

WASHER

17/64 x 5/8 x .036

1шт.

120396

WASHER

17/32 x 1-1/16 x .074 C-Z

1шт.

11

404925R2

BRACKET

clutch cleat

1шт.

548962R1

SHIM

clutch cleat .059 (or as required)

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .065 C-Z

2шт.

12

404939R1

SUPPORT, PTO shaft brg mtg bracket

1шт.

13

404936R1

YOKE ASSY, adjustable

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

1шт.

14

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

15

404940R1

SUPPORT

GUARD, PTO shaft

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

528343R92

BALL BEARING,1.1255" ID x 62 mm OD x 0.9575"

PTO shaft rear ball, replaces 455960R91

1шт.

17

581469R1

FLANGE,Bearing

brg

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

557115R11

COLLAR

COLLAR W/SET SCREW, locking

1шт.

19

276574R91

NEEDLE BEARING

PTO idler shaft needle

2шт.

20

124552

SCREW

3/16 x 1 Woodruff 13

3шт.

21

369875R1

RING, SNAP

RING, drive pulley retaining

1шт.

22

454319R1

RING

retaining

2шт.

23

404938R91

CLUTCH

ASSY, independent PTO, order clutch assy, 404938R94, consists of ref nos 9, 19, 24 thru 36 and 38 thru 43

1шт.

24

406986R1

RING

snap

1шт.

25

659380R1

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.

26

527246R1

WASHER

SPRING, wave

8шт.

27

527239R1

NUT

LOCKNUT

1шт.

28

531973R1

SCREW

SET SCREW

1шт.

29

527233R1

WASHER

RETAINER

1шт.

30

59769C91

BALL BEARING,35mm ID x 62mm OD x 14mm W

cam

2шт.

31

547292R1

HUB

CUP ASSY, drive, replaces 527240R1

1шт.

83-1255

SET SCREW,Hex Soc, 1/4"-20 x 5/16"

SCREW, 1/4 x 5/16 hex-soc-hd cup-pt set

2шт.

32

527247R1

WASHER

SHIM

4шт.

33

527244R1

PLATE

pressure

2шт.

34

530168R1

SPACER

1шт.

35

527236R1

SPRING WASHER

SPRING, load

2шт.

36

527241R1

SPACER

COVER, cam

2шт.

37

SHAFT, main clutch, refer to transmission listing, this group

1шт.

38

CAM, stationary, order kit, 545394R92

1шт.

39

16014R1

BALL

7/16 cr-stl

3шт.

40

CAM, actuating, order kit, 545394R92

1шт.

41

545394R92

KIT

actuator rebuild, consists of ref nos 32, 38, 39 and 40

1шт.

42

DISC FRICTION, order kit, 527245R92

4шт.

43

DISC SEPARATOR, order kit, 527245R92

3шт.

527245R92

KIT

disc pack repair, consists of (4) disc, friction (NSS), (3) disc, separator (NSS), (1) ring 406986R1, (12) shim 527247R1, (4) spring 527246R1

1шт.
