Запчасти Case IH 154 (07-01) - DRIVE TRAIN, CLUTCH AND CONTROLS, CUB 154 LO-BOY TRACTORS WITH SERIAL NO. 21491 AND BELOW (04) - Drive Train

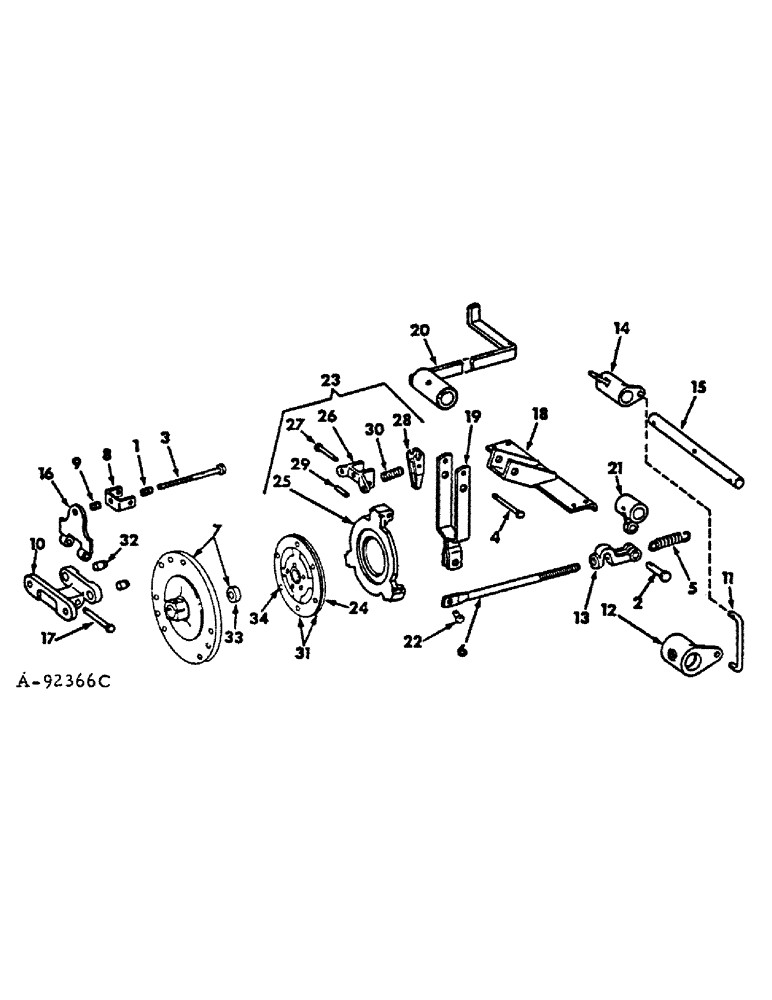

Схема запчастей Case IH 154 - (07-01) - DRIVE TRAIN, CLUTCH AND CONTROLS, CUB 154 LO-BOY TRACTORS WITH SERIAL NO. 21491 AND BELOW (04) - Drive Train
5
1
20
25
2
23
16
27
17
19
28
12
24
6
26
32
7
3
11
31
4
33
34
8
9
30
29
18
14
21
15
22
13
10

Артикул

Название

Примечание

Количество

1

404651R1

SPRING

clutch brake teaser

1шт.

2

82663H

PIN

clutch rod adjustable yoke

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

3

404652R1

BOLT,5/16" - 18 x 4 1/2"

clutch brake

1шт.

596934R1

NUT

5/16-18 znd hex, self-locking

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

376308R1

SPRING WASHER

clutch brake spring retainer

1шт.

4

404650R1

PIN,7.77mm OD x 73.91mm L

clutch brake yoke

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

404654R1

SPRING

clutch return

1шт.

6

404653R1

BOLT,7/16" - 20 x 10.10"

ROD, clutch operating

1шт.

7

531708R11

PLATE

ASSY, pressure, replaces 404664R1, also order nut, 9413994, screw 531619R1 and washer, 120214 on tractors with serial no. 15071 & below

1шт.

617941R1

PIN,5/16" x 2", Coiled

Serial no. 15071 & below 5/16" x 2", Coiled

1шт.

9413994

LOCK NUT,5/16"-18, GC

NUT, 5/16-18 CAD hex, lock, serial no. 15072 & above

1шт.

531619R1

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 8

SCREW, pressure plate, serial no. 15072 & above

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , S/N 15072 & above 5/16"

1шт.

8

404649R1

YOKE

clutch brake

1шт.

9

383892R2

SPRING

clutch brake stabilizer

1шт.

10

404641R1

RETAINER

clutch brake

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap

2шт.

11

404657R1

ROD, clutch linkage

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

12

404658R1

LEVER, clutch pedal

1шт.

102939

SCREW, 5/16-18 x 7/8 sq-hd cone PT set

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

13

49401D

YOKE

clutch rod adjusting

1шт.

LEC271506

SHIM

7/16-20 znd hex.

2шт.

14

404655R1

LEVER, clutch & safety starting switch

1шт.

15

404656R1

PIN, clutch

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

3шт.

16

404645R1

ARM

ASSY, brake

1шт.

17

404648R1

PIN

lever

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

18

404677R1

BRACKET

ASSY, clutch release

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

404675R1

YOKE

ASSY, clutch release

1шт.

90560H

CLEVIS PIN,1/2" x 2.766"

PIN, 1/2 x 2-49/64 rod end

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

1шт.

20

547014R1

PEDAL

ASSY, clutch, replaces 404659R1

1шт.

21

404556R2

LEVER, clutch

1шт.

22

357369R1

AXLE PIN

PIN, clutch rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

23

404639R94

PLATE

ASSY, clutch pressure, composed of (3) bracket 405983R1, (1) plate 405982R1, (3) pin 60342C1, (3) ring 60343C1, (3) pin 405986R1, (3) lever 405985R1, (3) spring 405987R3

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

24

404640R93

DISC

W/FACINGS ASSY, clutch driven

1шт.

25

405982R1

PLATE

pressure

1шт.

26

405983R1

BRACKET

lever

3шт.

27

60342C1

PIN

lever pivot

3шт.

60343C1

RING

retaining

3шт.

28

405985R1

LEVER

release

3шт.

29

405986R1

PIN

pressure plate

3шт.

30

405987R3

SPRING

pressure

3шт.

31

405988R91

KIT

PACKAGE, clutch facing, consists of two facing and six rivets HS490

1шт.

32

404642R1

LINING

ASSY, brake

2шт.

33

404666R1

BUSHING,22.25mm ID x 22.28mm OD x 19.18mm L

pressure plate

1шт.

34

HS490

RIVET, clutch facing

6шт.

Note: for clutch release retainer assy---see page 7, item # 4 cc 9/97

1шт.
