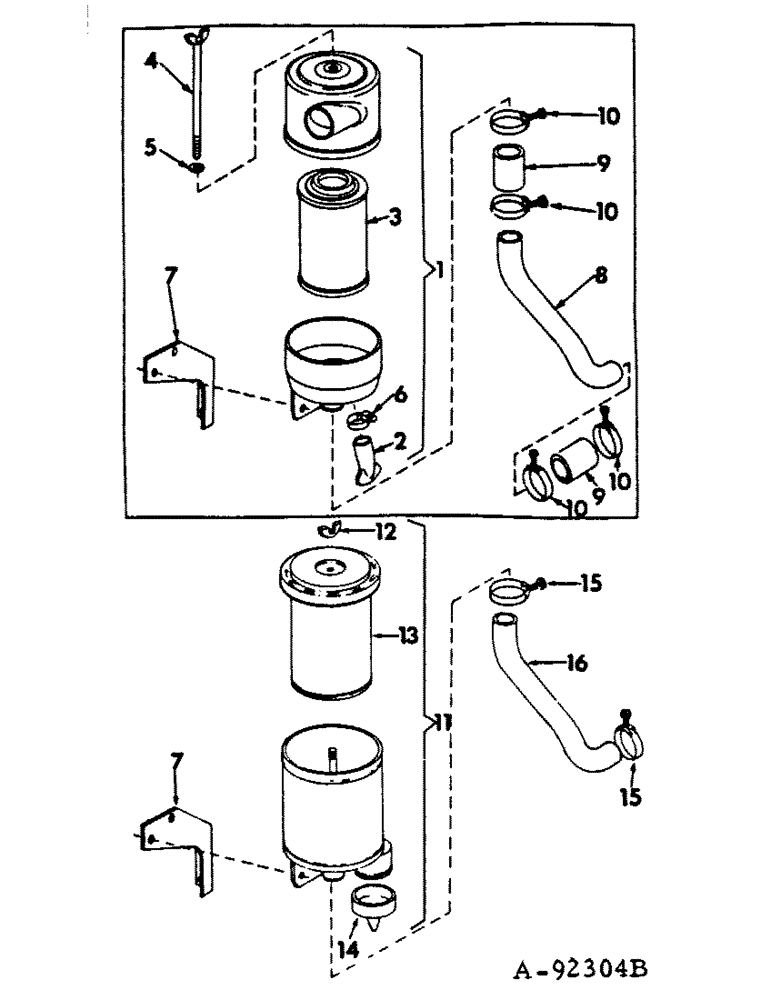

Запчасти Case IH 154 (12-20) - POWER, C-60 ENGINE, AIR CLEANER AND CONNECTIONS, CUB 154 LO-BOY TRACTORS Power

1

405121R92

CLEANER ASSY, 5-1/2 in. diameter dry type air, composed of ref nos 2 throgh 6, order 545828R91

1шт.

179813

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

324194R1

GROMMET

UNLOADER, automatic dust

1шт.

3

405716R1

ELEMENT

ASSY, air cleaner

1шт.

4

405717R1

STUD, wing

1шт.

5

405718R1

WASHER, air cleaner element

1шт.

6

526609R91

CLAMP ASSY

1шт.

7

404636R2

BRACKET ASSY, air cleaner

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

404638R1

TUBE

PIPE, air cleaner to carburetor, order hose, 533269R1, serial no. 18708 and below

1шт.

9

362756R1

HOSE, air cleaner connection, furnish 2-1/2 in. length from bulk hose, 407001R1, serial no. 18708 and below

2шт.

10

996261R91

COLLAR CLAMP

CLAMP, air cleaner hose, serial no. 18708 and below

4шт.

11

545828R91

CLEANER

ASSY, 5-1/4 in. diameter dry type air, composed of ref nos 12 through 14

1шт.

179813

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

NUT, wing, supplied with element, 547159R1

1шт.

13

547159R1

ELEMENT

W/WING NUT, air cleaner

1шт.

14

544977R1

DUST VALVE

VALVE, rubber unloader

1шт.

15

996261R91

COLLAR CLAMP

CLAMP, air cleaner hose, serial no. 18709 and above

2шт.

16

533269R1

INTAKE AIR HOSE,1.62" ID x 11.50", SAE 20R2 CLASS 5C

HOSE, air cleaner to carburetor, replaces pipe, 404638R1 and two hoses, 362756R1

1шт.
