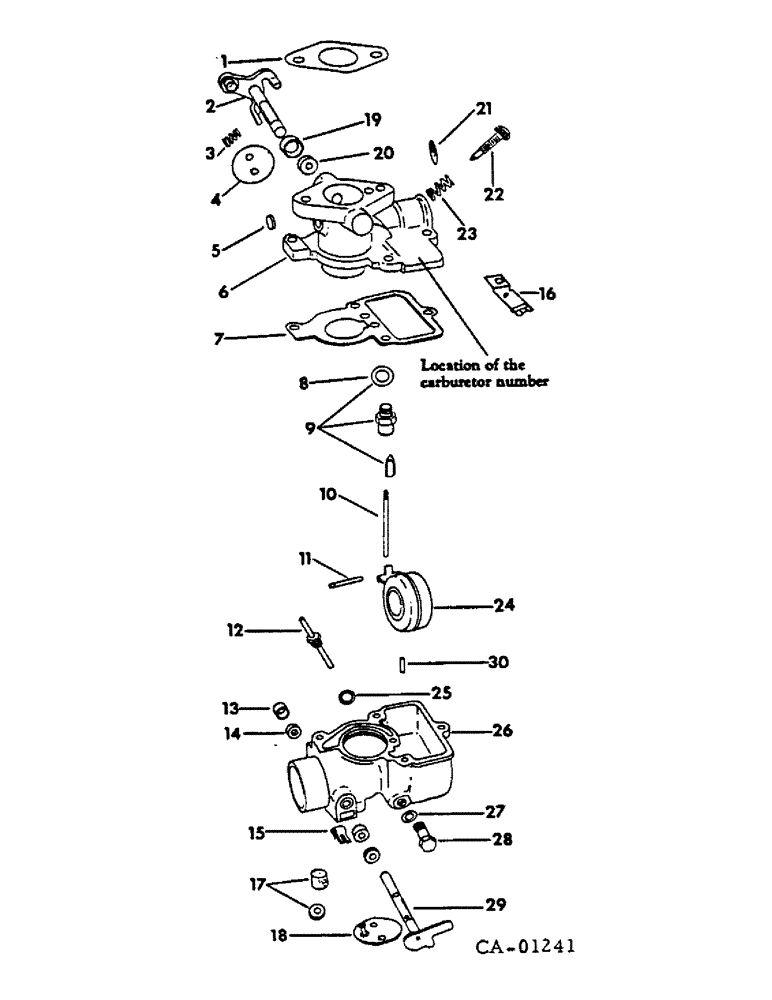

Запчасти Case IH 154 (12-10) - POWER, C-60 ENGINE, CARBURETOR, CUB 154 LO-BOY TRACTORS Power

405004R91

CARBURETOR

ASSY, 3/4 updraft

1шт.

1

251235R1

GASKET,1.59mm Thk

carburetor

1шт.

2

351845R11

LEVER ASSY.

LEVER AND SHAFT ASSY, throttle

1шт.

3

251289R1

SPRING, idle set screw retainer

1шт.

4

251290R1

BUTTERFLY, throttle

1шт.

147754

SCREW, 5-40 x 1/4 C-Z slt-rd-hd mach

2шт.

5

37417D

PLUG, throttle body expansion

1шт.

6

355713R92

BODY ASSY, throttle

1шт.

131899

SCREW, 6-32 x 1/2 C-Z slt-fil-hd mach Slotted Fil Hd, #6-32 x 1/2"

1шт.

26668R1

SCREW, 10-24 x 9/16 slt-hex-hd mach

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

7

251337R3

GASKET

fuel bowl

1шт.

8

25948D

GASKET

float needle valve cage

1шт.

9

251300R21

JET

CAGE ASSY, float needle valve

1шт.

10

251331R1

TUBE,1.656, 0.125" Length

idle

1шт.

11

251299R1

PIN

PIVOT, float lever

1шт.

12

355717R11

NOZZLE INJECTION

NOZZLE ASSY, discharge

1шт.

13

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER, starting shutter shaft dust

1шт.

14

45149DA

SEAL

butterfly shaft dust

1шт.

15

251308R1

SPRING, starting shutter friction

1шт.

16

405052R1

BRACKET, choke

1шт.

17

354263R91

STRIPPER PACKAGE

PACKAGE, drip hole filler replacement

1шт.

18

251312R11

SHUTTER ASSY, starting

1шт.

132622

SCREW, 4-40 x 3/16 slt-rd-hd C-Z Slotted Rd Hd, #4-40 x 3/16"

2шт.

19

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER, butterfly shaft dust seal

2шт.

20

45149DA

SEAL

starting shutter shaft dust

2шт.

21

251294R1

SCREEN

strainer

1шт.

22

351958R1

ADJUSTMENT SCREW

idle adjusting

1шт.

23

351959R1

SPRING

idle adjusting screw retainer

1шт.

24

251293R91

LEVER

FLOAT AND LEVER ASSY

1шт.

25

47401D

GASKET

discharge nozzle

1шт.

26

406854R91

BOWL ASSY, fuel, composed of (1) bleed 353575R1, (1) bowl (NSS), (1) filler (NSS), (1) plug (NSS), (1) plug 61142DM, (1) retainer 45148D, (1) seal 45149DA

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 auto. sq-hd pipe

1шт.

61142DM

PLUG, starting shutter shaft hole

1шт.

27

47401D

GASKET

main metering jet

1шт.

28

404945R1

JET

ASSY, main metering

1шт.

29

405027R1

SHAFT ASSY, choke valve

1шт.

30

364761R1

BLEED, main air

1шт.

352070R1

TUBE, discharge

1шт.

354454R92

PACKAGE,SERVICE

PACKAGE, carburetor overhaul, for components see list of parts under details of service packages

1шт.
