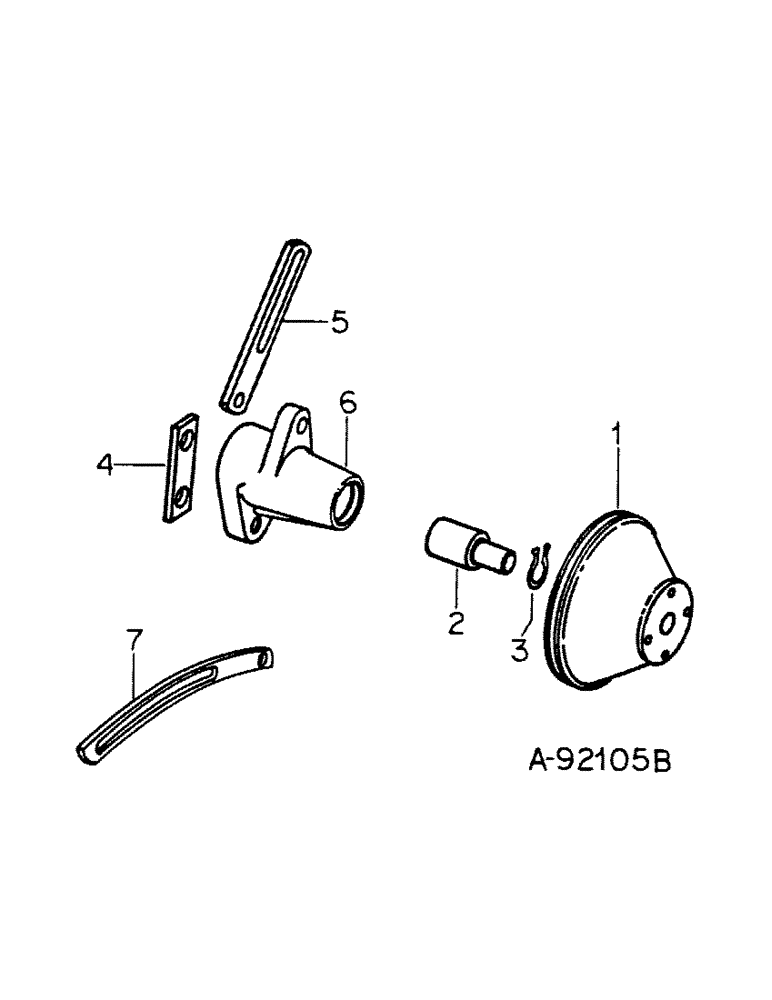

Запчасти Case IH 154 (12-04) - POWER, C-60 ENGINE, PULLEY AND GENERATOR BRACE Power

1

404965R1

PULLEY, fan, cub 154 lo-boy tractors

1шт.

1

254954C92

PULLEY

fan, 184 tractors and cub 185 lo-boy tractors

1шт.

2

491956R91

BEARING ASSY,30mm OD x 92.08mm L

SHAFT AND BEARING ASSY

1шт.

3

102069H

RING

RETAINER, bearing

1шт.

4

405015R1

BAR, adapter

1шт.

5

168130R1

BRACE, motor-generator

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

405014R1

BRACKET, fan pulley mounting

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

532418R1

BRACE

alternator-generator

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

1шт.
