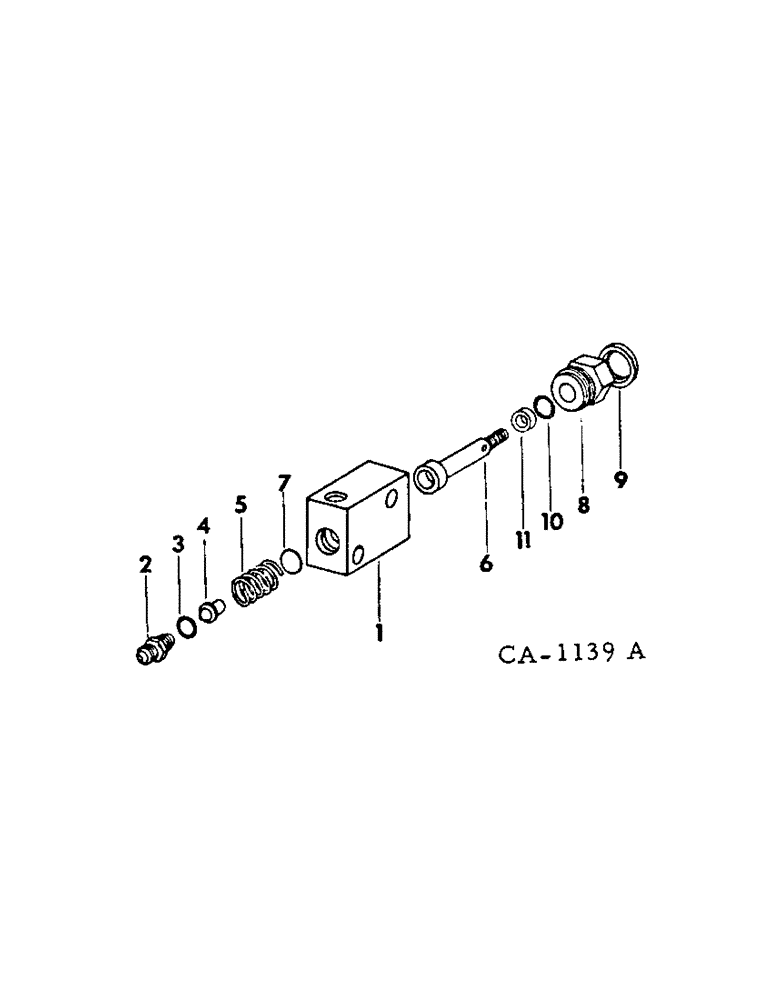

Запчасти Case IH 574 (07-38[1]) - DRIVE TRAIN, FOOT-N-INCH AND DECELERATOR VALVE (04) - Drive Train

404211R91

VALVE

ASSY, decelerator vlave, foot-n-inch

1шт.

1

BODY, valve, not serviced separately, furnish valve assy, foot-n-inch and decelerator valve

1шт.

2

398709R1

SEAT

poppet valve, foot-n-inch and decelerator

1шт.

3

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Foot-n-inch and decelerator valve

1шт.

4

398710R1

VALVE POPPET

VALVE, poppet, foot-n-inch and decelerator valve

1шт.

5

398731R1

SPRING

valve, foot-n-inch and decelerator

1шт.

6

398708R1

STOP

valve, fot-n-inch and decelerator

1шт.

7

530575R91

SHIM KIT

PACKAGE, relief valve shim service, will work for 401293R91, consists of (4) shim .005, 530571R1 (NSS), (4) shim .007, 530572R1 (NSS), (2) shim .020, 530573R1 (NSS) (1) shim .042 530574R1 (NSS) foot-n-inch and decelerator valve

1шт.

8

398707R1

GUIDE

valve spring stop, foot-n-inch and decelerator

1шт.

9

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

oil, foot-n-inch and decelerator

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, foot-n-inch and decelerator valve

1шт.

11

404212R1

SLEEVE

valve stop, used w/decelerator 404211R91, foot-n-inch

1шт.
