Запчасти Case IH 574 (07-27) - DRIVE TRAIN, GEAR SHIFT MECHANISM, SPEED TRANSMISSION (04) - Drive Train

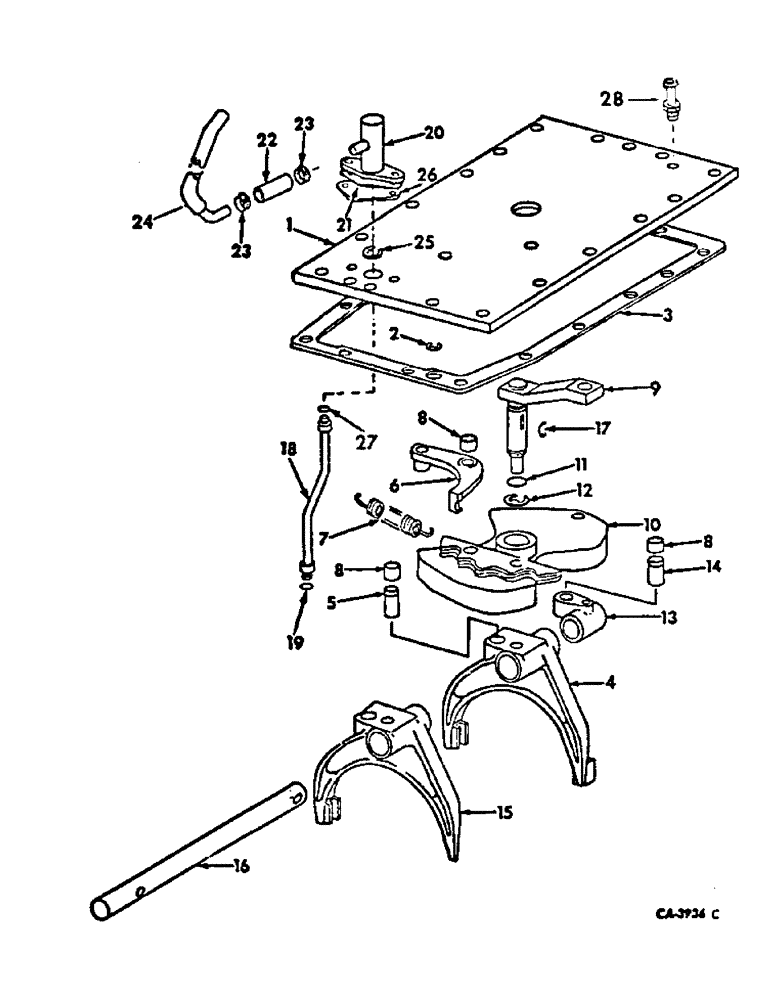

Схема запчастей Case IH 574 - (07-27) - DRIVE TRAIN, GEAR SHIFT MECHANISM, SPEED TRANSMISSION (04) - Drive Train
6
2
16
5
22
11
12
14
20
28
19
4
23
7
3
26
21
18
25
27
24
1
8
8
15
23
17
13
9
10
8

Артикул

Название

Примечание

Количество

1

105827C1

COVER

ASSY, clutch housing top, tractors without forward-reverse or draft control, on orders for cover 402597R2, furnish cover 105827C1 and adapter 105826C1

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

16шт.

11002VA

WASHER

17/32 x 7/8 x .065

1шт.

9410359

PLUG

3/4-16 std-thd o-ring boss

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

1

105829C1

COVER

ASSY, clutch housing top, tractors with draft control, on orders for cover 66197C2 furnish cover 105829C1 and adapter 105826C1

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

16шт.

11002VA

WASHER

17/32 x 7/8 x .065

1шт.

9410359

PLUG

3/4-16 std-thd o-ring boss

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

1

105828C1

COVER

ASSY, clutch housing top, tractors with forward-reverse, on order for cover 401618R12 furnish cover 105828C1 and adapter 105826C1

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

14шт.

2

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , shifter control arm pivot pin #50, .392" Dia, E-Type

1шт.

3

401019R3

GASKET

clutch housing top cover, tractors without forward- reverse and with or without draft control

1шт.

3

401621R2

GASKET

clutch housing top cover, tractors with forward-reverse

1шт.

4

401697R91

YOKE

FORK ASSY, 3rd & 4th speed shift, includes ref no. 5

1шт.

5

383438R1

DOWEL

PIN, 1/2 x 1 dowel

1шт.

6

382565R21

ARM ASSY.

ARM ASSY, shifter control

1шт.

7

383997R1

SPRING

shifter control arm

1шт.

8

380115R2

ROLLER

cam

3шт.

9

404734R1

ARM ASSY.

ARM ASSY, clutch housing shift

1шт.

10

399455R93

CAM

ASSY, clutch housing shift

1шт.

104186

RIVET

5/16 x 1-3/8 csk-hd solid

2шт.

11

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32 cam pivot shaft o-ring

1шт.

12

603570R1

SNAP RING,#75, .574" Dia, E-Type

Ring, Retaining, , cam pivot shaft #75, .574" Dia, E-Type

1шт.

13

401694R11

HUB ASSY.

HUB ASSY, 1st & 2nd speed shift, includes ref no. 14

1шт.

14

383438R1

DOWEL

PIN, 1/2 x 1 dowel

1шт.

25155R1

PIN,1/4" x 1 1/4", Coiled

1/4" x 1 1/4", Coiled

2шт.

15

401695R2

FORK

1st and 2nd speed shift

1шт.

16

401696R1

ROD

1st & 2nd speed shift

1шт.

17

106751

KEY

3/16 x 3/4 Woodruff no. 9 aly-stl, cam pivot shaft key

1шт.

18

534412R1

TUBE

ASSY, transmission lub, tractors with serial no. 100003 and below

1шт.

18

66199C1

TUBE ASSY.,0.25" OD, 7.5, 0.62" Length

TUBE ASSY, transmission lub, tractors with serial no. 100004 and above without forward-reverse

1шт.

18

65736C1

TUBE,0.25" OD, 7.26, 0.62" Length

ASSY, transmission lub, tractors with serial no. 100004 and above with forward-reverse

1шт.

19

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16

1шт.

20

534415R91

BODY COMPLETE, pressure lub, tractors with serial no. 100003 and below

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, 1/4-28 x 5/8 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

56548C1

BODY ASSY, pressure lub, gasoline engine tractors with serial no. 100004 and above with forward-reverse

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, 1/4-28 x 5/8 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

534420R1

GASKET

pressure lub body cover

1шт.

22

537612R1

HOSE

to lub regulator valve, replaces 530129R1, tractors with serial no. 100003 and below

1шт.

22

66201C1

HOSE,0.25" ID x 6.00", SAE 30R2 Type 1 Class 1

Lubrication Tube, 2400 Series A Tractors with Serial No. 100004 and Above with Draft Control 0.25" ID x 6.00", SAE 30R2 Type 1 Class 1

1шт.

22

530127R1

HOSE,0.31" ID x 1.70"

Gasoline engine tractors with serial no. 100004 and above with forward-reverse 0.31" ID x 1.70"

1шт.

23

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

24

56549C1

TUBE, pressure lub, gasoline engine tractors with serial no. 100004 and above with forward-reverse

1шт.

25

269181R1

SNAP RING,#75, Ext

Ring, Snap, , tractors with serial no. 100004 and above #75, Ext

1шт.

26

539536R1

COVER

lub pressure, tractors with serial no. 100004 and above with flat plate

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, 1/4-28 x 5/8 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/4 x 1/16, used with tube 534412R1 and 65736C1

1шт.

27

379181R1

O-RING,0.614" ID x 0.07" Width

5/8 x 3/4 x 1/16, used with tube 69199C1

1шт.

28

105826C1

ADAPTER

1шт.

Выбрано товаров: 55
