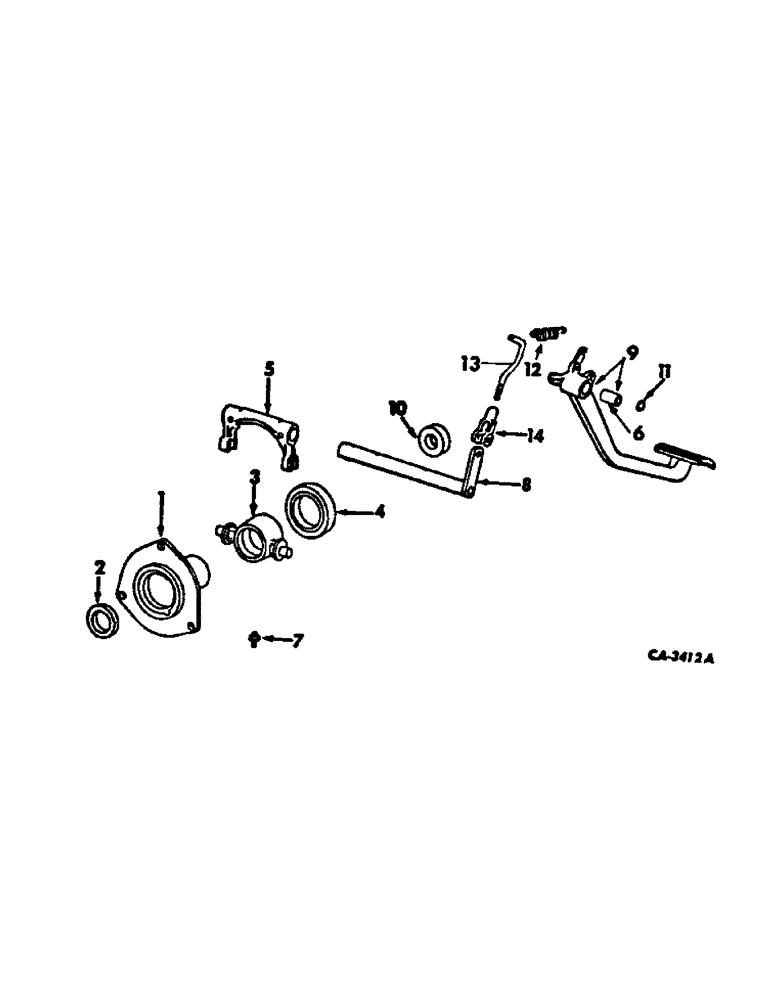

Запчасти Case IH 574 (07-13) - DRIVE TRAIN, CLUTCH CONTROLS (04) - Drive Train

1

71229C1

SLIPPER

CARRIER, clutch release sleeve, on orders for carrier 398236R2, furnish carrier 71229C1, shaft 71230C1 and seal 108982C1

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

3шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

3шт.

2

376930R91

OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk

release sleeve carrier oil, used with carrier 398236R2

1шт.

2

108982C1

OIL SEAL

SEAL, release sleeve carrier oil, used with carrier 71229C1

1шт.

3

105445C1

BUSHING

SLEEVE, clutch release, replaces sleeve, 360501R2 by also ordering bearing, 158125C91

1шт.

4

158125C91

THRUST BEARING

BEARING, clutch release ball, replaces bearing, 59879D

1шт.

5

398342R1

FORK

clutch release

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

6

539246R1

BUSHING

clutch pedal

1шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8-27 PFT str lub, used w/sleeve 360501R2, replaces fitting Q3618 and pipe 365720R1

1шт.

8

398237R2

SHAFT HOUSING

SHAFT ASSY, clutch release

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

2шт.

9

530805R3

PEDAL

W/BUSHING, clutch

1шт.

23183R1

WASHER

29/32 x 1-3/8 x .054 znd

1шт.

138675

SCREW,Hex, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd ov-pt set

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

10

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

Clutch pilot

1шт.

11

454331R1

SNAP RING,#87, Ext

Clutch pedal #87, Ext

1шт.

12

399743R1

SPRING

clutch pedal return

1шт.

13

71086C1

ROD ASSY.

ROD ASSY, clutch operating, replaces 401475R2

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 rod end, used w/rod 401475R2

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

14

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 x 2-1/2 light adj rod end

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 rod end

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.
