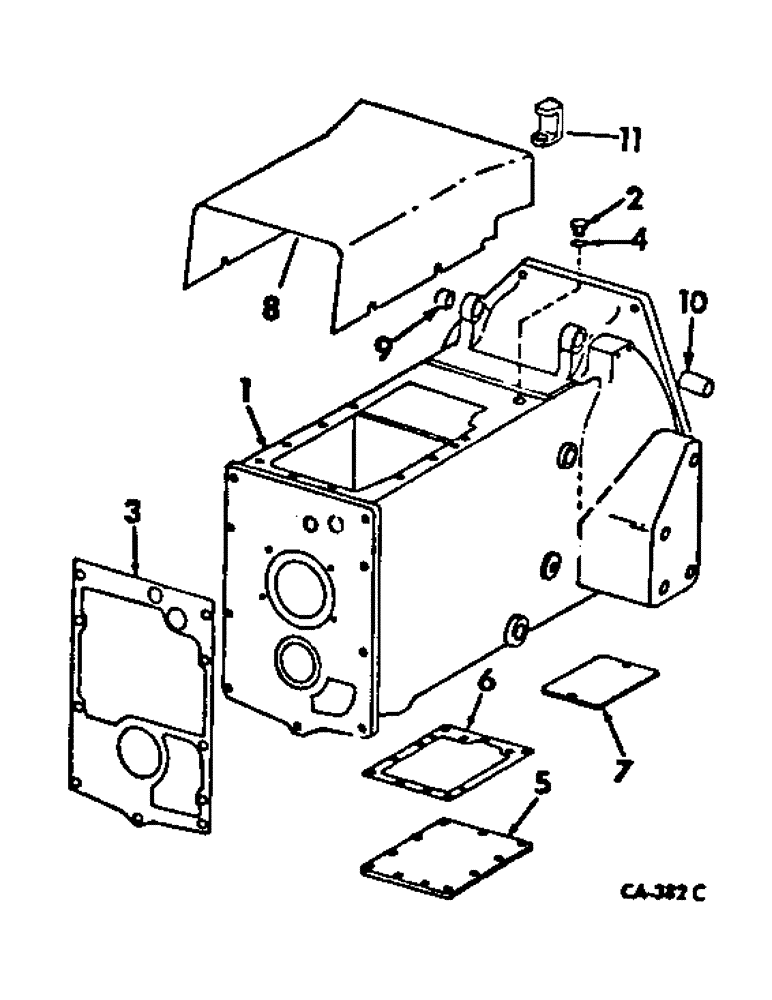

Запчасти Case IH 574 (07-11) - DRIVE TRAIN, CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train

1

537097R94

HOUSING

ASSY, clutch, when housing 537094R94 is furnished for all applications other than housing 537097R94 also order two nuts 102637, two washers 103323, gasoline engines two screws 187152, diesel engines tow screws 186295 and when housing 399847R11 is

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1/2 x 1-3/4 pln type 5, gasoline engine tractors

2шт.

179897

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 pln type 5, gasoline engine tractors

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 hex-hd cap, Diesel engine tractors

4шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

Diesel engine tractors Hex, 1/2"-13 x 3 1/4", G5

2шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1/2 x 3-1/2 pln type 5, diesel engine tractors

2шт.

186295

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

SCREW, 1/2-13 x 5-1/2 hex-hd cap

2шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW, 1/2-13 x 1-1/2 hex-hd cap

9шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3113103R1

PLUG

3/4-14 auto hex-hd pipe

1шт.

327411R1

PLUG,Cup, 5/8"

5/8 cup

1шт.

19962R1

DOWEL,3/8" x 3/4"

PIN, 3/8 x 3/4 dowel, clutch housing top cover

1шт.

20556R1

DOWEL,1/2" x 3/4"

PIN, 1/2 x 3/4 dowel

1шт.

19904R1

DOWEL,1/2" x 1"

PIN, 1/2 x 1 dowel, rear engine support

2шт.

2

9410359

PLUG

3/4-16 str thd o-ring boss

1шт.

3

399814R4

GASKET

housing to rear frame

1шт.

4

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

5

402182R1

COVER

clutch housing bottom rear

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

11шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

6

402556R2

GASKET

clutch housing bottom rear, replaces 402183R1

1шт.

7

399817R1

COVER

clutch compartment

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

8

66290C1

COVER

clutch housing, will work for 534126R1

1шт.

445957

INDICATOR

1/4-20 x 3/8 C-Z slt-pan-hd mach

4шт.

9

539245R1

BUSHING

clutch and brake shaft

1шт.

10

537099R1

NO LONGER SERVICED

BUSHING, LH brake pedal pivot, optional w/bushing 539834R1

1шт.

10

539834R1

BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L

LH brake pedal pivot, optional w/bushing 537099R1

1шт.

11

70439C1

BAR

clutch cover support

1шт.
