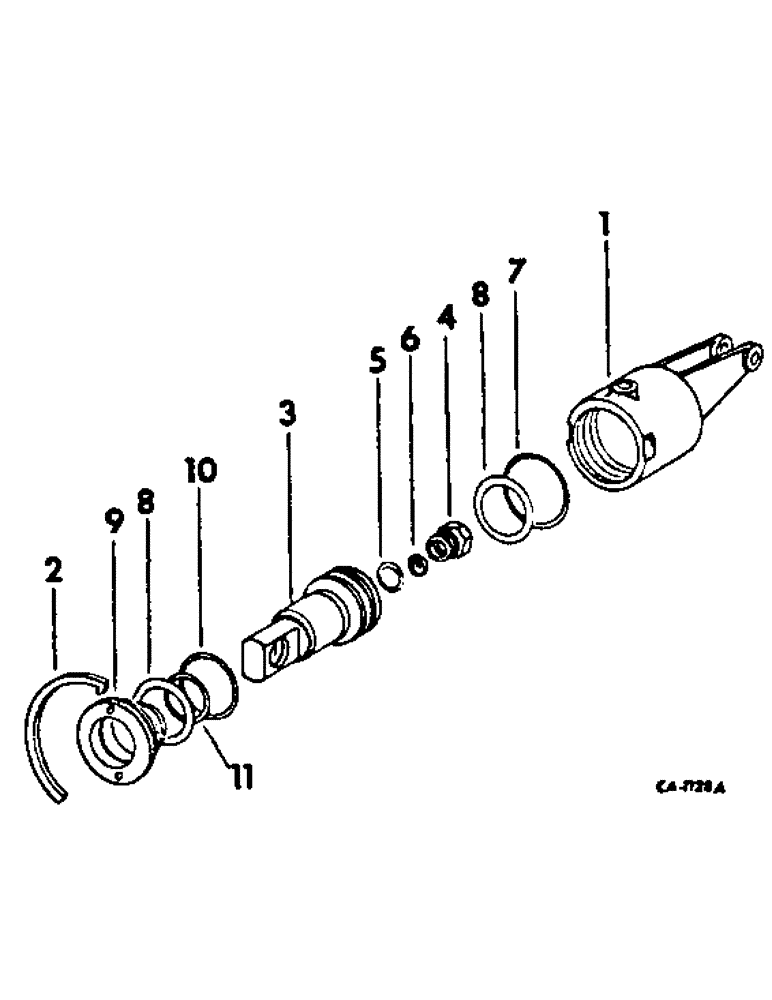

Запчасти Case IH 574 (07-07) - DRIVE TRAIN, MOTOR SERVO CYLINDER (04) - Drive Train

CYLINDER ASSY, motor servo

1шт.

1

401089R1

BODY

cylinder

1шт.

2

396106R1

ELECTRICAL WIRE

WIRE, retaining

1шт.

3

401090R1

PISTON

1шт.

4

531285R91

PLUG

W/STRAINER, fixed orifice, replaces 408984R11

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, fixed orifice

1шт.

6

529376R1

STRAINER ELEMENT

STRAINER

1шт.

7

396103R1

OLIVE

RING, piston sealing

1шт.

8

382781R1

O-RING,1.737" ID x 0.103" Width

1-3/4 x 1-15/16 x 3/32, piston sealing

2шт.

9

401091R1

GUIDE

piston

1шт.

10

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 2-1/8 x 3/32, piston guide

1шт.

11

401092R1

RING

guide sealing inner

1шт.

401093R91

PACKAGE

motor servo cylinder o-ring and seal service, consists of (1) ring 396103R1, (2) o-ring 382781R1, (1) o-ring 364885R1, (1) ring 401092R1, (2) sleeve 134630H1, (1) o-ring 384498R1, (1) o-ring 369384R1, (1) ring 396109R1

1шт.
