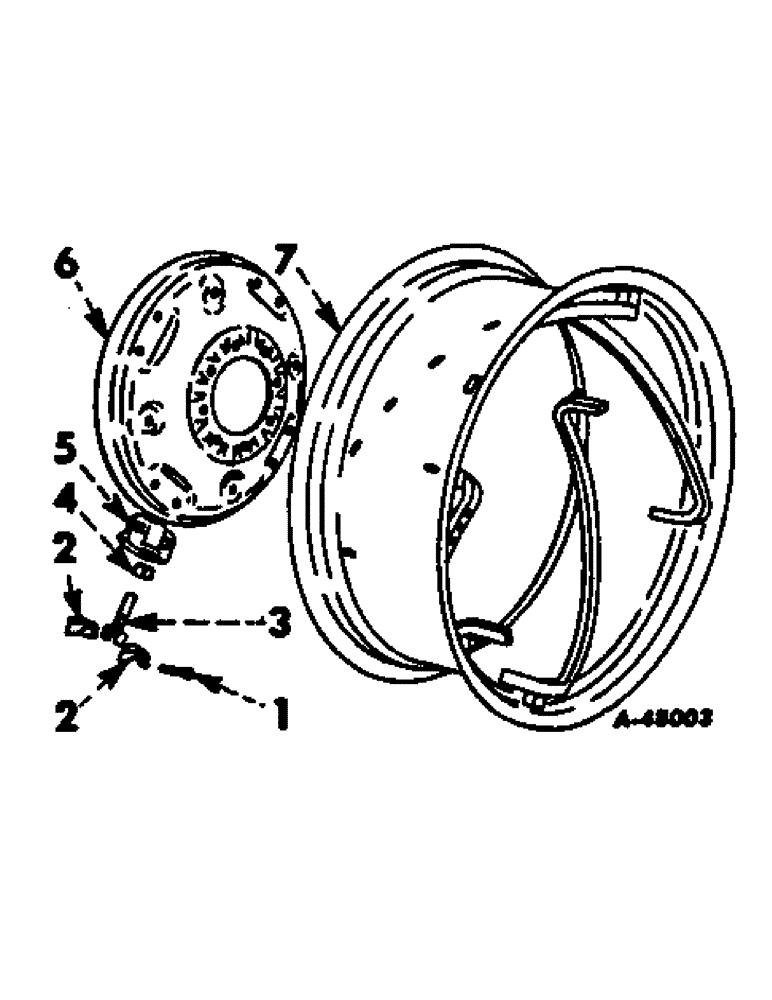

Запчасти Case IH 574 (15-04) - WHEELS AND TRACTION, POWER ADJUSTED REAR WHEELS Wheels & Traction

365323R92

WHEEL ASSY, power adjusted rear

2шт.

1

365326R1

SCREW

stop

4шт.

2

365327R2

STOP

BODY, stop

4шт.

3

365329R1

JACK SCREW

Jack

8шт.

4

365328R1

NUT

7/8-14 CDP hex.

8шт.

5

365330R1

BODY

Jack screw

8шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8-11 x 1-1/2 CDP sq-nk crg, 2 per body

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 CDP hex., 2 per body

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2 per body 5/8"

1шт.

6

365325R1

DISC, 28 in. rear wheel

2шт.

7

365324R92

RIM

ASSY, power adjusted rear wheel, W12-28 rim for 13.6-28 or 14.9-28 tires

1шт.

365331R1

WRENCH, jackscrew

1шт.
