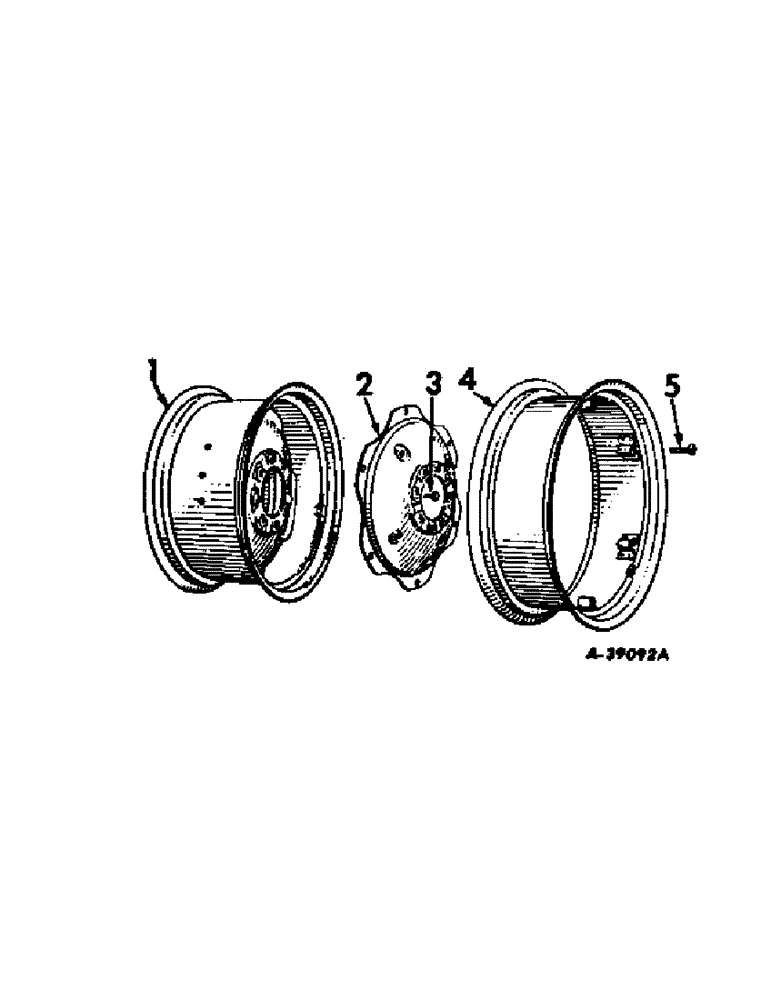

Запчасти Case IH 574 (15-02) - WHEELS AND TRACTION, REAR WHEELS Wheels & Traction

1

376196R91

WHEEL

RIM AND DISC ASSY, rear wheel, W12-24 rim for 14.9-24 or 16.9-24 tires, 3/4 in. offset

2шт.

1

364346R92

WHEEL

RIM AND DISC ASSY, rear wheel, W12-24 rim for 16.9-24 tire, 2-3/4 in. offset

1шт.

1

365480R91

WHEEL

RIM AND DISC ASSY, rear wheel, W16L-24 rim for 16.9-24 tire

2шт.

1

375141R91

RIM AND DISC ASSY, rear wheel, replaces 375142R91, DW16-26DC rim for 18.4-26 tire

2шт.

383697R1

PLUG

valve hole, for wheels, 375141R91 and 375142R91

1шт.

1

376197R91

WHEEL ASSY.

RIM AND DISC ASSY, rear wheel, W12-28 rim for 14.9-28 tire, Industrial tractors

2шт.

2

374806R1

DISC, WHEEL

WHEEL, 24 inch disc rear, 4 used w/dual rear wheels

2шт.

2

361724R1

WHEEL DISC

WHEEL, 28 inch disc rear

2шт.

3

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, rear wheel mounting

16шт.

3047575R2

NUT,Wheel, 5/8"-18

5/8-18 rear wheel mounting bolt

16шт.

4

373508R92

RIM, W14-28 rear wheel w/clamps for 16.9-28 tire

2шт.

4

374808R91

SPARE PART

RIM, W12-24 rear wheel w/clamps for 14.9-24 or 16.9 tires

2шт.

4

363988R92

RIM

W12-28 rear wheel w/clamps for 13.6-28 or 14.9-28 tires

2шт.

4

374809R92

RIM, W16-24 rear wheel w/clamps for 16.9-24 tire

2шт.

4

382268R91

RIM

W7-24 rear wheel w/clamps for for 8.3-24 tire, used for dual rear wheels

4шт.

5

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp, 24 used w/dual rear wheels

12шт.

369730R1

WASHER

rear wheel rim bolt, 24 used w/dual rear wheels

12шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, , 24 used w/ dual rear wheels 5/8"

12шт.

352777R1

NUT

rear wheel rim, 24 used w/dual rear wheels

12шт.

27549R1

VALVE STEM

Assy, Air liquid TR-618A

2шт.

417194C1

PLUG

rubber 5/8 rim hole

2шт.
