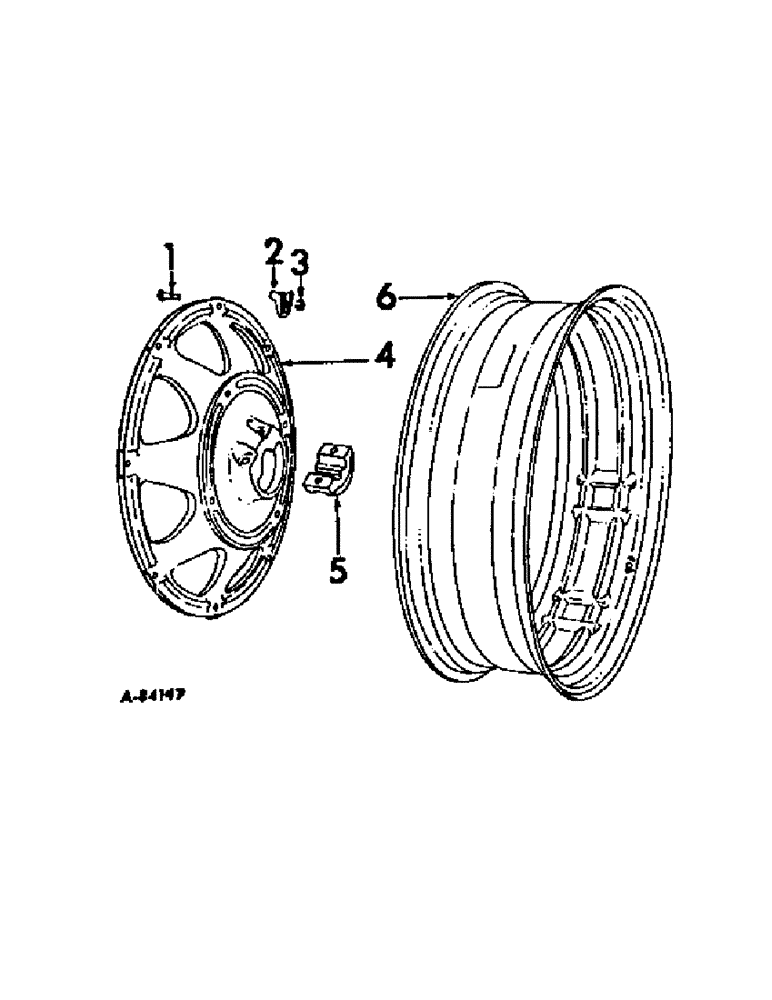

Запчасти Case IH 574 (15-02[1]) - WHEELS AND TRACTION, REAR WHEELS, ROW CROP TRACTORS Wheels & Traction

1

381727R1

SCREW

BOLT, rear wheel rim clamp

16шт.

2

381725R1

SHIN

CLAMP, rear wheel rim

12шт.

2

381726R1

SHIN

CLAMP, rear wheel rim fixed

4шт.

3

363018R1

NUT

rear wheel rim clamp

16шт.

4

528316R1

WHEEL, 36 in. rear

2шт.

4

392415R1

WHEEL

38 in. rear, 5 in. offset

2шт.

5

389539R1

CLAMP

wheel hub

4шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8-14 x 4-/34 hex-hd cap

8шт.

6

372319R2

RIM, W12-36 rear wheel for 13.9-36 tire

2шт.

6

370615R2

RIM, W10-36 double beaded rear wheel for 12.4-36 tire

2шт.

6

383691R1

RIM

W12-38 rear wheel for 13.6-38 tire

2шт.

6

380869R1

RIM

WH14L-38 rear wheel for 15.5-38 tire

2шт.
