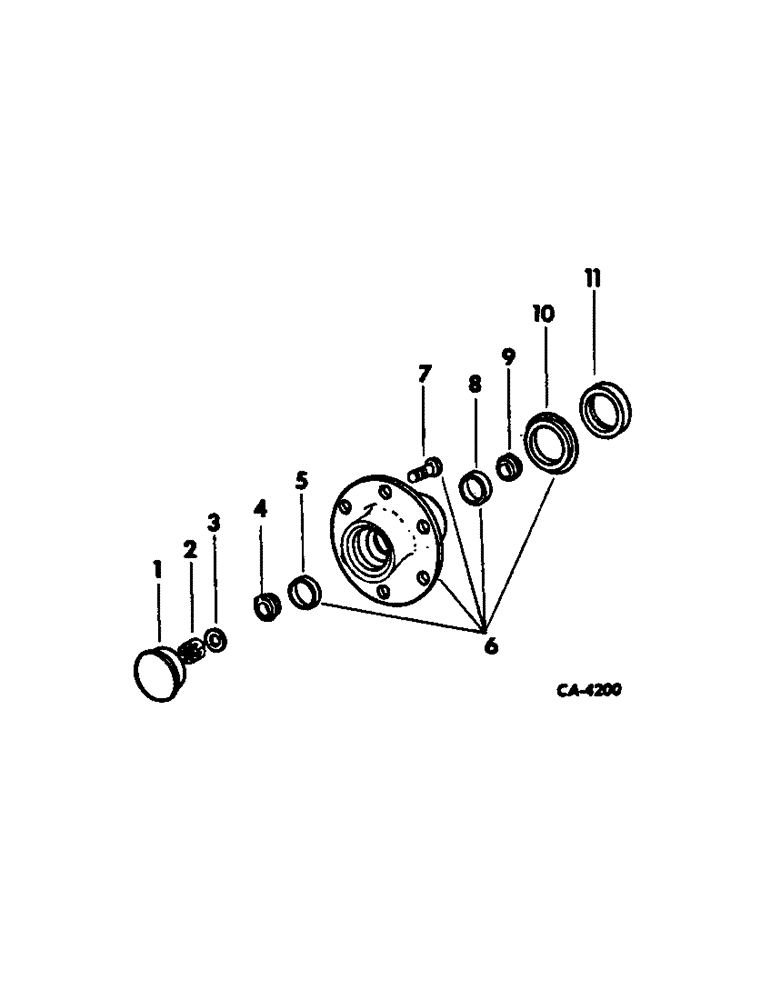

Запчасти Case IH 574 (14-09) - SUSPENSION, FRONT WHEEL HUB, BEARINGS AND CAP, INTERNATIONAL TRACTORS WITH SWEPT BACK AXLE Suspension

1

612884R1

HUB CAP

CAP, front wheel hub

2шт.

2

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt. hex.

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

3

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

outer brg retainer

2шт.

4

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, outer

2шт.

5

371883R1

BEARING CUP

Outer

2шт.

6

406294R11

HUB

ASSY, front wheel, 574 tractors

2шт.

6

534290R11

HUB ASSY, front wheel, 2500 series A tractors

2шт.

7

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

mounting

12шт.

483879R1

NUT

wheel

12шт.

8

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

2шт.

9

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, inner cone

2шт.

10

406295R2

RING

wear

2шт.

11

405835R91

SEAL

front wheel dust, replaces 48539D

2шт.

65988C91

KIT

PACKAGE, front wheel bearing overhaul, consists of (1) cone 618023R91 (1) cup 618024R1, (1) cone 371882R91, (1) cup 371883R1, (1) seal 405835R91, (1) washer 369857R1, (1) pin 108643, (1) ring 406295R2

1шт.
