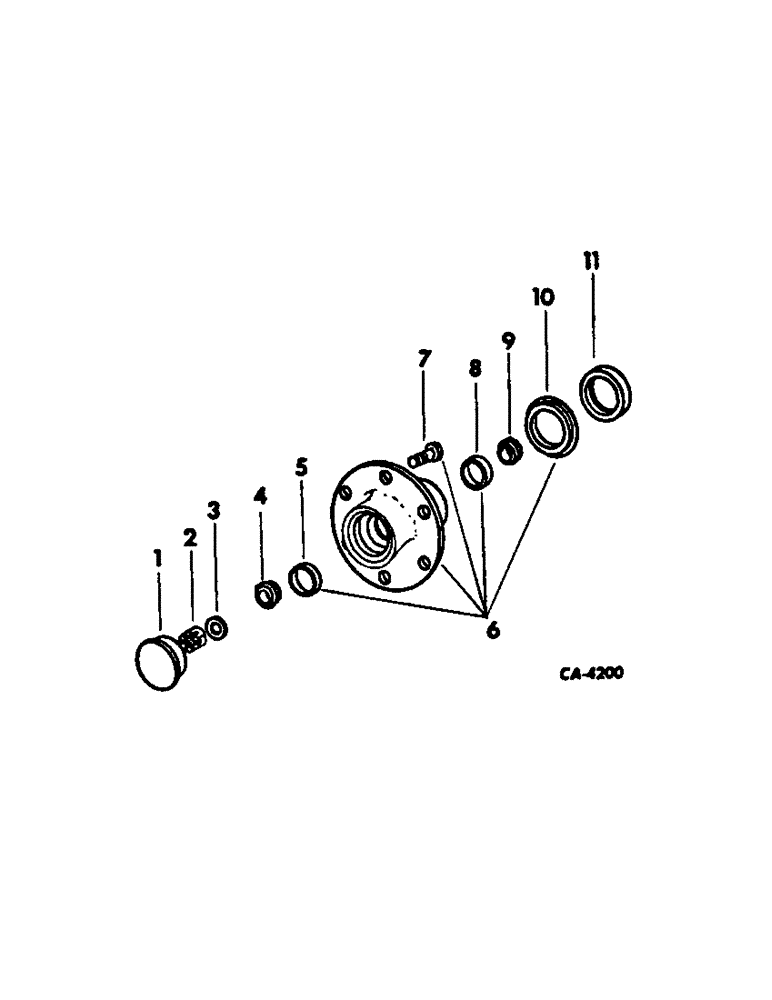

Запчасти Case IH 574 (14-09[1]) - SUSPENSION, FRONT WHEEL HUB, BEARINGS AND CAP, INTL 574 ROW CROP AND 2500 SERIES A W/ STRAIGHT AXLE Suspension

1

612884R1

HUB CAP

CAP, front wheel hub, bearings and cap, international 574 row crop and 2500 series A tractors with three position straight axle

2шт.

2

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt. hex., front wheel hub, bearings and cap, international 574 row crop and 2500 series A tractors with three position straight axle

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), , Front wheel hub, bearings and cap, international 574 row crop and 2500 series A tractors with three position straight axle 5/32" x 1 3/8"

2шт.

3

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

outer bearing retainer, 574 row crop tractors, front wheel, cap, interantional, 2500 series A with three postion straigh axle

2шт.

3

3118706R1

WASHER

outer bearing retainer, 2500 series A tractors with three position straight axle front wheel hub, cap, international 574 row crop

2шт.

4

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, outer, 574 row crop tractors and 2500 series A tractors with three position straight axle, international, front wheel hub, cap

2шт.

4

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

BEARING, outer cone, 2500 series A tractors, interantional 574 row crop with three postion straight axle, front wheel hub, cap

2шт.

5

371883R1

BEARING CUP

Outer, 574 row crop tractors and 2500 series A tractors with three position straight axle, international, front wheel hub, cap

2шт.

5

536054R1

BEARING CUP,60mm OD x 11.94mm W

BEARING, outer cup, 2500 series A tractors and 574 row crop tractors with three position straight axle, international, front wheel hub

2шт.

6

406294R11

HUB

ASSY, front wheel, 574 row crop tractors and 2500 series A tractors with three postion straight axle, international, bearings and cap

2шт.

6

67527C91

HUB ASSY.

HUB ASSY, front wheel, 2500 series A tractors and 574 row crop tractors with trhee position straight axle, international, bearings and cap

2шт.

7

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

front wheel mounting, hub, bearings and cap, international 574 row crop and 2500 series tractors A with three postion straight axle

12шт.

483879R1

NUT

wheel, front hub, bearings and cap, international 574 row cop and 2500 series A tractors with three position straight axle

12шт.

8

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner, 574 row crop tractors and 2500 series A with three position straight axle, internation, cap, front wheel hub

2шт.

8

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

BEARING, inner cup, 2500 series a tractors and 574 row crop with three position straight axle, front wheel hub, cap

2шт.

9

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, inner cone, 574 row crop tractors and 2500 series A with three postion straight axle, international, front wheel, cap

2шт.

9

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

BEARING ASSY, inner cone, 2500 series A tractors and 574 row crop with three position straight axle, international, front wheel hub, cap

2шт.

10

406295R2

RING

wear, 574 row crop tractors and 2500 series A tractors with three postion straight axle, international, front wheel hub, bearings and cap

2шт.

10

67328C1

SEALING RING

RING, wear, 2500 series A tractors and 574 row crop with three position straigh axle, international, front wheel hub, bearings and cap

2шт.

11

405835R91

SEAL

front wheel dust, replaces 48539DA, 574 row crop tractors and 2500 series A with three positon straight axle, bearings and cap, hub

2шт.

11

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

front wheel dust, 2500 series A tractors and 574 row crop with three postion straight axle, international, bearings and cap

2шт.

65988C91

KIT

PACKAGE, front wheel bearing overhaul, 574 row crop tractors, consists for (1) cone 618023R91, (1) cup 618024R1, (1) cone 371882R91, (1) cup 371883R1, (1) seal 405835R91, (1) washer 369857R1, (1) pin 108643, (1) ring 406295R2

1шт.

70238C92

WHEEL BEARING KIT

PACKAGE, front wheel bearing overhaul, 2500 series A tractors, consists of (1) 399933C91, (1) cup 399934C1, (1) cone 536053R91, (1) cup 536054R1, (1) ring 67328C1, (1) seal 370254R91, (1) washer 3118706R1, (1) nut 427639, (1) pin 108643

1шт.
