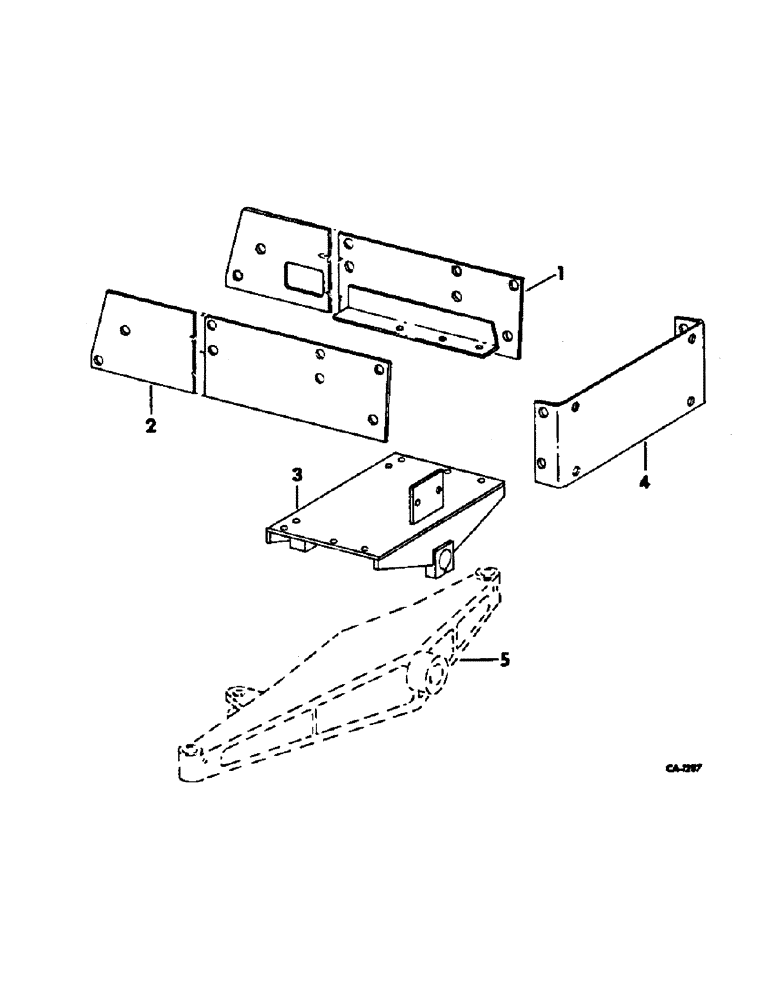

Запчасти Case IH 574 (14-08) - SUSPENSION, CAST I BEAM FRONT AXLE SADDLE MOUNTING, INTERNATIONAL 2500 SERIES A TRACTORS Suspension

1

535756R1

PLATE ASSY, side LH

1шт.

394424R1

WASHER, spacer

2шт.

2

535757R1

PLATE ASSY, side RH

1шт.

394424R1

WASHER, spacer

2шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

12шт.

3

535760R1

SADDLE ASSY, front axle

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

102637

NUT,1/2"-13, G5

6шт.

4

535766R1

PLATE, end

1шт.

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

SCREW, 3/4-10 x 1 hex-hd cap

4шт.

218443

NUT

3/4-10 hex. jam

4шт.

5

AXLE ASSY, front, refer to cast I beam front axle listing

1шт.
