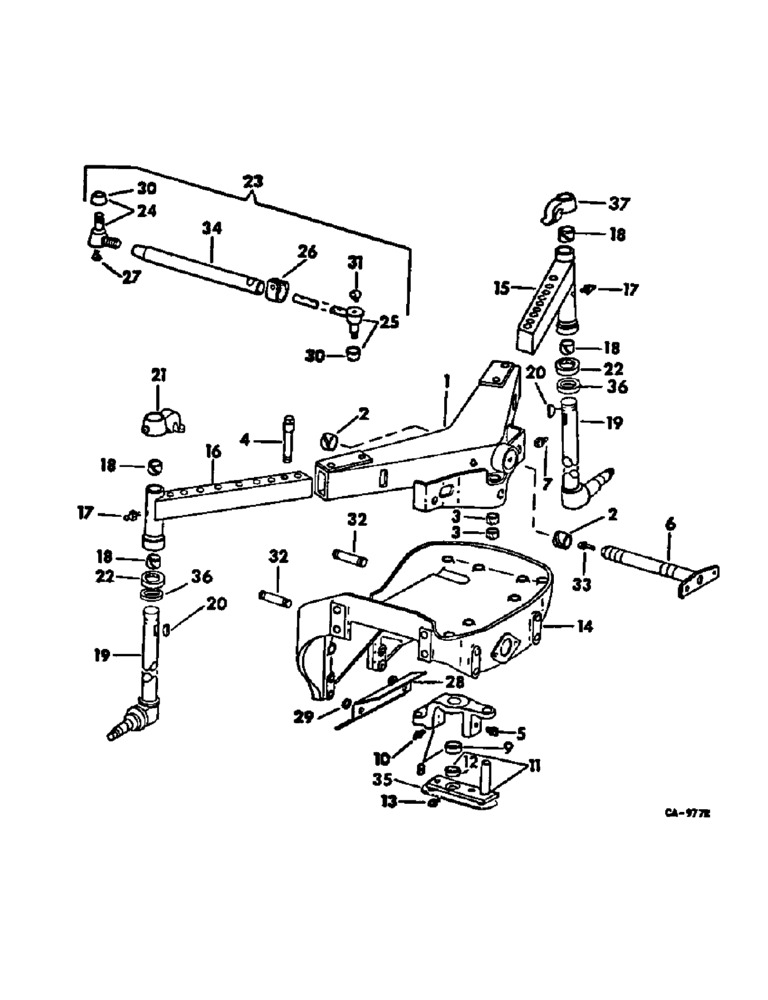

Запчасти Case IH 574 (14-04) - SUSPENSION, SWEPT BACK FRONT AXLE Suspension

.

SERVICE PARTS, adjustable front axle, 56 to 76 in. tread, Industrial Lo-Boy tractors, consists of all unmarked parts and those marked unit A

1шт.

.

SERVICE PARTS, adjustable front axle, 48 to 80 in. tread, standard tractors, consists of all unmarked parts and those marked unit B

1шт.

1

539158R92

NO LONGER SERVICED

AXLE ASSY, front, will work for 405564R91, consists of ref nos 2 and 3

1шт.

2

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

3

405574R1

BUSHING

support

2шт.

4

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

.

405576R1

NUT

front axle

4шт.

5

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 x 45 deg angle drive type

1шт.

6

539128R1

SHAFT ASSY.

SHAFT ASSY, front axle pivot, will work for pin 405577R1 and plate 405578R1

1шт.

.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

.

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 x 90 deg angle lub

1шт.

7

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

8

405585R11

ARM

ASSY, power steering center

1шт.

9

379748R1

BUSHING

1шт.

10

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive

1шт.

11

405580R11

BAR ASSY.

BAR ASSY, power steering cylinder

1шт.

.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

12

379748R1

BUSHING

1шт.

13

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str-lub

2шт.

14

405587R4

BOLSTER

front, diesel engine tractors

1шт.

14

405586R3

BOLSTER

front, gasoline engine tractors

1шт.

.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 hex-hd cap

8шт.

15

66701C91

EXTENSION

ASSY, front axle, LH, unit B, will work for 405712R12

1шт.

(P/N 66701C91) - 10.7 inches AND HAS 9 ADJUSTING HOLES. P/N 66711C91 HAS 5 ADJUSTING HOLES.

1шт.

15

66711C91

EXTENSION ASSY, front axle, LH, unit A, will work for 534279R92

1шт.

16

66702C91

EXTENSION

ASSY, front axle, RH, unit B, will work for 405713R12

1шт.

16

66712C91

EXTENSION ASSY, front axle, RH, unit A, will work for 534280R902

1шт.

17

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type str lub

2шт.

18

376099R1

BUSHING

4шт.

19

405840R12

KNUCKLE

ASSY, steering, unit B

2шт.

(P/N 405840R12) - 12.17 inches

1шт.

19

534288R92

KNUCKLE

ASSY, steering, unit A

2шт.

(P/N 534288R92) - 9.52 inches

1шт.

20

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

21

405837R1

ARM

steering knuckle RH

1шт.

.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

.

102637

NUT,1/2"-13, G5

1шт.

22

405831R91

BEARING

steering knuckle thrust

2шт.

23

ROD ASSY, tie, not serviced separtely, order component parts

2шт.

24

527658R91

BALL JOINT

END ASSY, RH

2шт.

24

527658R91GV

TIE-ROD

Value, Tie Rod End

2шт.

.

102648

SLOTTED NUT,9/16"-18, G5

2шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

.

390686R1

JAM NUT

11/16 hex. jam

1шт.

25

65082C91

END

ASSY, LH, replaces 527660R91

2шт.

.

102648

SLOTTED NUT,9/16"-18, G5

2шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

.

390686R1

JAM NUT

11/16-18 hex. jam

1шт.

26

43747D

CLAMP

2шт.

.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

7/16-20 x 1-3/4 hex-hd cap

2шт.

.

425-117

NUT,7/16"-20, G5

7/16 hex.

2шт.

.

9421096

LOCK WASHER,7/16"

Ext tooth 7/16"

2шт.

27

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

2шт.

28

534811R1

PROTECTION PLATE

BAFFLE, front bolster air, unit B

1шт.

.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap, gasoline engine tractors

2шт.

.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3/14 hex-hd cap, diesel engine tractors, Course Threads

2шт.

29

534813R1

SPACER

bolster air baffle, diesel engine tractors

2шт.

.

369936R1

WASHER

bolster air baffle

2шт.

30

358900R1

SEAL

COVER, dust

4шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Taper, Straight 1/4"-28 NPT x .54" lg

2шт.

32

396627R1

STUD

front crankcase

2шт.

.

425-1110

NUT,5/8"-18, G5

2шт.

33

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

34

527659R2

TUBE

2шт.

35

67976C1

PLATE, LOCKING

STRIP, straight center arm bolt lock, replaces washers 103323

1шт.

36

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

37

405836R1

ARM

steering knuckle LH

1шт.

.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

.

102637

NUT,1/2"-13, G5

1шт.
